Modulator Unit: Removal

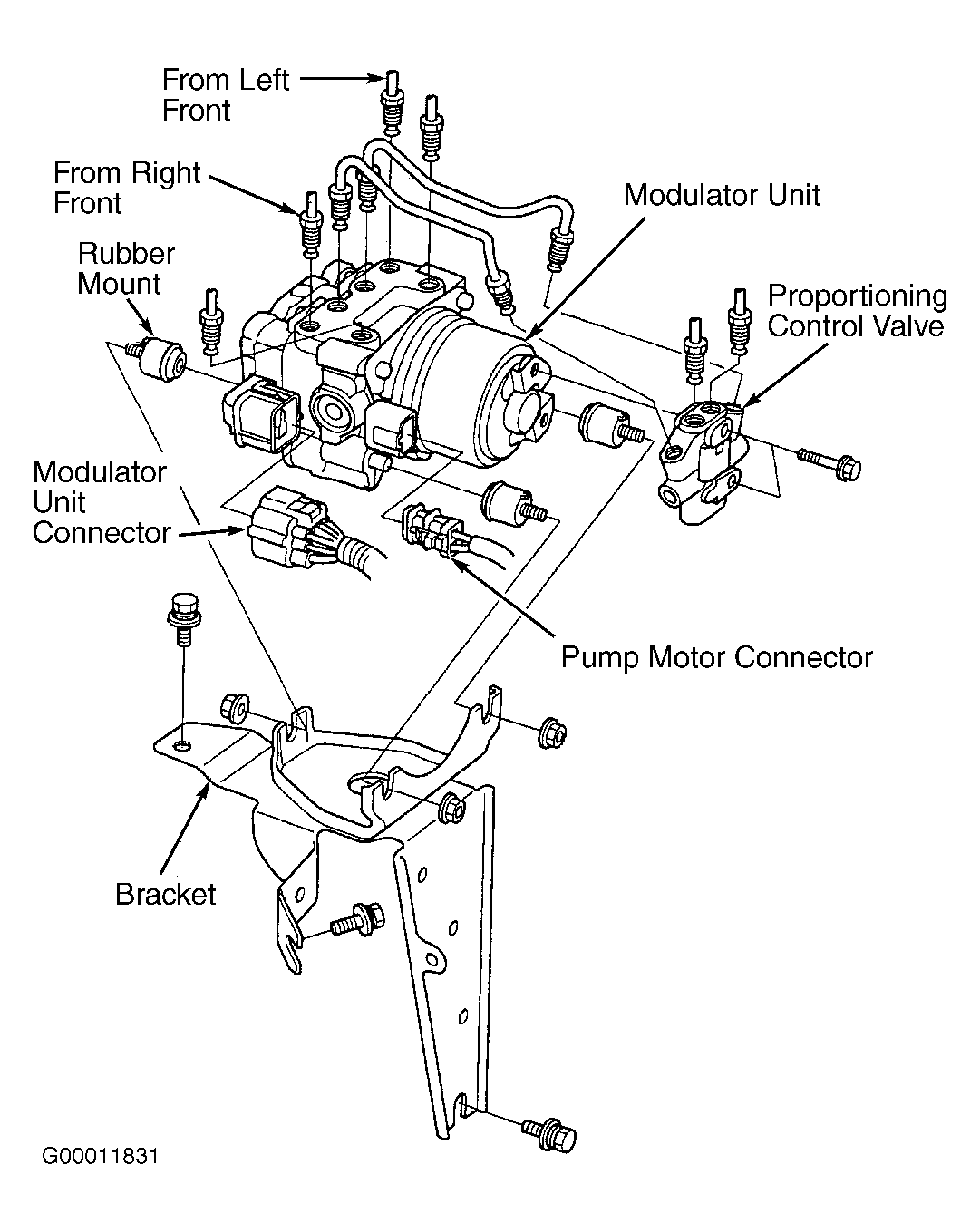

Disconnect 10-pin connector from modulator unit. Disconnect 2-pin connector from ABS pump motor. Mark brakelines for reassembly. Disconnect all brakelines. Remove proportioning control valve. Remove modulator unit from bracket. See Figure.
