Shift Cable Adjustment

  1. Shift the transmission into the [R  ] position.
  2. Remove the console panel. See Console Panel.
  3. Remove the nut securing the shift cable end (A), then separate the end from the shift lever assembly.

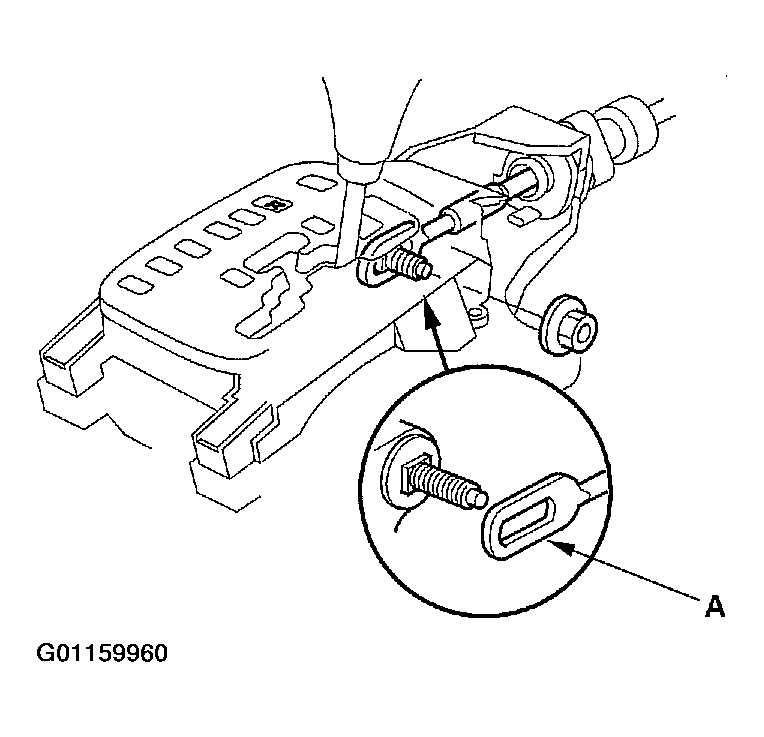

    Fig 1: Removing Nut Securing Shift Cable End
    G01159960
  4. Rotate the socket holder (A) on the shift cable (B) a quarter turn; the tab (C) on the socket holder will be in the opening of the shift lever bracket base (D). Then slide the holder to remove the shift cable from the shift lever bracket base (D). Do not remove the shift cable by twisting the shift cable guide (E) and damper (F).

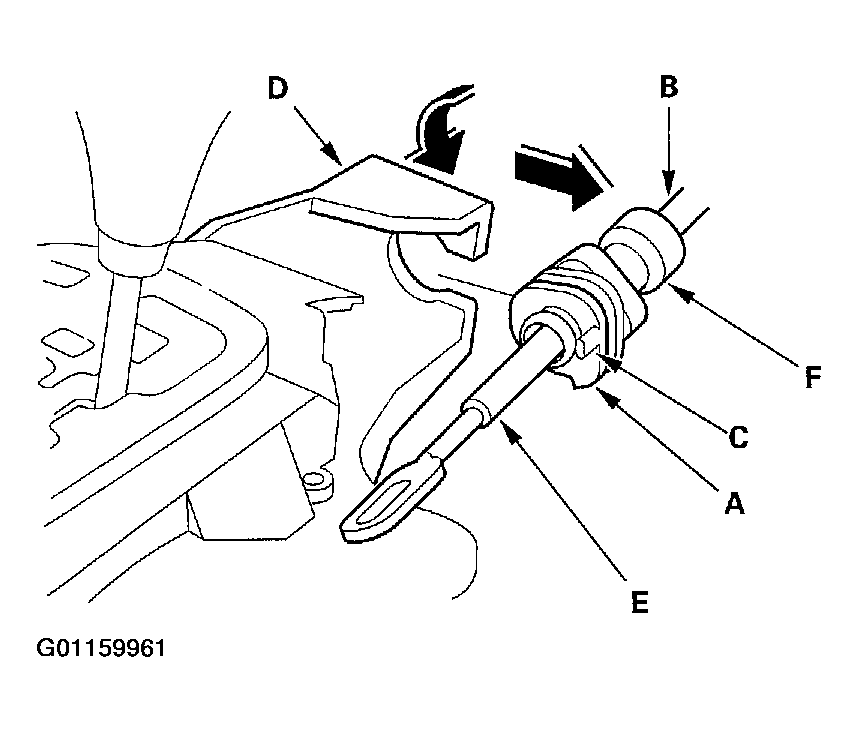

    Fig 2: Rotating Socket Holder
    G01159961
  5. Push the shift cable (A) until it stops, then release your hand. Pull the shift cable back one step so that the shift position is in [R  ]. Do not push and pull the shift cable by holding the shift cable guide (B).
    Fig 3: Placing Shift Cable In "R" Position
    G01159962
  6. Turn the ignition switch ON (II), and verify that the [R  ] position indicator comes on.
  7. Turn the ignition switch OFF.
  8. Insert a 6.0 mm (0.24 in.) pin (A) into the positioning hole (B) on the shift lever bracket base through the positioning hole on the shift lever assembly. The shift lever is secured in the [R  ] position.

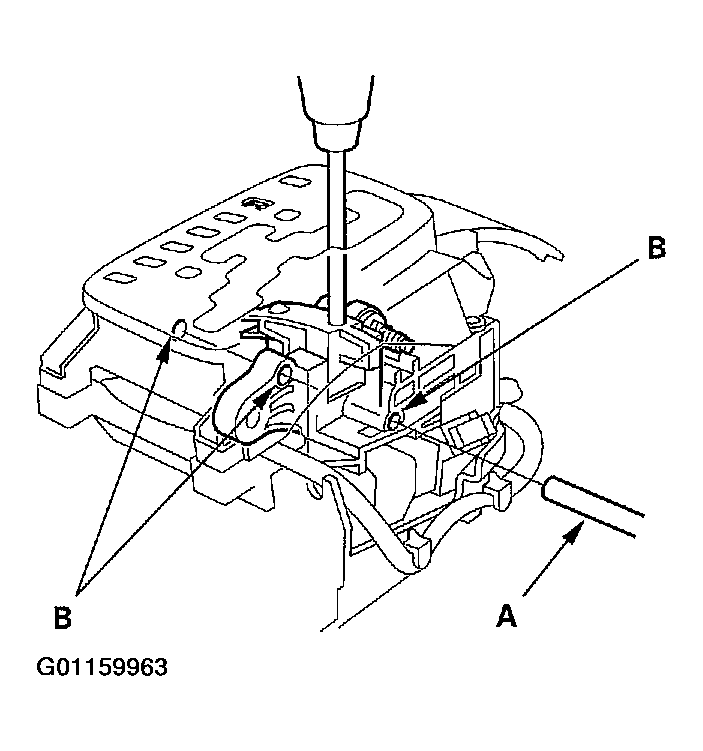

    Fig 4: Locating Shift Lever Positioning Holes
    G01159963
  9. Rotate the socket holder (A) on the shift cable (B) toward the shift lever a quarter turn, then slide the holder into the shift lever bracket base (C). Install the shift cable end (D) over the mounting stud (E) by aligning its square hole (F) with the square fitting (G) at the bottom of the stud, and rotate the holder back a quarter turn to secure the shift cable.
    NOTE: Do not install the shift cable by twisting the shift cable guide (H) and damper (I).

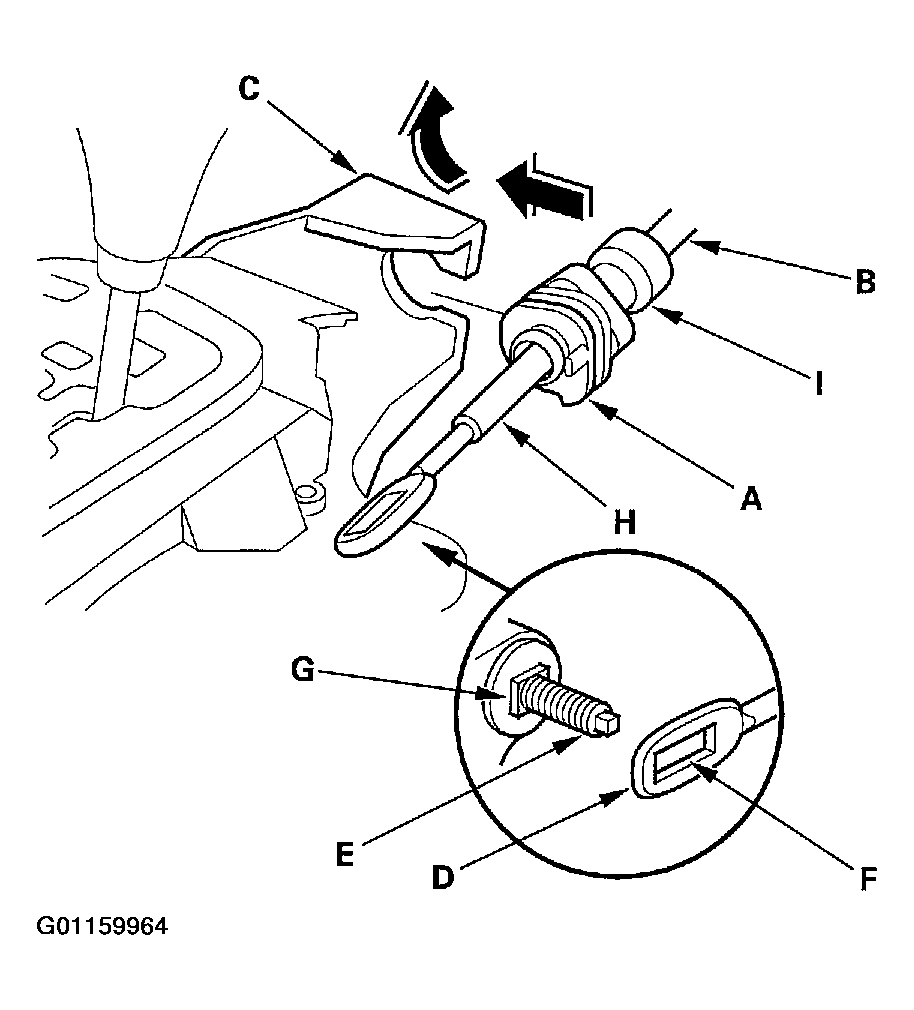

    Fig 5: Installing Shift Cable
    G01159964
  10. Verify that the shift cable end (A) is properly installed on the mounting stud (B).
    Fig 6: Identifying Installed Shift Cable
    G01159965
  11. If improperly installed, remove the shift cable from the shift lever bracket base, and reinstall the shift cable. Do not install the shift cable end on the mounting stud while the shift cable is on the shift cable bracket base.
  12. Install and tighten the nut.
    Fig 7: Installing Shift Cable Nut
    G01159966
  13. Remove the 6.0 mm (0.24 in.) pin that was installed to hold the shift lever.
  14. Move the shift lever to each gear, and verify that the A/T gear position indicator follows the A/T gear position switch.
  15. Push the shift lock release, and verify that the shift lever releases.
