General Operation

With the lock-up clutch on, fluid in the chamber between the torque converter cover and the lock-up piston is drained off, and the converter fluid exerts pressure through the piston against the torque converter cover. As a result, the converter turbine is locked to the converter cover. The effect is to bypass the converter, placing the vehicle in direct drive.

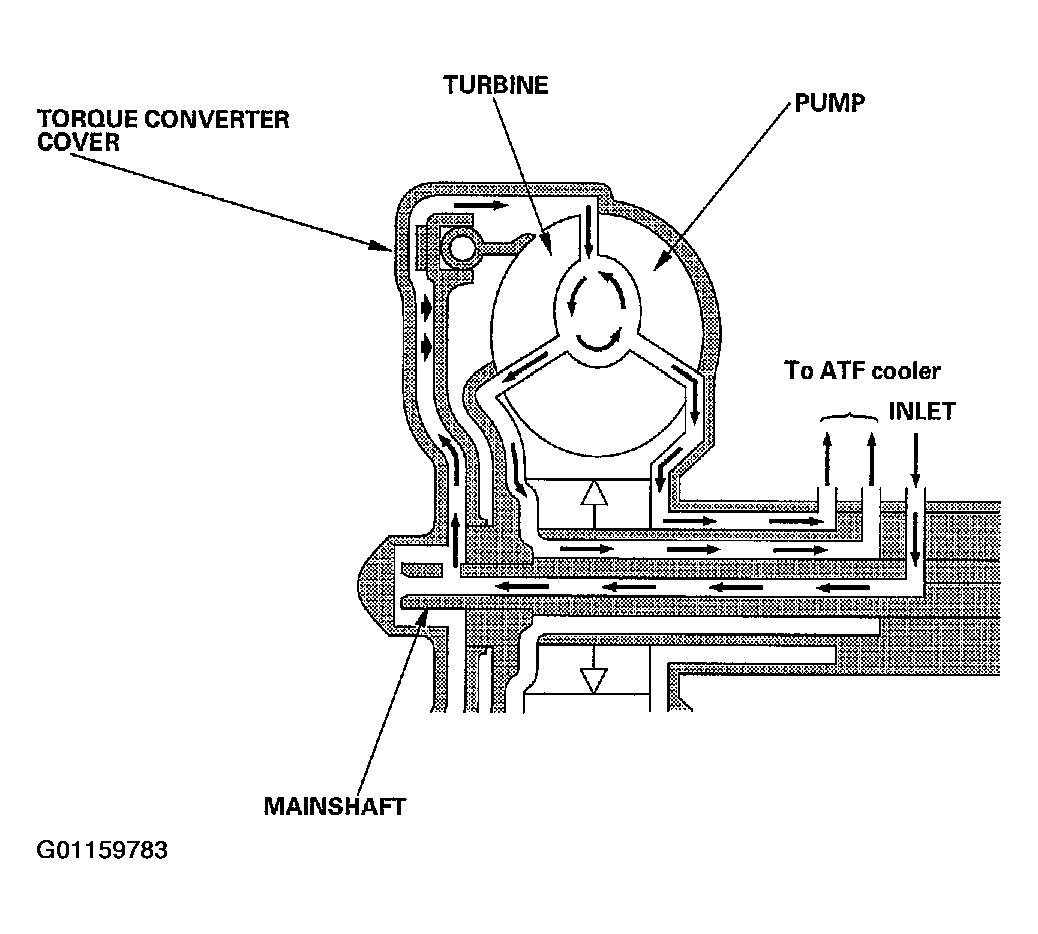

Fig 1: Identifying Lock-Up System Operation (Clutch On) (1 of 2)

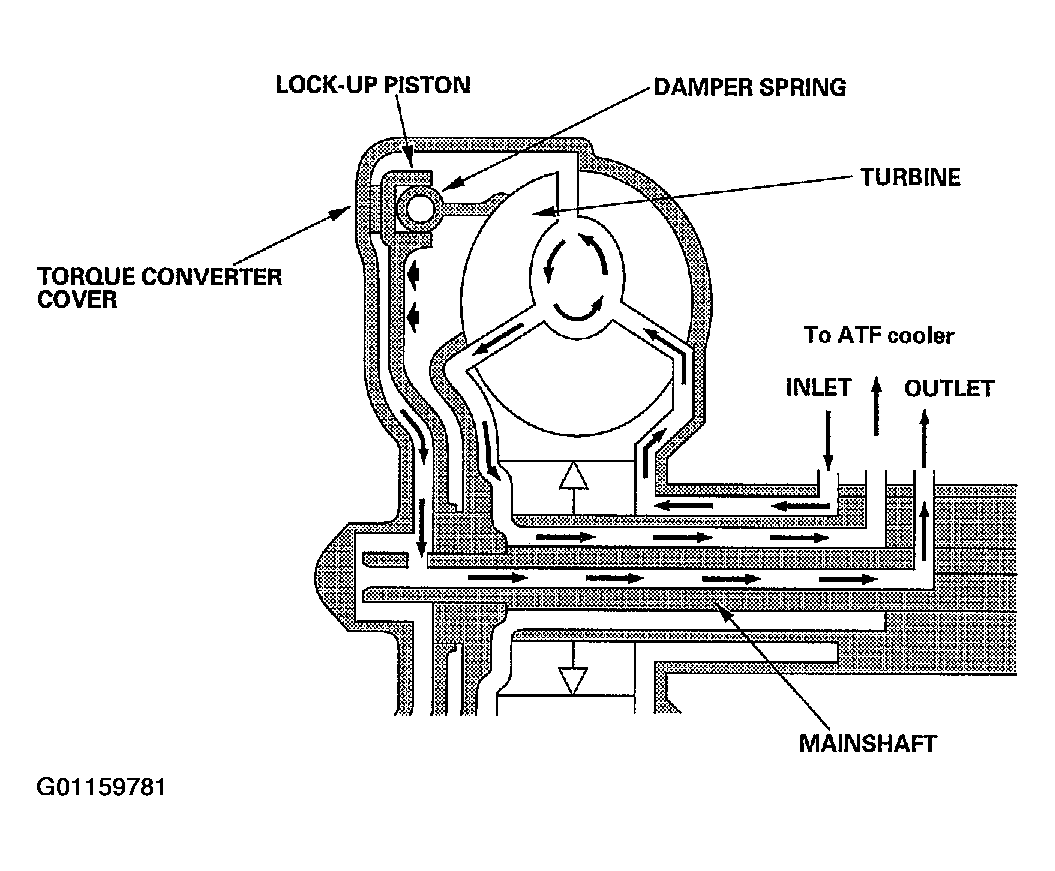

Fig 2: Identifying Lock-Up System Operation (Clutch On) (2 of 2)

With the lock-up clutch off, fluid flows in the reverse of CLUTCH ON. As a result, the lock-up piston moves away from the converter cover, and torque converter lock-up is released.
