Circuit Diagram

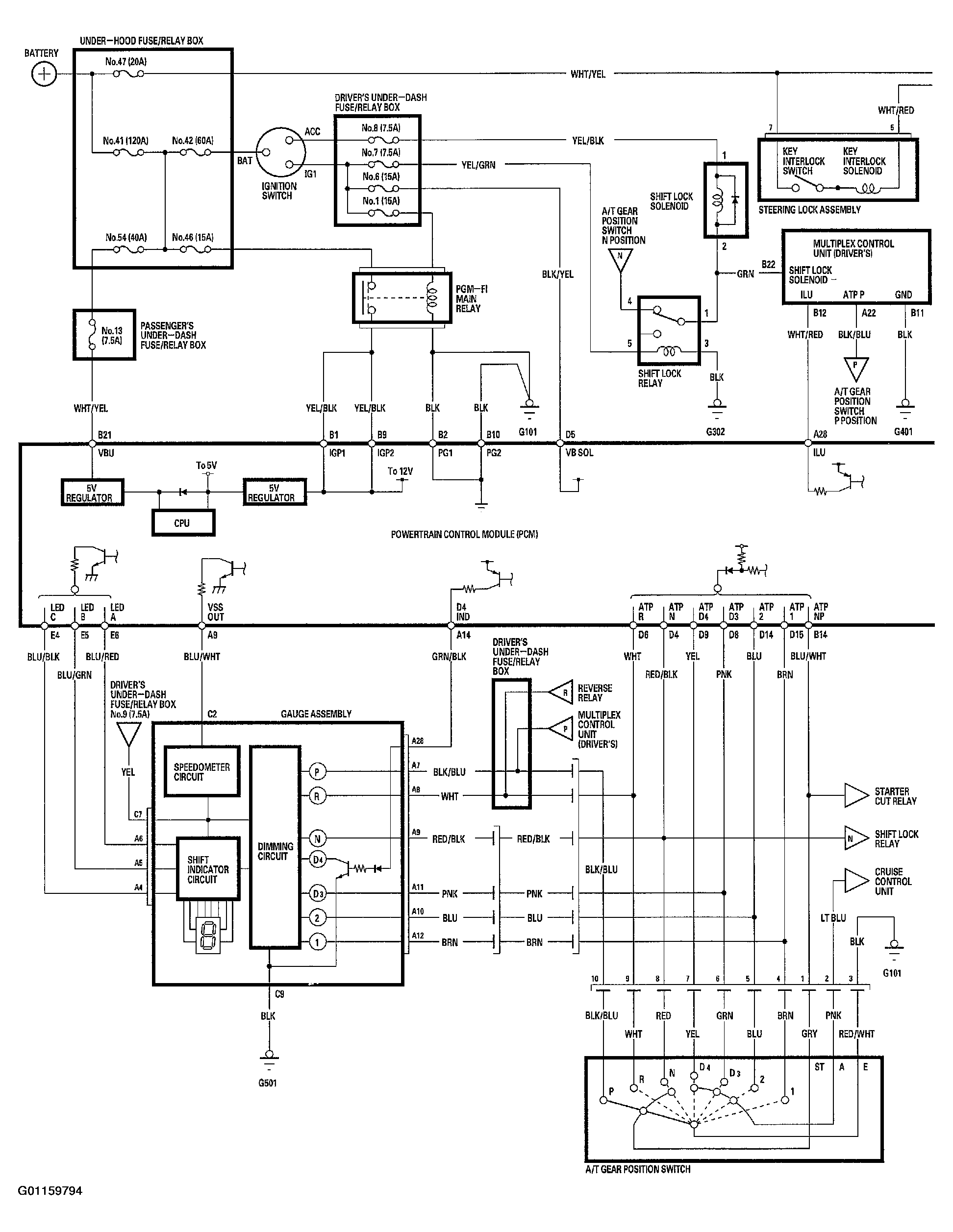

Fig 1: System Description Circuit Diagram (1 of 2)

G01159794

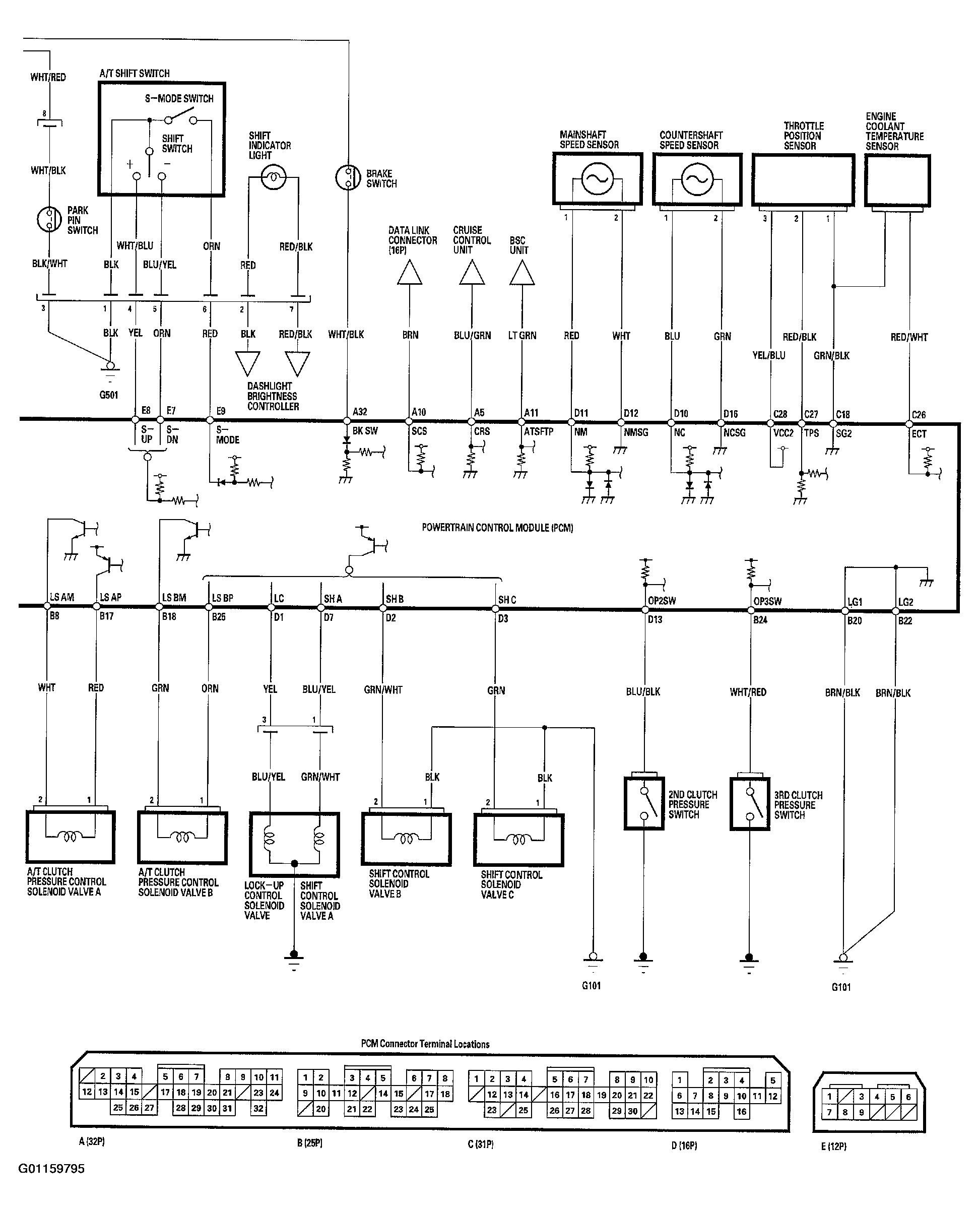

Fig 2: System Description Circuit Diagram (2 of 2)

G01159795
