Home >> Acura >> 1999 >> 3.2TL >> Repair and Diagnosis >> Transmission >> Automatic Trans >> A/T Interlock System >> Circuit Diagram

Circuit Diagram

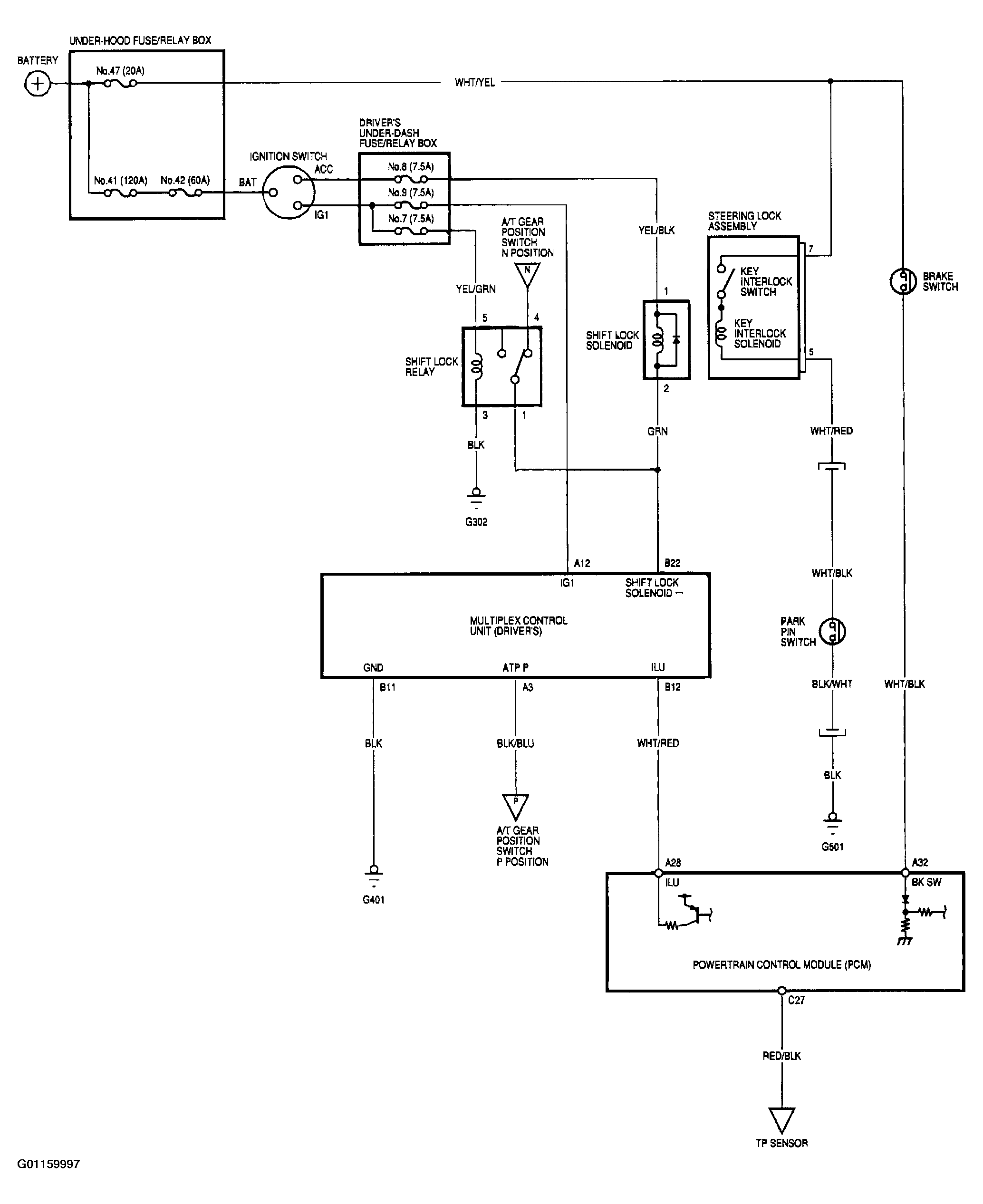

Fig 1: Identifying A/T Interlock System Circuit Diagram

G01159997
