Home >> Acura >> 1999 >> 3.2TL >> Repair and Diagnosis (Single Page) >> Transmission >> Automatic Trans >> Diagnosis >> System Description >> Power Flow >> Notes

Power Flow: Notes

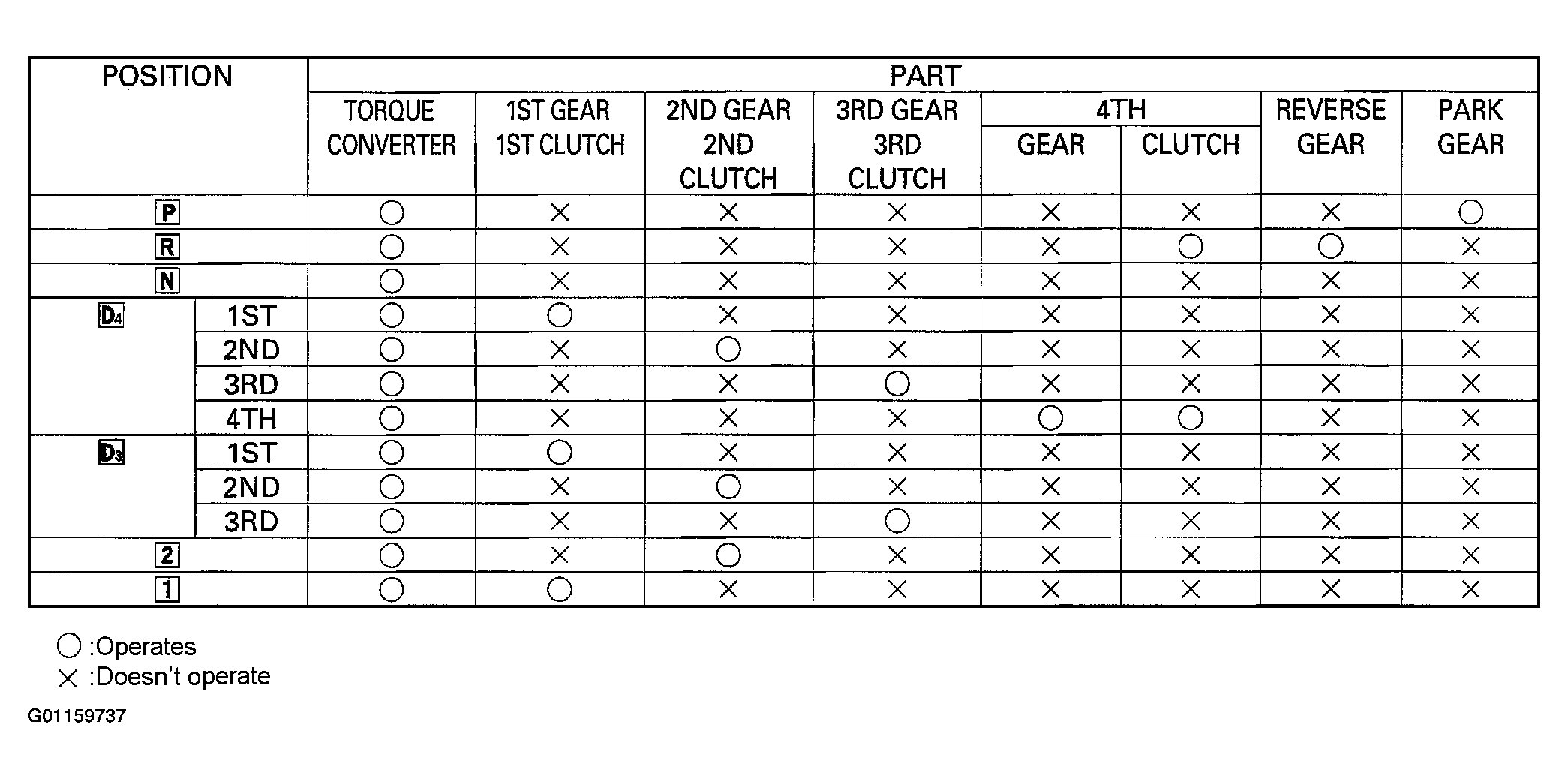

Fig 1: Identifying Power Flow Chart

G01159737
