Driver's Power Seat Switch Test

Remove driver's power seat switch. Disconnect driver's power seat switch connectors. Using an ohmmeter, ensure switch continuity is as specified. See DRIVER'S POWER SEAT SWITCH CONTINUITY (2.3CL & 3.0CL) or DRIVER'S POWER SEAT SWITCH CONTINUITY (3.2TL) table. See Fig 1 or Fig 2 . If switch fails test, replace faulty switch.

DRIVER'S POWER SEAT SWITCH CONTINUITY (2.3CL & 3.0CL)

Position

Terminals

Slide Switch

Forward

A6 & B5

Backward

A6 & B1

Recline Switch (3.0CL) ⁽¹⁾

Forward

A2 & A3

Backward

A2 & A4

Front Up-Down Switch

A6 & B3

Down

A6 & B4

Rear Up-Down Switch

A2 & B2

Down

A2 & B6

⁽¹⁾	2.3CL power seat does not have recline function.

DRIVER'S POWER SEAT SWITCH CONTINUITY (3.2TL)

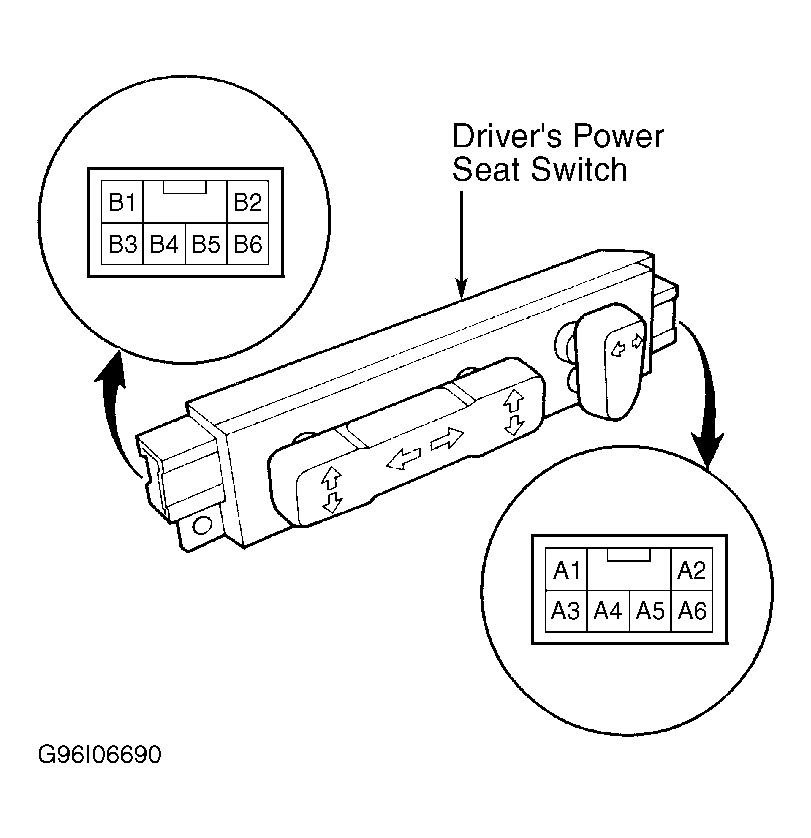

Fig 1: Identifying Driver's Power Seat Switch Terminals (2.3CL & 3.0CL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Identifying Driver's Power Seat Switch Terminals (3.2TL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
