2.3CL & 3.0CL

Remove cover panel and disconnect power mirror motor 8-pin connector. See Fig 1. Using jumper wires, check motor operation by applying power and ground as specified. See POWER MIRROR MOTOR TEST (2.3CL & 3.0CL) table. If motor does not function as specified, replace motor assembly.

POWER MIRROR MOTOR TEST (2.3CL & 3.0CL)

Application & Mirror Movement

⁽¹⁾ Battery Connection (+) & (-)

Tilt

8 & 7

Down

7 & 8

Swing

Left

7 & 6

Right

6 & 7

⁽¹⁾	Connect battery + and - terminals to indicated terminal.

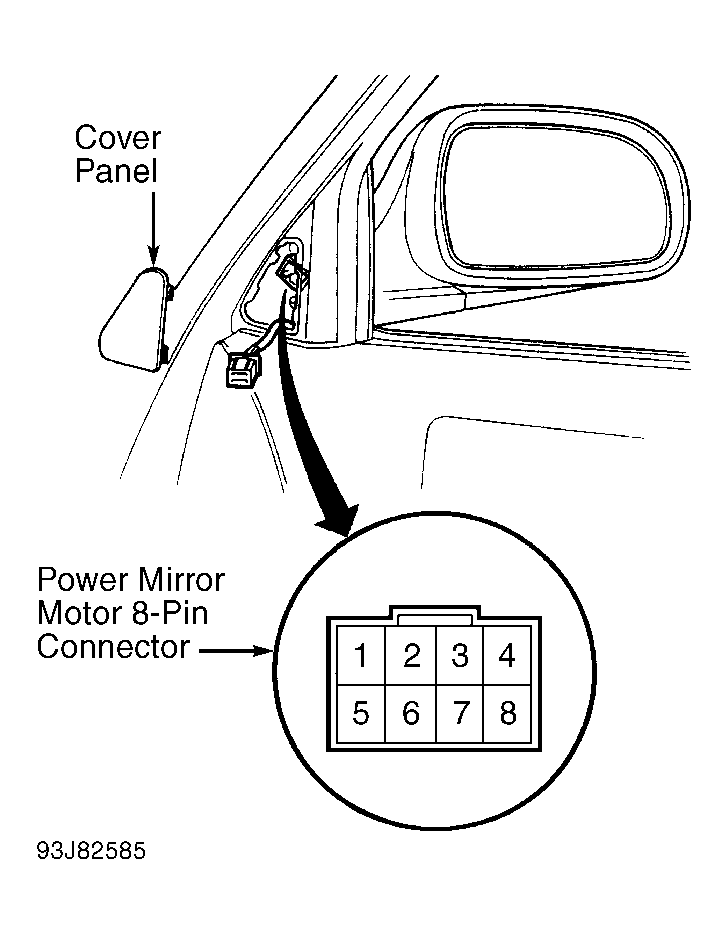

Fig 1: Power Mirror Motor Terminals (2.3CL & 3.0CL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
