Component Locations: Index

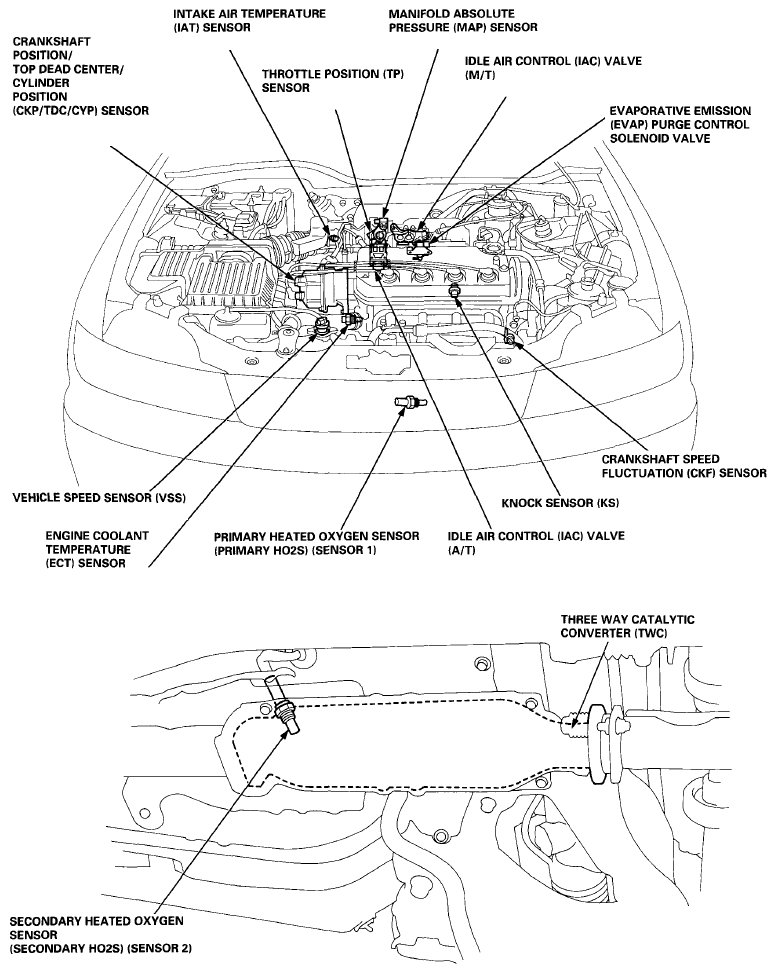

Fig 1: Identifying Component Locations (1 Of 3)
G06290269Courtesy of AMERICAN HONDA MOTOR CO., INC.

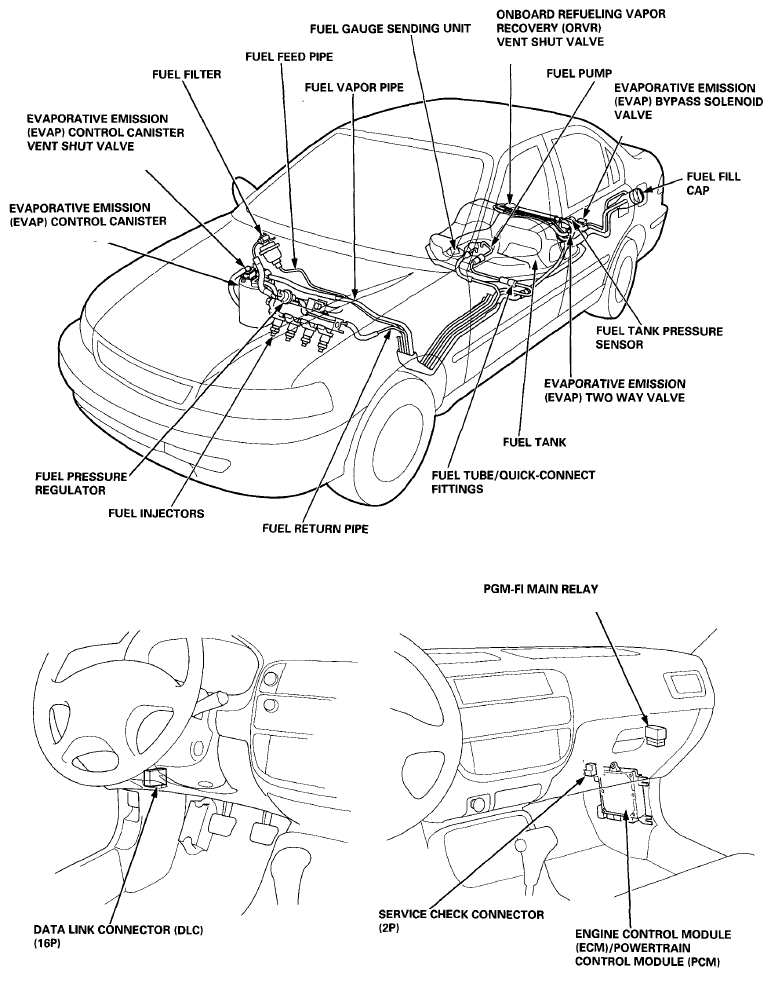

Fig 2: Identifying Component Locations (2 Of 3)
G06290270Courtesy of AMERICAN HONDA MOTOR CO., INC.

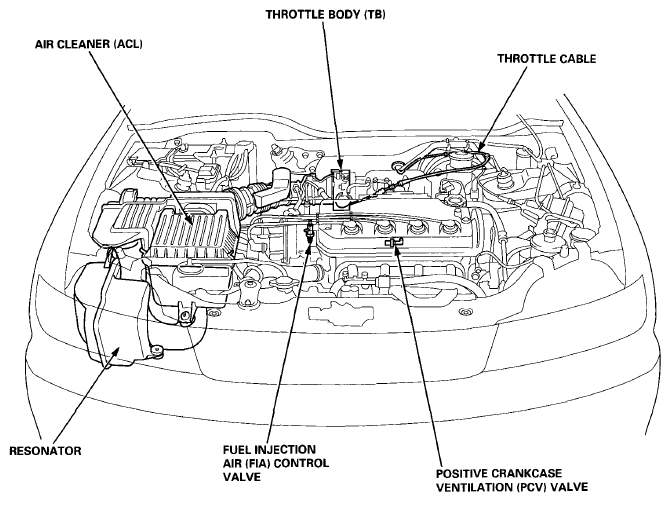

Fig 3: Identifying Component Locations (3 Of 3)
G06290271Courtesy of AMERICAN HONDA MOTOR CO., INC.
