Section 12 (Rear Suspension): Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2000 Acura Integra, 2000 Acura 3.5RL, 2000 Acura 3.2TL, 1999 Acura Integra, and 1999 Acura 3.5RL. However, it is still accessible from the selected car via links, so may be relevant.

All models use an independent control arm suspension system. Suspension consists of a vertically mounted strut and coil spring connected to a knuckle/spindle assembly, upper control arm, one or 2 lower control arms, trailing arm, and a stabilizer bar. See Fig 1, Fig 2 or Fig 3 .

Fig 1: Exploded View Of Rear Suspension (Integra)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

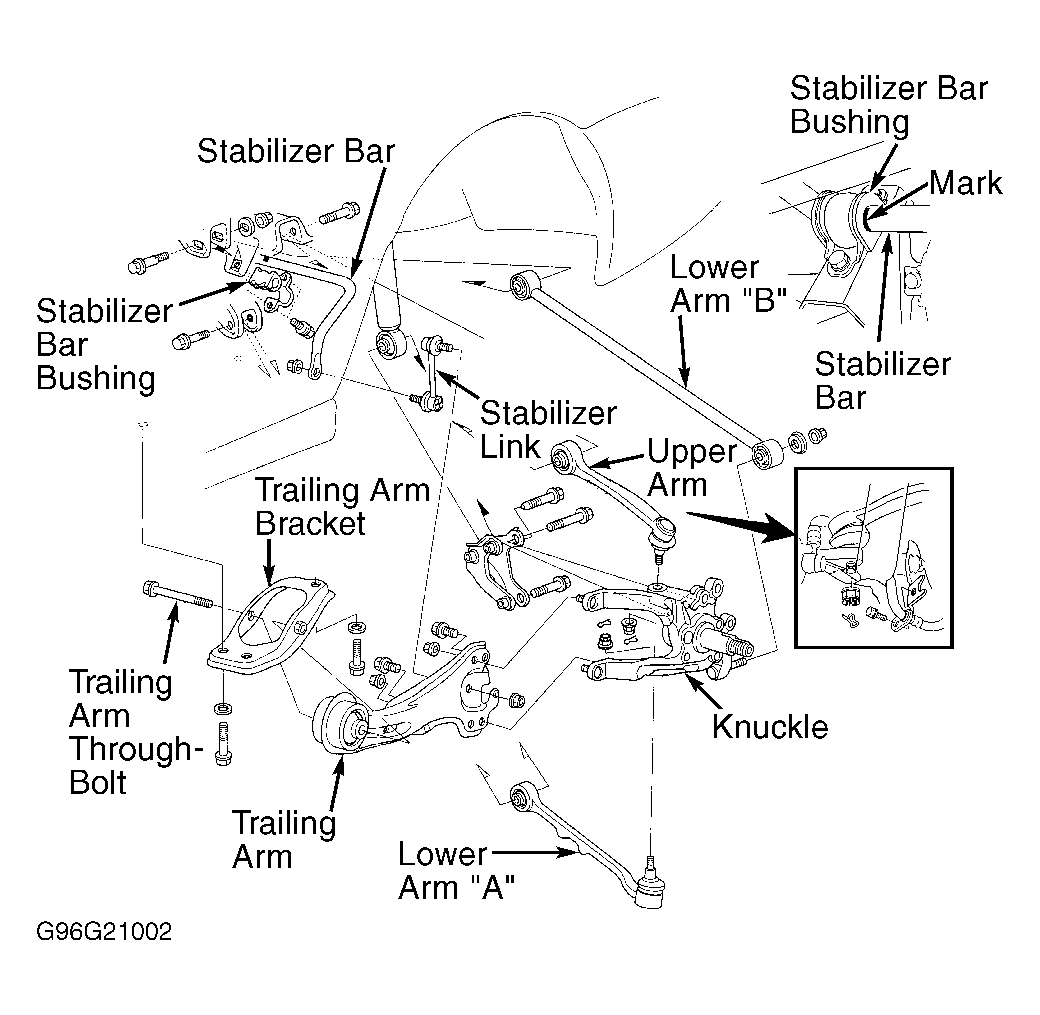

Fig 2: Exploded View Of Rear Suspension (3.2TL Shown; 2.3CL & 3.0CL Are Similar)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Exploded View Of Rear Suspension (3.5RL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
