Section 11 (Front Suspension): Description
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2000 Acura Integra, 2000 Acura 3.5RL, 1999 Acura Integra, 1999 Acura 3.5RL, and 1999 Acura 3.0CL. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on 1999 SLX front suspension, refer to FRONT - TROOPER article in Isuzu.
CAUTION:
Use extreme care when working around Supplemental Restraint System (SRS) wiring and components at front fenderwells. All SRS wiring harnesses and connectors are color-coded Yellow. DO NOT damage this wiring.

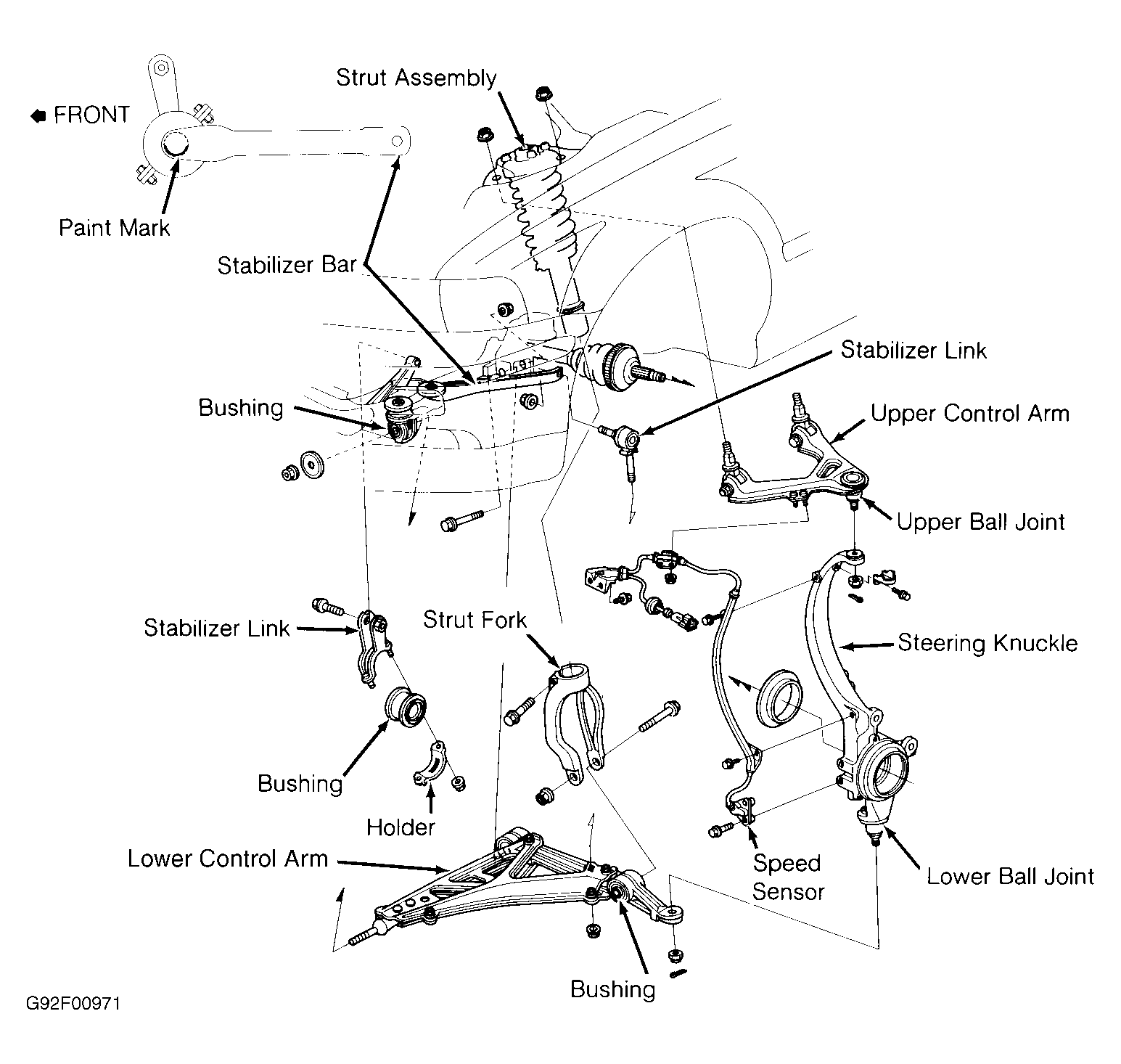

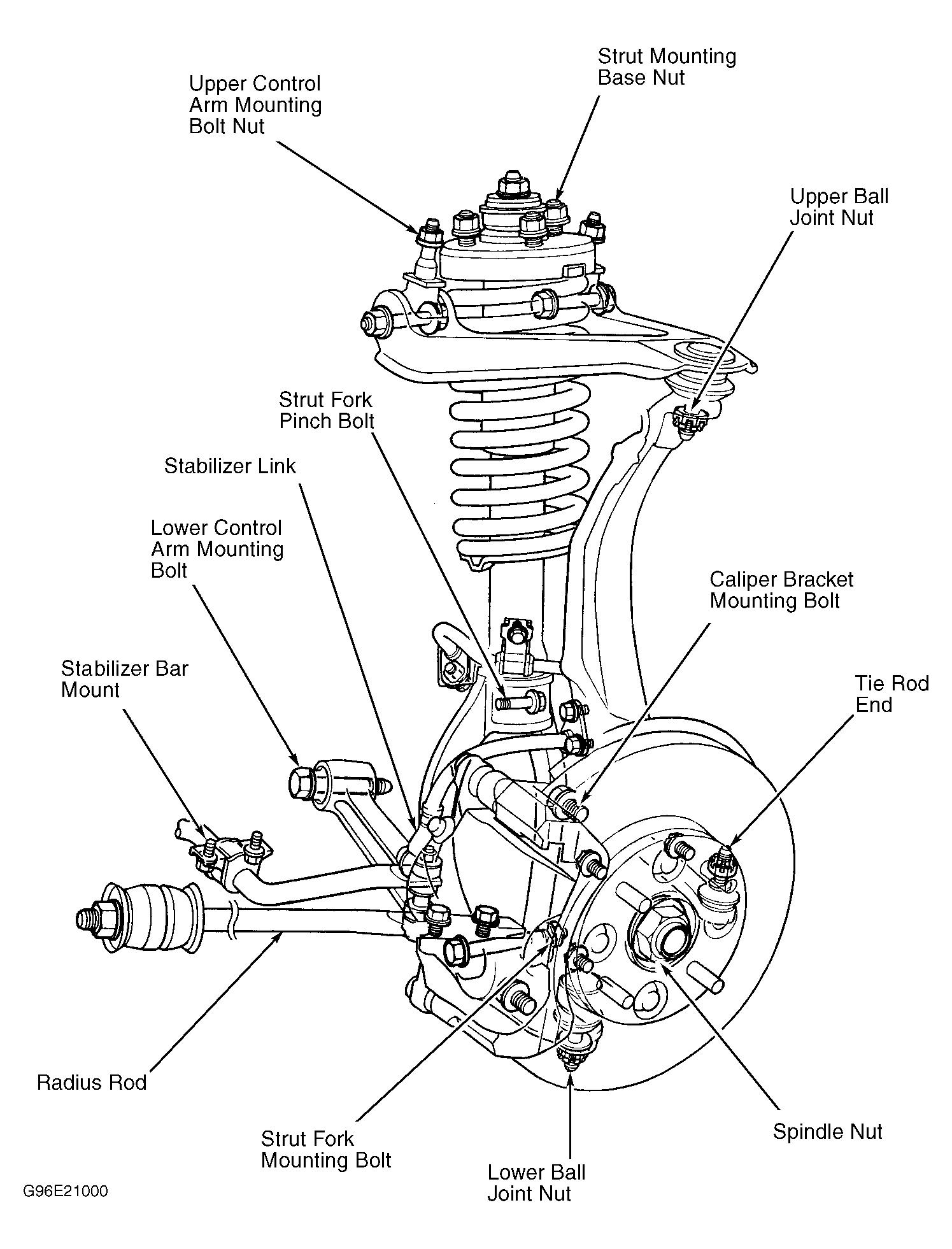

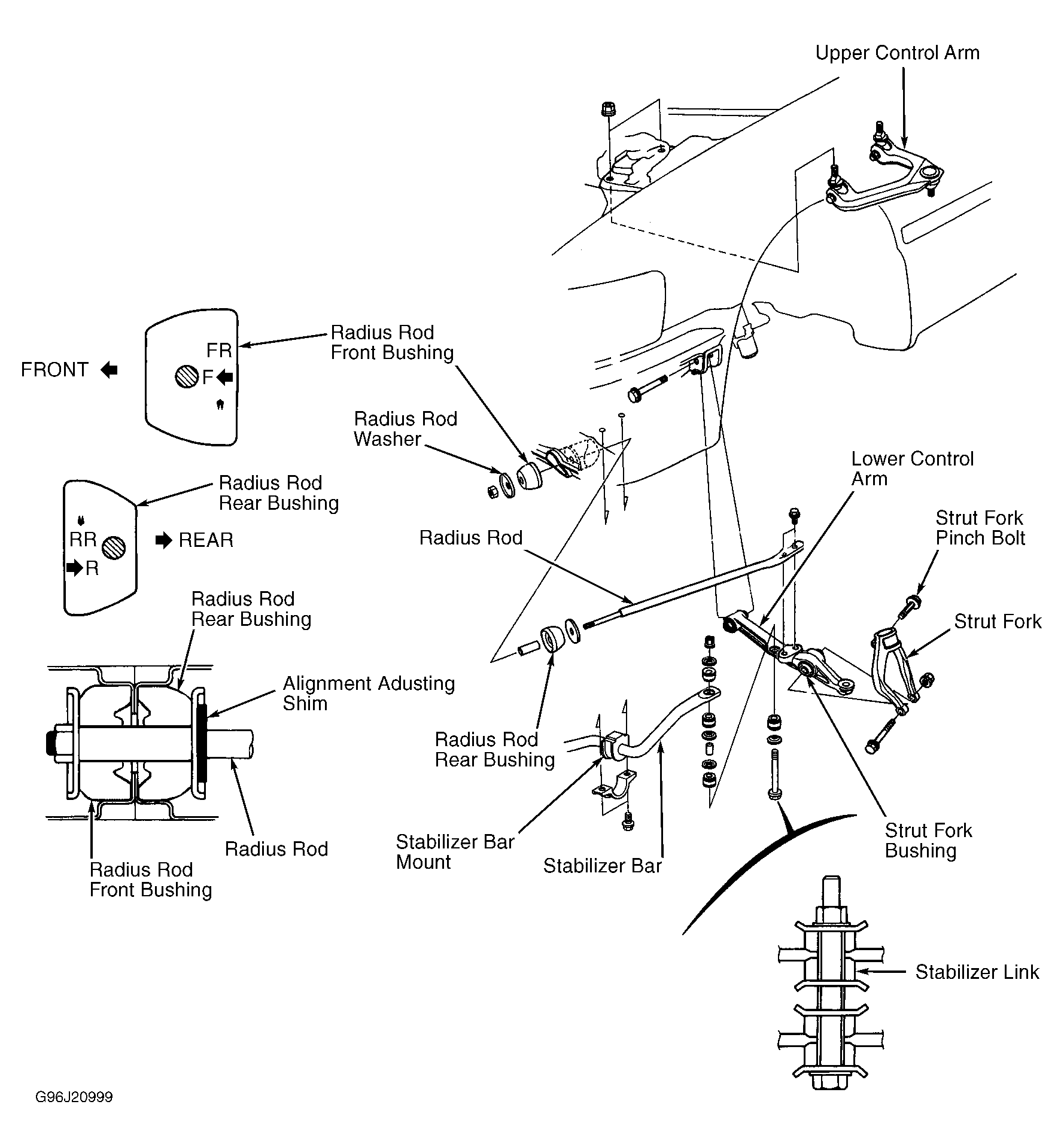

All models use independent wishbone MacPherson strut front suspension. Vertically mounted strut assembly is attached to lower control arm by a fork assembly. See Fig 1, Fig 2, Fig 3, Fig 4 or Fig 5 . Steering knuckle is attached to upper and lower control arms by ball joints. A stabilizer bar and radius rod (if equipped) are attached to the lower control arm.
