A/C Clutch Relay (3.5RL)

Relay is located in relay block, at right rear of engine compartment. Remove relay. Check continuity between terminals "A" and "B". See Fig 3. If continuity exists, replace relay. Using fused jumper wires, connect 12-volt battery power and ground to terminals "C" and "D". Continuity should exist between terminals "A" and "B". If continuity does not exist, replace relay.

Fig 1: Identifying A/C Clutch Relay Terminals (Integra)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Identifying A/C Clutch Relay Terminals (Except Integra & 3.5RL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

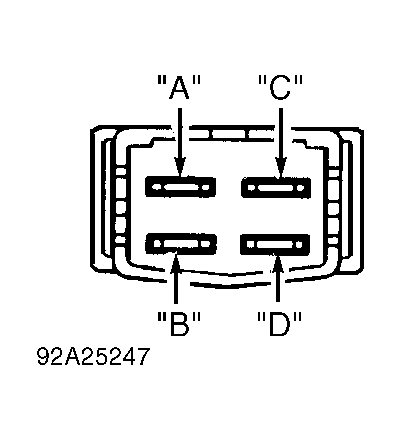

Fig 3: Identifying A/C Clutch Relay Terminals (3.5RL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
