Removal & Installation: Starter: 2.5TL

1. Disconnect negative battery cable first, then positive battery cable. Remove 2 bolts and rear intake manifold bracket. See Fig 1.
2. Disconnect starter cable from terminal "B" on the solenoid then disconnect Black/White wire from terminal "S". Remove 2 bolts attaching starter and remove starter.
3. To install, reverse removal procedure. Ensure crimped side of starter cable ring terminal is facing out. See Fig 2. Enter activation code to reset anti-theft radio.

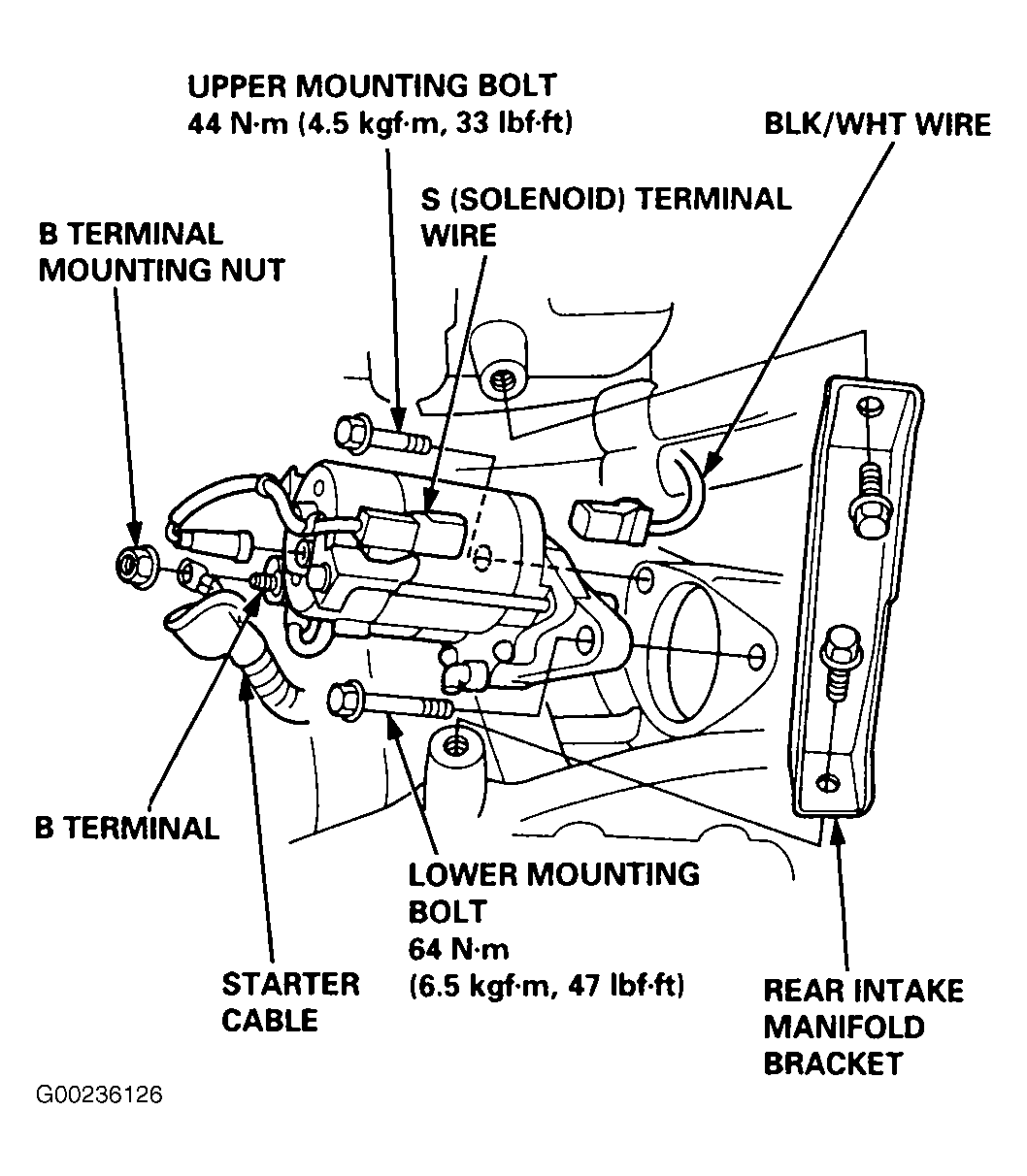

Fig 1: Removing & Installing Starter (2.5TL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Connecting Starter Cable (2.5TL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
