A/T Gear Position Indicator
- Turn ignition off. Remove instrument panel gauge assembly from instrument panel. Disconnect 22-pin and 30-pin harness connectors from rear of instrument panel gauge assembly.

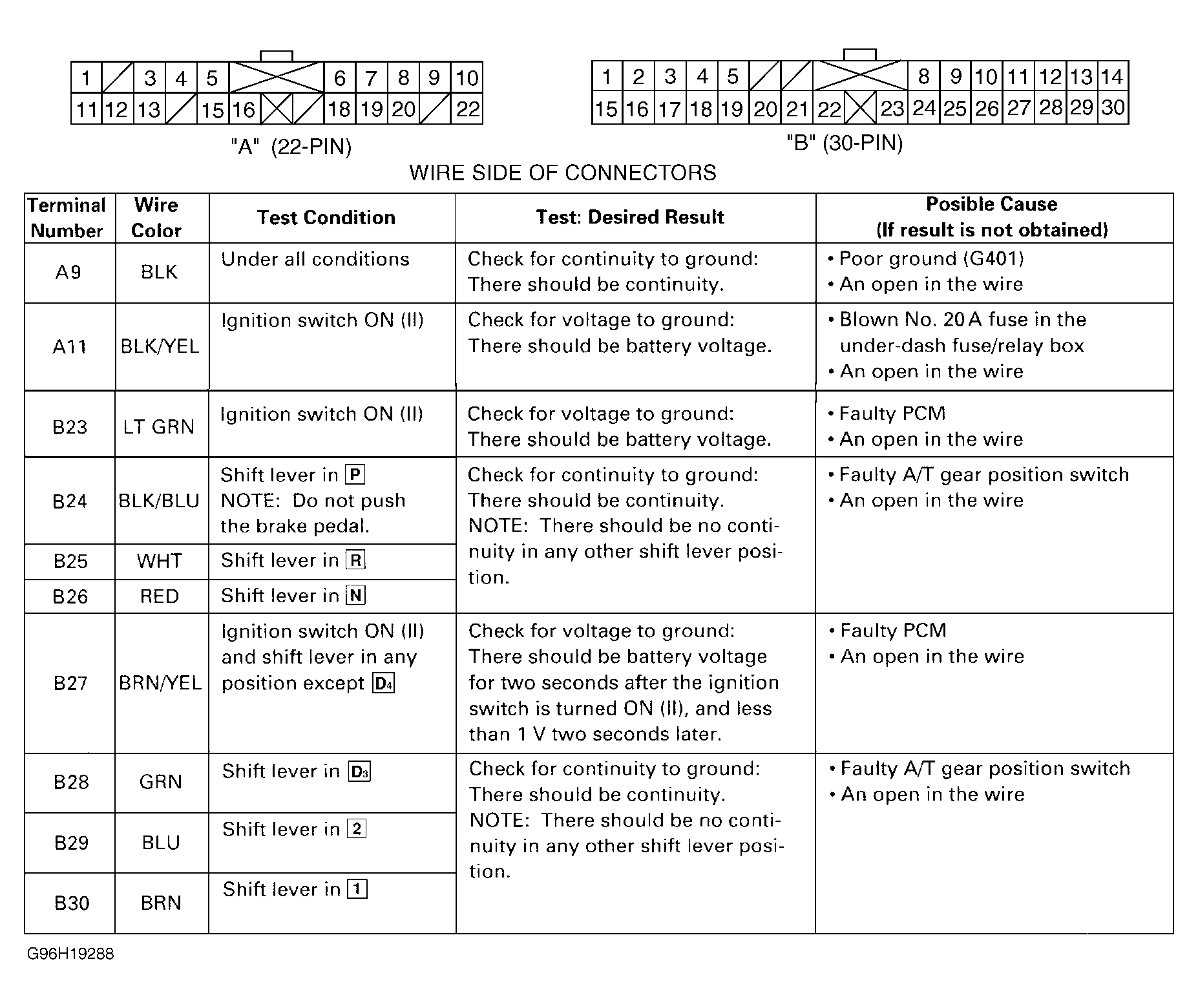

- Inspect and repair as necessary any loose, corroded or bent terminals. Check for voltage and continuity at harness connectors as specified. See Fig 1
. Repair as necessary. If all tests are okay and A/T gear position indicator is defective, replace printed circuit board.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
