Clearing Trouble Codes

NOTE: Trouble codes can be cleared with Honda PGM Tester or with SCS Service Connector (07PAZ-0010100).

Connect SCS Service Connector (07PAZ-0010100) or Honda PGM Tester to 2-pin service check connector located under glove box. See Fig 1 . Depress and hold brake pedal down while turning ignition switch to ON position. After ABS indicator light goes out, release brake pedal. After ABS indicator light comes back on, depress brake pedal again. After ABS indicator light goes out, release brake pedal again. After a few seconds, ABS indicator light will blink twice indicating code is cleared.

NOTE: If ABS indicator light does not blink twice or stays on after starting vehicle, repeat procedure.

Fig 1: Locating 2-Pin Service Check Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Identifying Diagnostic Trouble Codes (DTCs)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

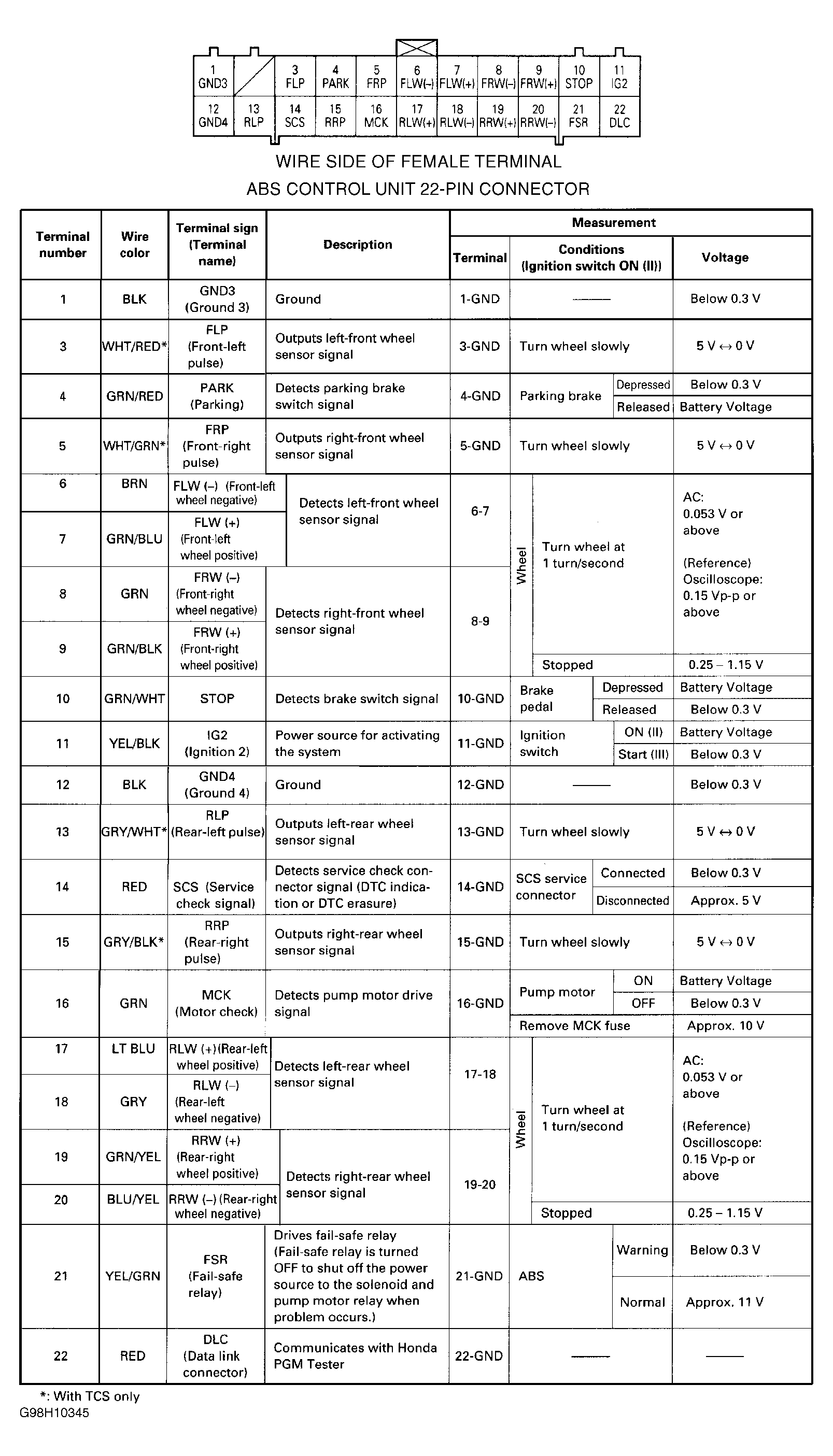

Fig 3: ABS Control Unit 22-Pin Connector Terminal Identification

Courtesy of AMERICAN HONDA MOTOR CO., INC.

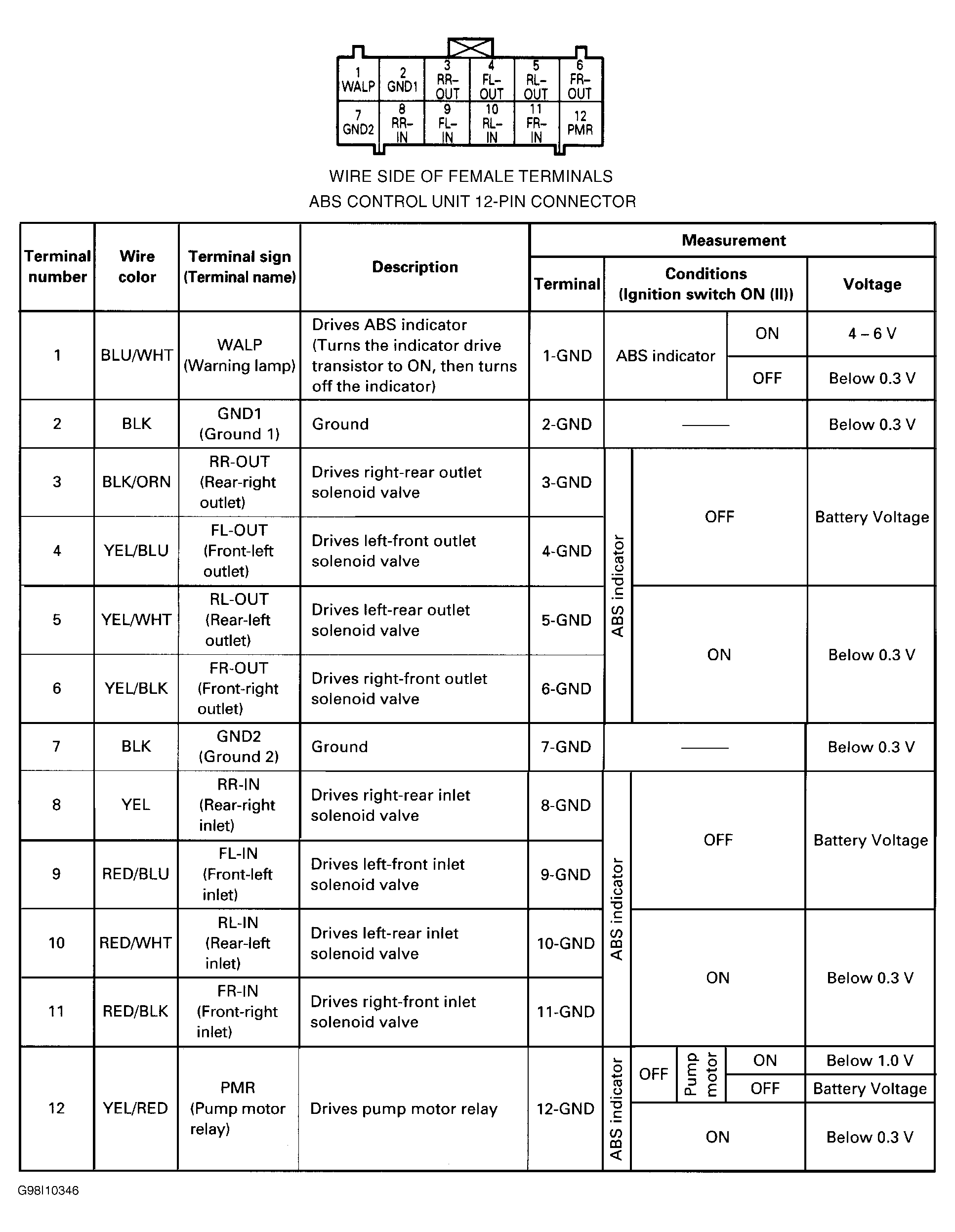

Fig 4: ABS Control Unit 12-Pin Connector Terminal Identification

Courtesy of AMERICAN HONDA MOTOR CO., INC.
