Actuator Cable
WARNING: This page is about a different car, the 1997 Acura 3.5RL. However, it is still accessible from the selected car via links, so may be relevant.
- Ensure actuator cable operates smoothly without binding or sticking. Put transmission in Neutral or Park. Start engine. Hold engine speed to 3000 RPM with no load until radiator cooling fan operates. Allow engine to idle.

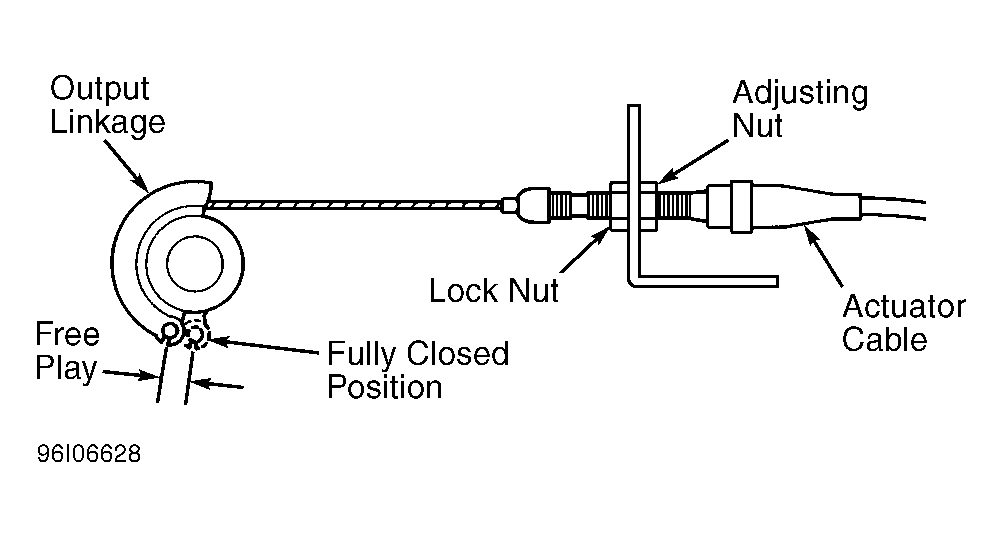

- Rotate output linkage until engine speed begins to increase. Measure output linkage free play from throttle fully closed position to engine speed increase position. See Fig 1 . Free play should be 0.18-0.22" (4.5-5.5 mm). If free play is not as specified, go to next step.
- Loosen lock nut and adjusting nut. Move actuator cable until engine speed begins to increase. Tighten lock nut and adjusting nut. Loosen adjusting nut until it is 0.18-0.22" (4.5-5.5 mm) from bracket. Pull actuator cable until adjusting nut contacts bracket and tighten lock nut. See Fig 1 . Recheck actuator cable adjustment.
