Driver's Door Lock Actuator Test

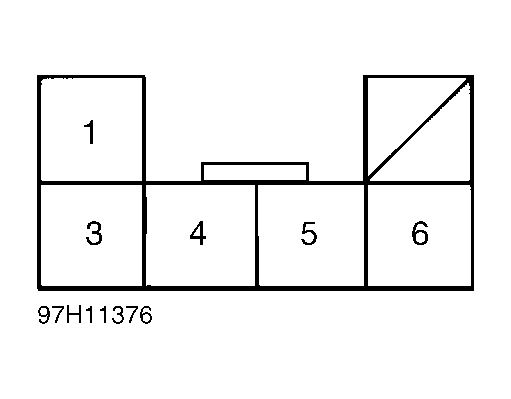

- Remove driver's door trim panel. Disconnect 6-pin connector from driver's door lock actuator. Using an ohmmeter, check for continuity between indicated terminals with switch in specified position. Refer to the DRIVER'S DOOR ACTUATOR CONTINUITY TEST table. See Fig 1 . If continuity is not as specified, replace switch.
- Using jumper wire, apply battery voltage to driver's door lock actuator terminal No. 5. Using another jumper wire, connect terminal No. 4 to ground. Observe actuator operation. Reverse jumper wire connections. Replace actuator if it does not move between locked and unlocked positions.
DRIVER'S DOOR ACTUATOR CONTINUITY TEST
| Switch Position | Continuity Between Terminals No. |
|---|---|
| Locked | 1 & 3 |
| Unlocked | 1 & 6 |
