Clearing Trouble Codes

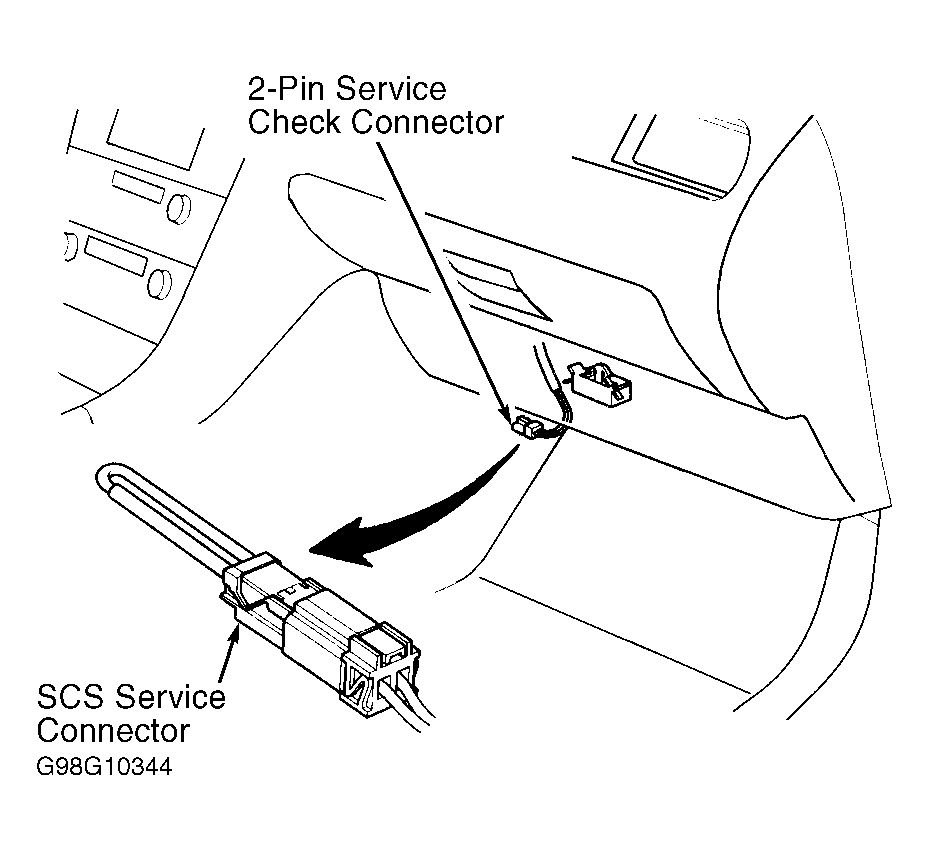

Connect SCS Service Connector (07PAZ-0010100) or Honda PGM Tester to 2-pin service check connector located under glove box. See Figure . Depress brake pedal, and turn ignition switch to ON position while keeping brake pedal depressed (without starting engine). After ABS indicator light goes out, release brake pedal. After ABS indicator light comes back on, depress brake pedal again. After ABS indicator light goes out, release brake pedal again. After a few seconds, ABS indicator light will blink twice indicating code is cleared. If ABS indicator light does not blink twice or stays on after starting vehicle, repeat procedure.

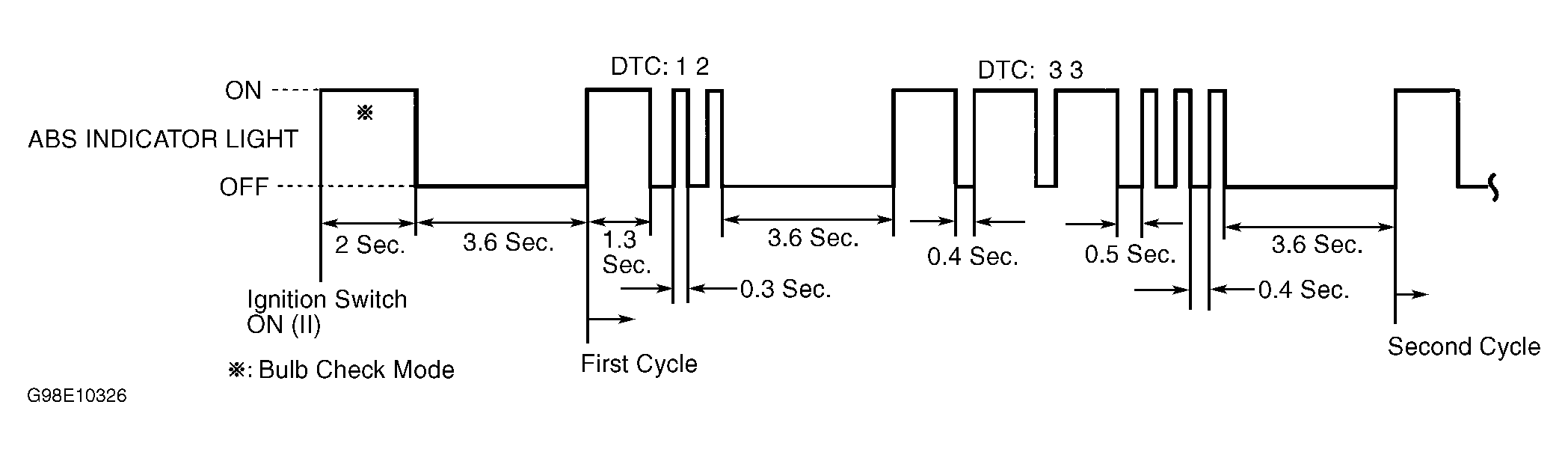

Fig 1: Identifying Diagnostic Trouble Codes (DTCs)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

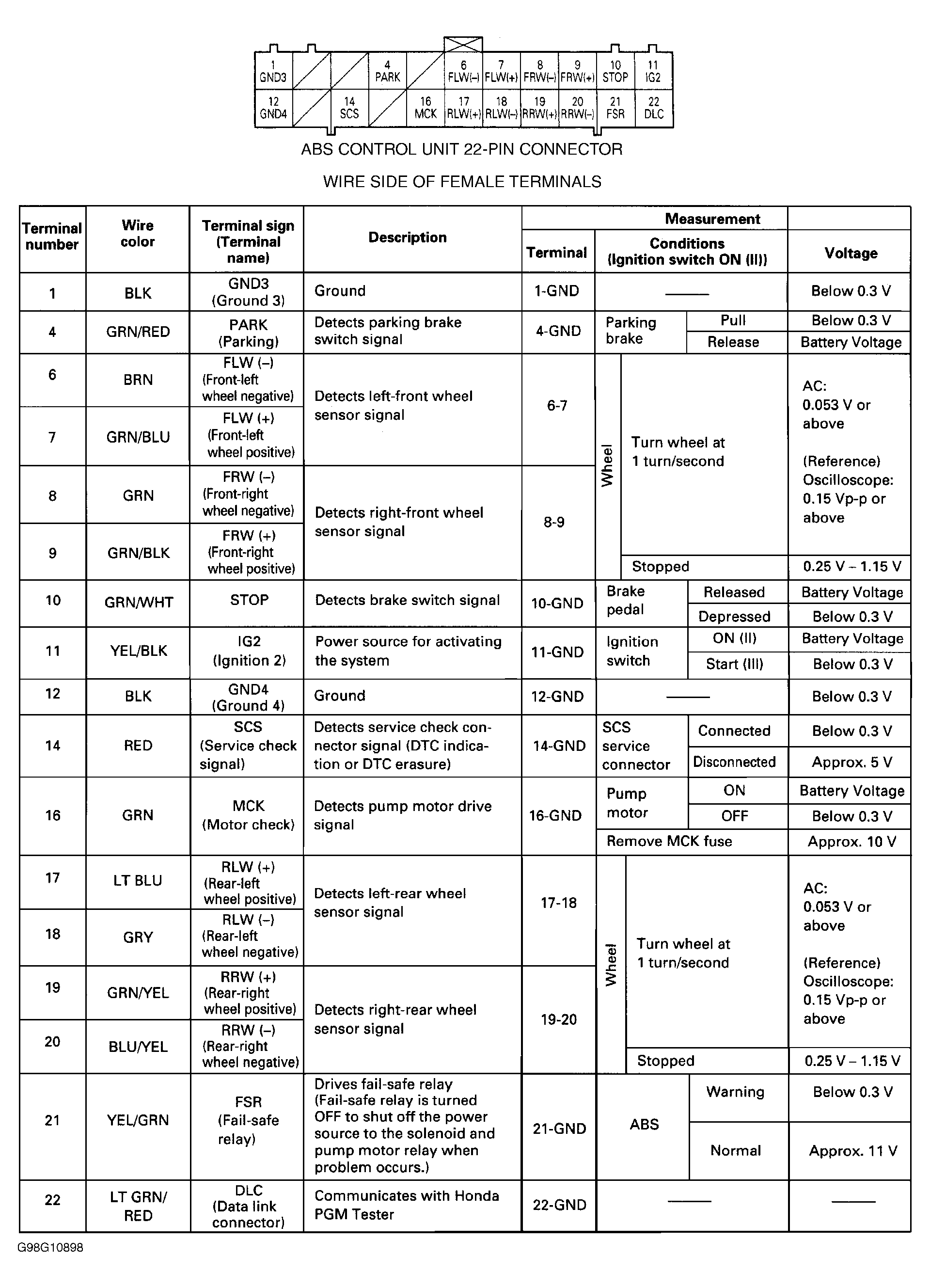

Fig 2: ABS Control Unit 22-Pin Connector Terminal Identification

Courtesy of AMERICAN HONDA MOTOR CO., INC.

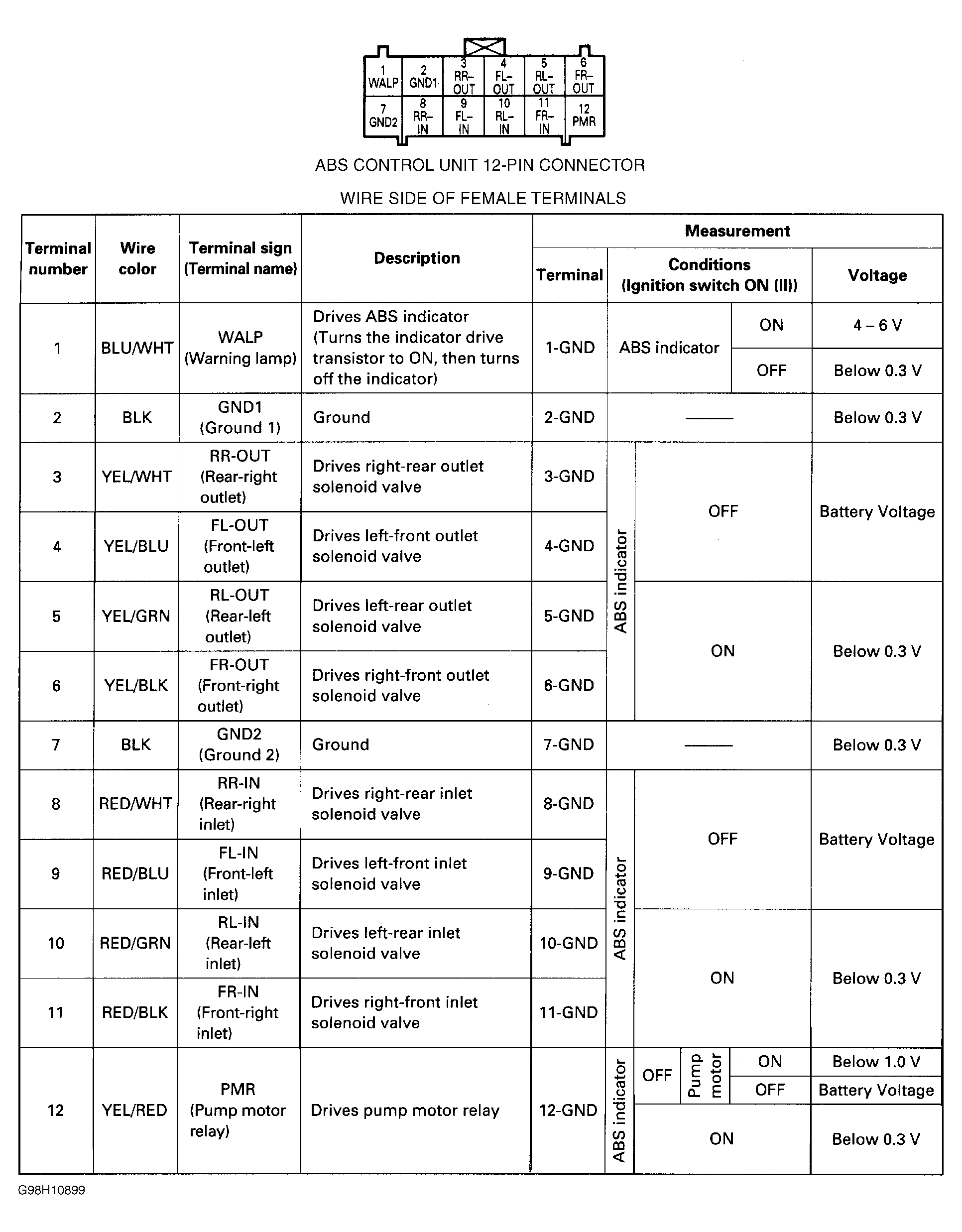

Fig 3: ABS Control Unit 12-Pin Connector Terminal Identification

Courtesy of AMERICAN HONDA MOTOR CO., INC.
