HOMELINK Transmitter Range Too Short-Light Assembly (98-033)
Publication date: 1998-11-09Reference number: 98-033
HOMELINK TRANSMITTER RANGE TOO SHORT-LIGHT ASSEMBLY
TECHNICAL SERVICE BULLETIN
Reference Number(s): 98-033, Date of Issue:
November 9, 1998
| ACURA: | 1998 2.3CL, 3.0CL |
| GROUP: | Electrical |
| APPLIES TO: | All |
SYMPTOM
The HomeLink Universal Transmitter works only when the vehicle is very close to the device being operated.
PROBABLE CAUSE
Faulty HomeLink unit.
CORRECTIVE ACTION
Replace the map light assembly (includes the HomeLink unit) with the appropriate new map light assembly listed under PARTS INFORMATION.
PARTS INFORMATION
Front Map Light Assembly, Clear Gray: P/N 34400-SS8-A02ZA
Front Map Light Assembly, Mild Beige: P/N 34400-SS8-A02ZB
WARRANTY CLAIM INFORMATION
In warranty: The normal warranty applies.
WARRANTY CLAIM INFORMATION
| OP # | Description | FRT | Template ID |
|---|---|---|---|
| 054100 | Replace the map light assembly (clear gray) | 0.2 | 98-033A |
| 054100 | Replace the map light assembly (mild beige) | 054100 | 98-033B |
Failed P/N: 34400-SS8-A01ZA
Defect code: 091
Contention code: B02
Skill level: Repair Technician
Out of warranty: Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Technical Manager or your Zone Office. You must request consideration, and get a decision, before starting work.
REPAIR PROCEDURE
- Remove the old map light assembly by prying off the lens, removing the two mounting screws, and disconnecting the 3P connector.
- Install the new map light assembly.

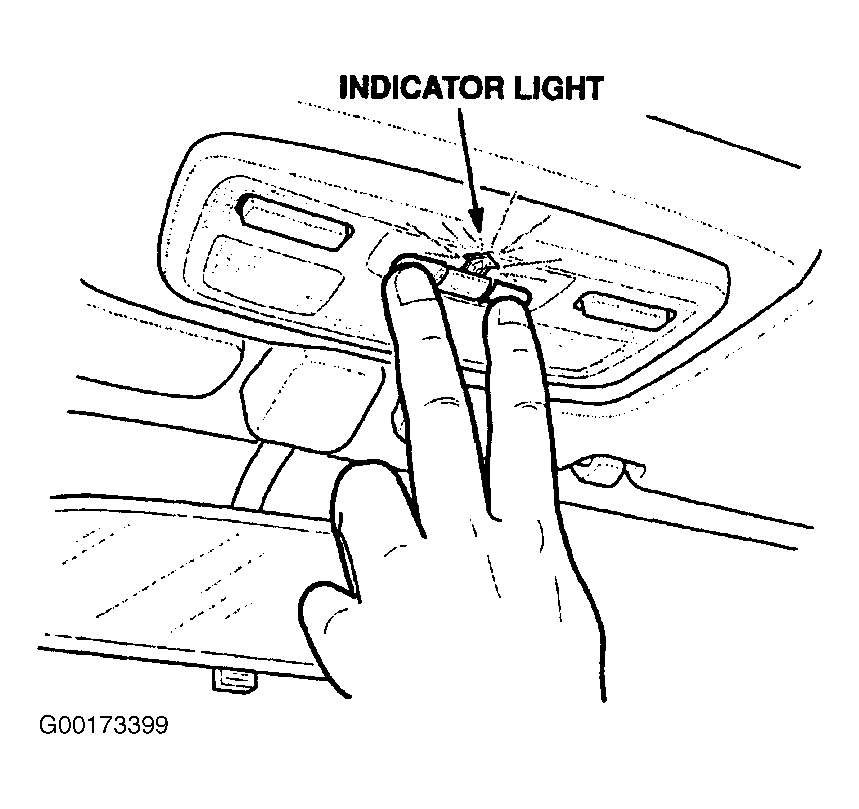

- Deprogram the HomeLink unit by holding down the first and third buttons for 20 to 30 seconds until the indicator light starts to flash.
