Clearing Trouble Codes

WARNING: This page is about a different car, the 1998 Acura 3.5RL and 1997 Acura 3.5RL. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If procedure is not followed, SCS service connector is connected and/or parking brake is released during procedure, DTC(s) will not be cleared.

Turn ignition switch to OFF position. Set parking brake. Push and hold TCS ON/OFF switch and turn ignition switch to ON position. Hold TCS ON/OFF switch for 4-6 seconds and release. After 3 seconds, TCS indicator should go off and blink 2 times and then stay on. DTCs are cleared if TCS indicator light operates as described. If TCS indicator light continues to blink, replace TCS control unit.

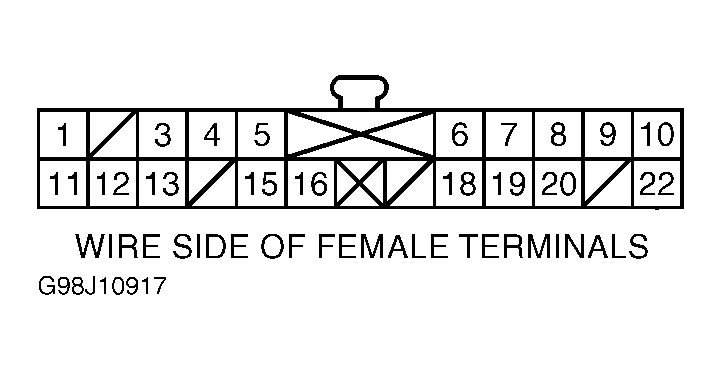

Fig 1: Identifying Gauge Assembly 22-Pin Connector Terminals
G98J10917Courtesy of AMERICAN HONDA MOTOR CO., INC.
