Component Locations

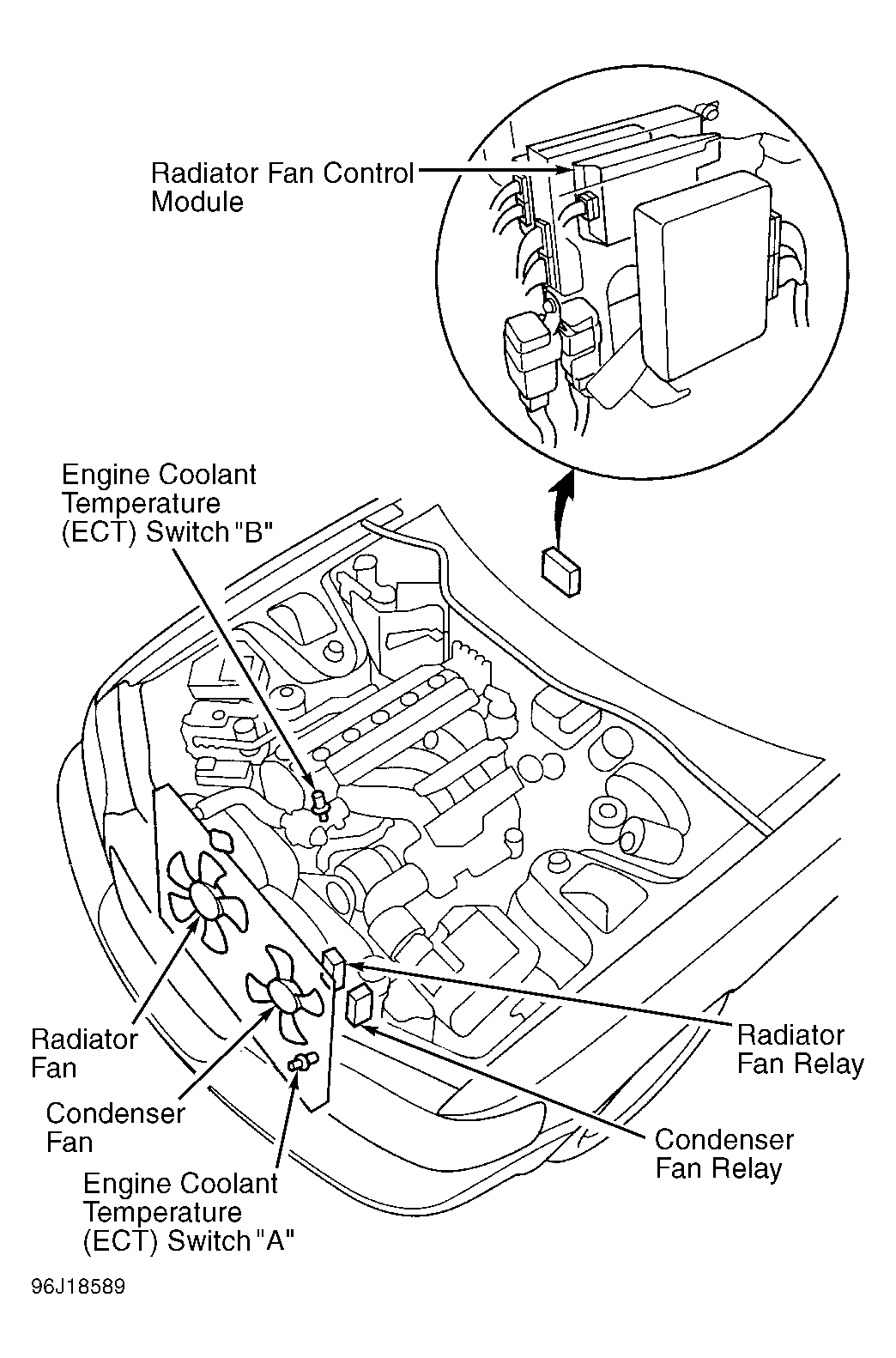

Fig 1: Locating Cooling Fan Components (Integra)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

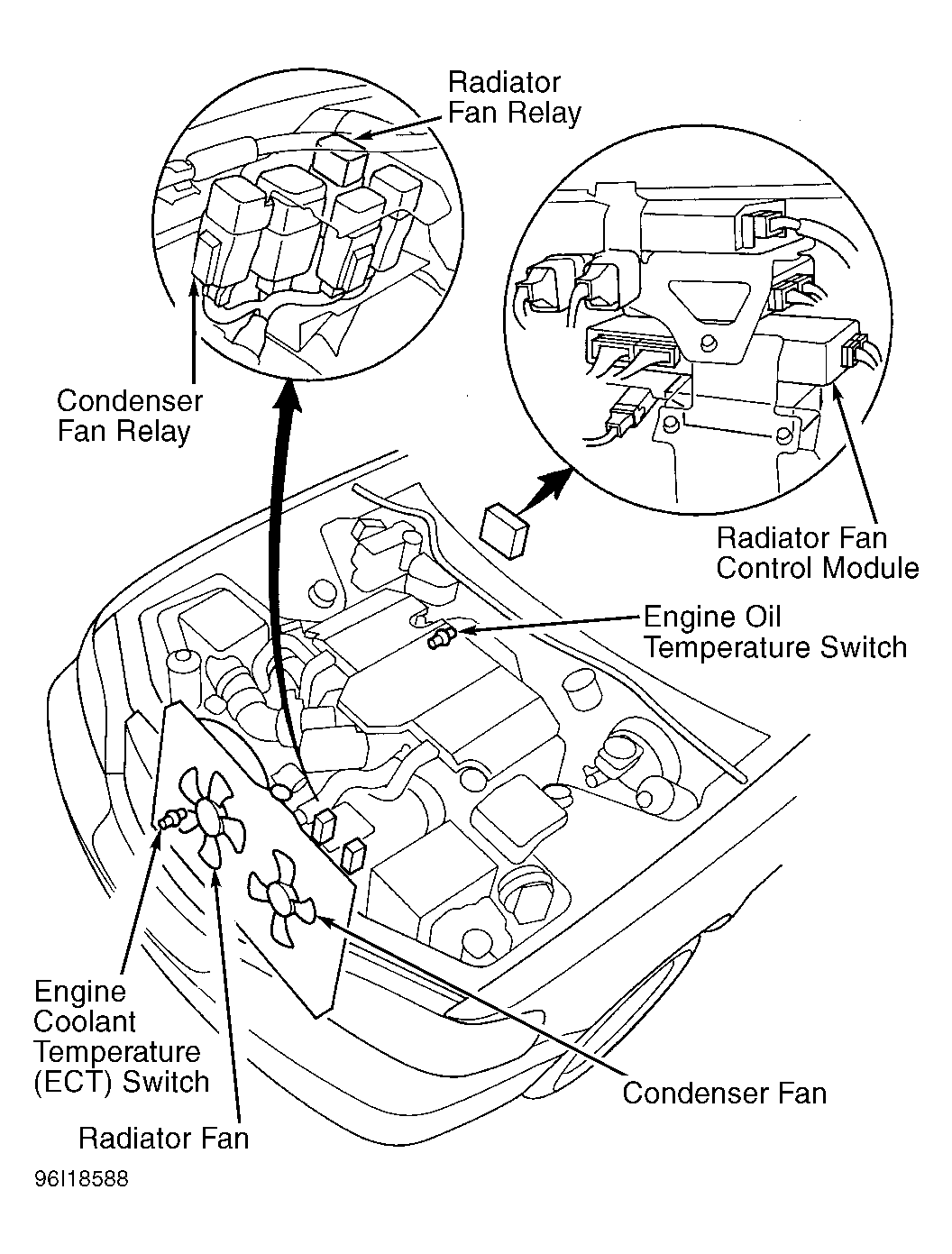

Fig 2: Locating Cooling Fan Components (2.2CL & 2.3CL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Locating Cooling Fan Components (3.5RL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Locating Cooling Fan Components (2.5TL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Locating Cooling Fan Components (3.0CL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Locating Cooling Fan Components (3.2TL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
