Passenger's Power Window Switch Test

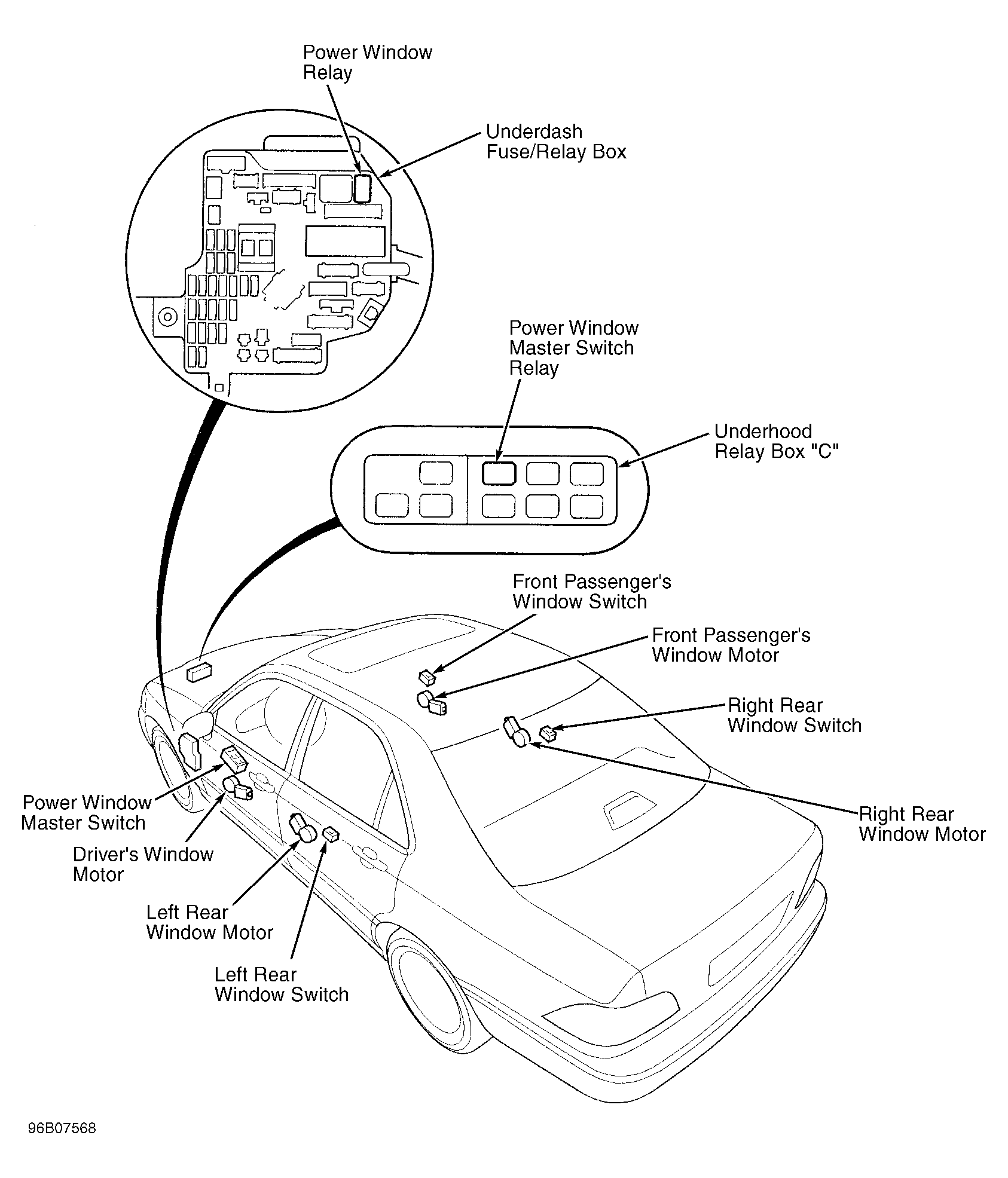

Remove passenger's power window switch and armrest pocket from door panel. Disconnect 6-pin connector from switch. Check for continuity between specified switch terminals with switch in each specified position. See PASSENGER'S POWER WINDOW SWITCH TEST table. If continuity is not as specified, replace passenger's power window switch. See Figure .
PASSENGER'S POWER WINDOW SWITCH TEST
| Window Switch Position | Continuity Between Terminals | |
|---|---|---|
| Front | ||
| UP | BLU/WHT & BLK/GRN; WHT/YEL, BLU/RED, BLK/RED & BLU/BLK | |
| OFF | BLU/WHT, WHT/YEL, BLU/RED, BLK/RED & BLU/BLK | |
| DOWN | BLK/GRN & BLU/RED; BLU/WHT, WHT/YEL, BLK/RED & BLU/BLK | |
| Rear | ||
| UP | BLU/WHT & BLK/GRN; YEL/BLK, BLU/RED, YEL/GRN & YEL | |
| OFF | BLU/WHT, YEL/BLK, BLU/RED, YEL/GRN & YEL | |
| DOWN | BLK/GRN & BLU/RED; BLU/WHT, YEL/BLK, YEL/GRN & YEL | |
