Hazard Warning Switch Test

Check for continuity between specified switch terminals with switch in ON and OFF position. See Fig 1 . If continuity is not as specified, replace hazard warning switch. If continuity is as specified, check turn signal/hazard relay input. See TURN SIGNAL/HAZARD RELAY INPUT TEST under SYSTEM TESTS.

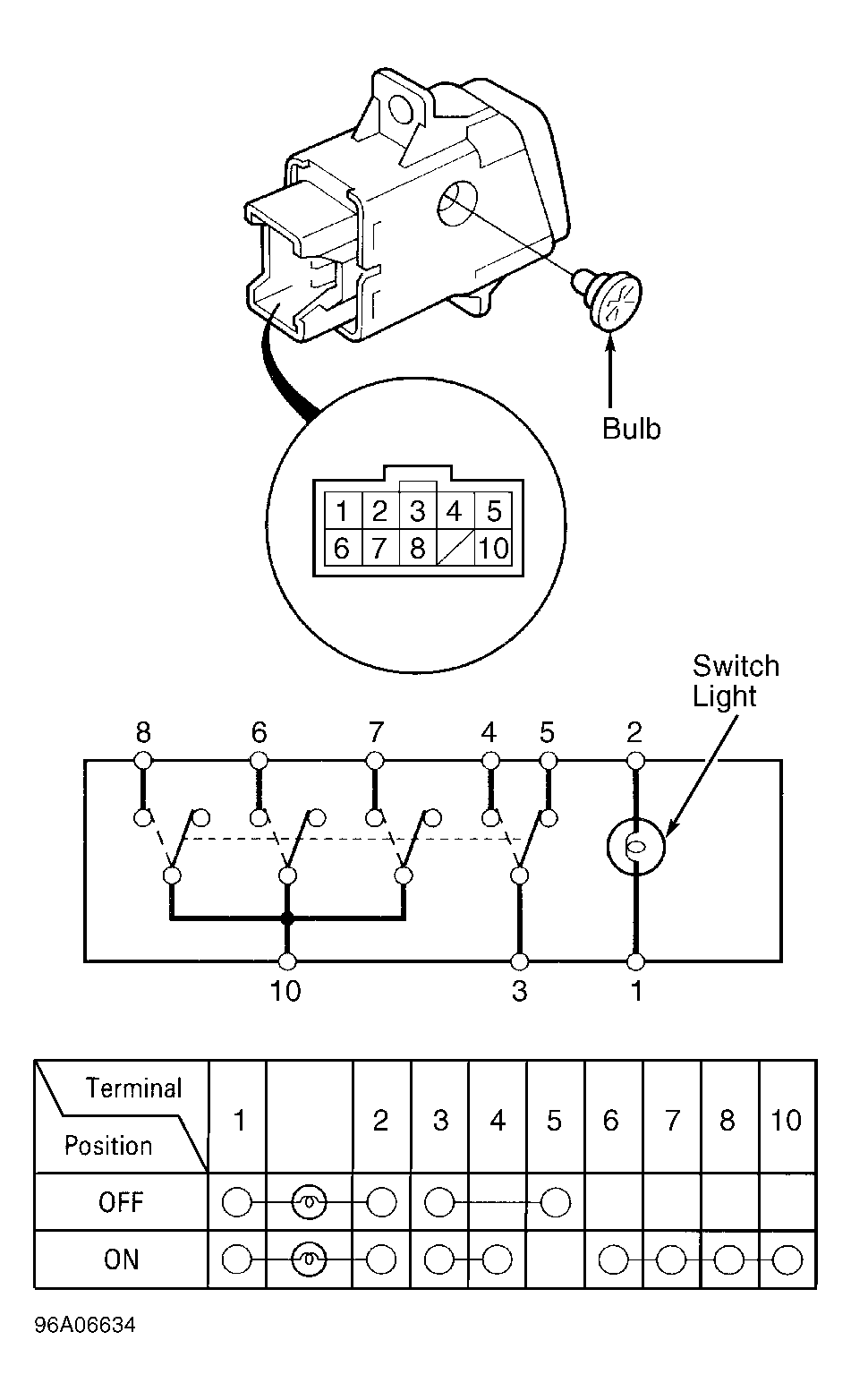

Fig 1: Testing Hazard Warning Switch

Courtesy of AMERICAN HONDA MOTOR CO., INC.
