Actuator Assembly Test
WARNING: This page is about a different car, the 1997 Acura 2.2CL. However, it is still accessible from the selected car via links, so may be relevant.

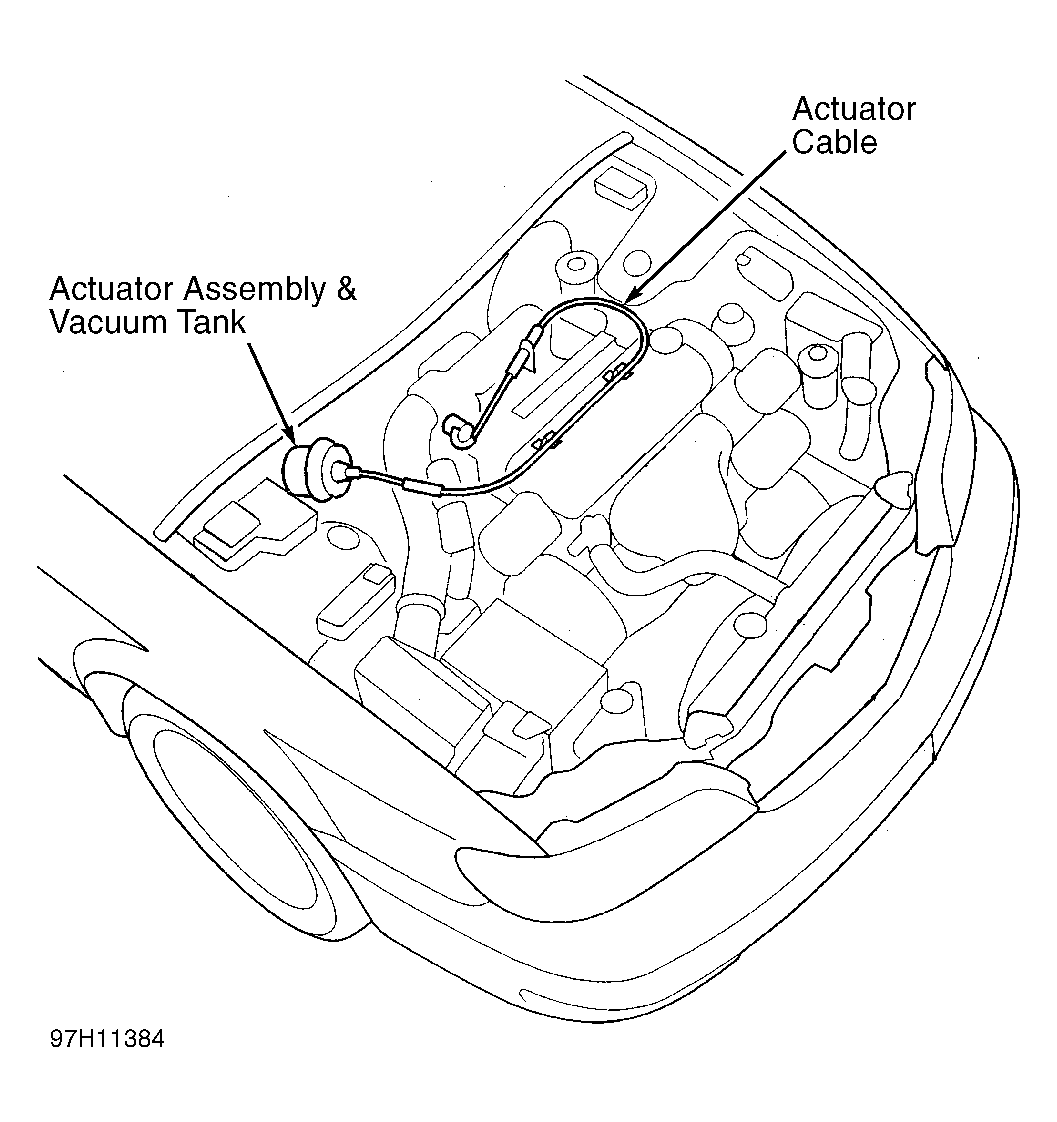

Disconnect 4-pin connector at actuator. Actuator is located on right side of engine compartment near firewall. See Figure . Measure resistance between specified terminals of actuator connector. See CRUISE CONTROL ACTUATOR ASSEMBLY RESISTANCE TEST table. See Fig 1 . Replace actuator assembly if resistances are not as specified.
CRUISE CONTROL ACTUATOR ASSEMBLY RESISTANCE TEST (1)
| Measure Between Terminals No. | Resistance | ||
|---|---|---|---|
| 3 & 4 (Vent Solenoid) | 40-60 Ohms | ||
| 2 & 4 (Vacuum Solenoid) | 30-50 Ohms | ||
| 1 & 4 (Safety Solenoid) | 40-60 Ohms | ||
|
|||
