Intermittent Wiper Relay Test
- Intermittent wiper relay is located at right rear corner of engine compartment. Turn ignition off. Disconnect relay harness connector and remove relay from retaining bracket.

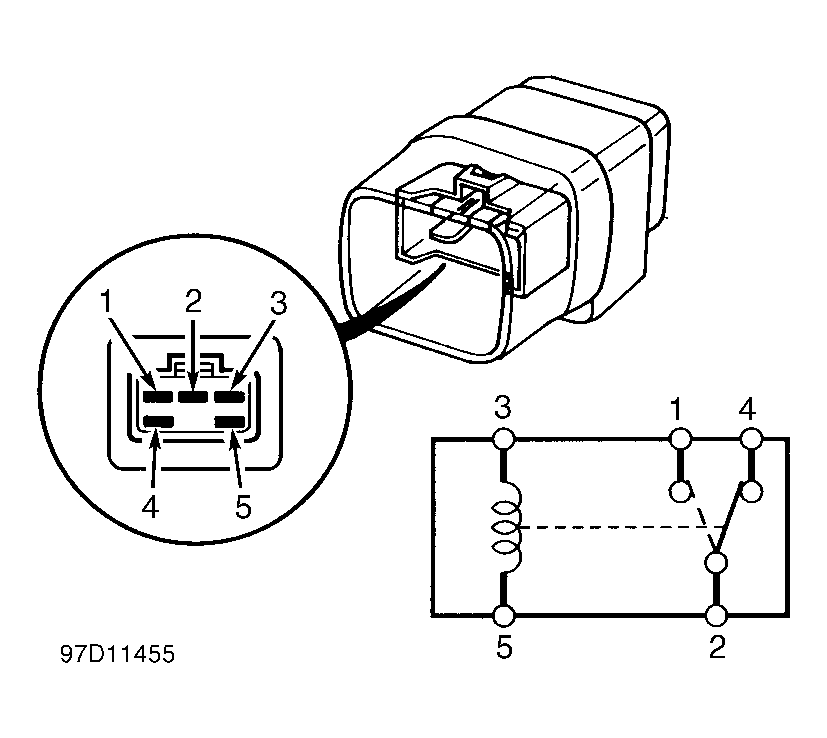

- Using an ohmmeter, ensure continuity exists between relay terminals No. 3 and 5, then between terminals No. 2 and 4. See Fig 1
. Continuity should not exist between terminals No. 1 and 2.
- Using fused jumper wires, apply battery voltage and ground between relay coil terminals No. 3 and 6. Continuity should now exist between terminals No. 1 and 2. Ensure continuity does not exist between terminals No. 2 and 4. Replace relay if continuity is not as specified.
