Countershaft Speed Sensor

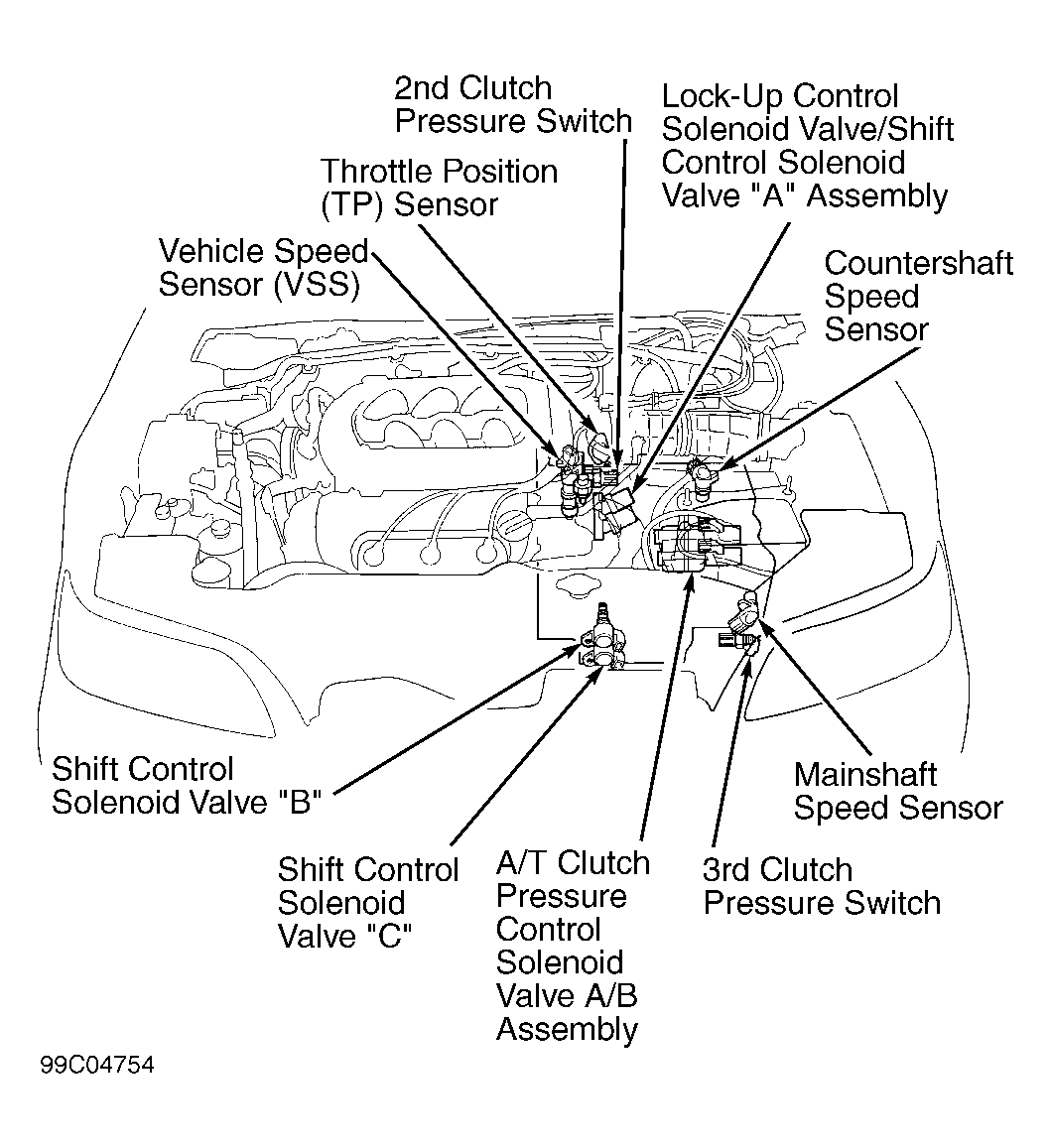

Disconnect harness connector from countershaft speed sensor located on top of transaxle. See Figure . Using a DVOM, measure resistance between sensor terminals. Replace countershaft speed sensor if resistance is not 400-600 ohms.
