No Indictors Operate

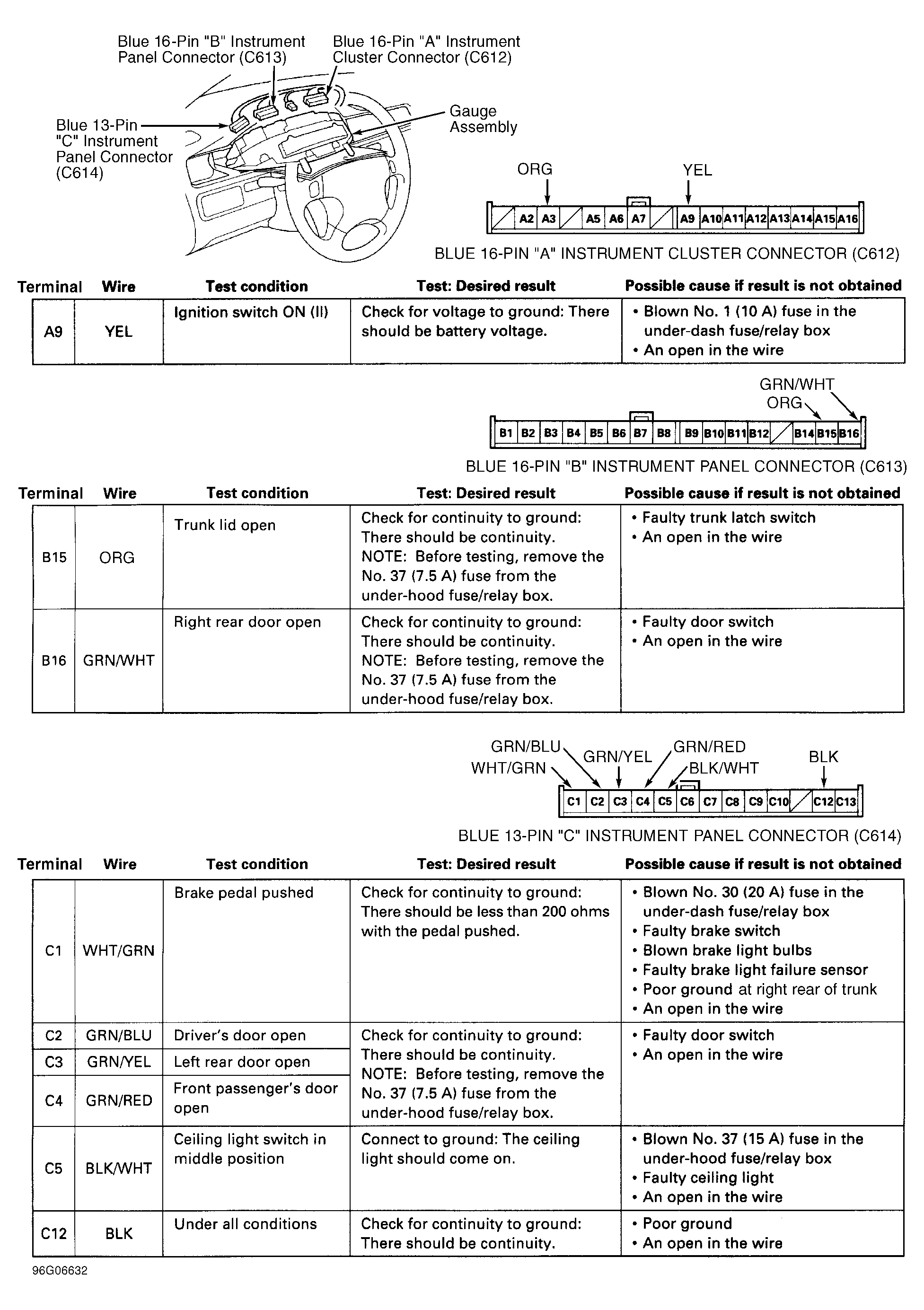

Check fuse No. 1 (10-amp) located in underdash fuse/relay box in left kick panel. Check safety indicator input. See Figure . Check ground connections located behind left and right kick panels. Check for poor connections or open in Yellow wire between fuse No. 1 (10-amp) and instrument cluster. See WIRING DIAGRAMS.
