Abs Indicator Light Does Not Come On

Check BACK-UP LIGHTS/METER LIGHTS fuse (10-amp) in underdash fuse/relay block. See Figure or Figure . Replace fuse if blown, and retest system. If fuse is okay, go to next step.
Disconnect gauge assembly 22-pin connector. Turn ignition on. Measure voltage between ground and gauge assembly 22-pin connector terminal No. 6 (Yellow wire). See Fig 1 . If battery voltage exists, go to step 4). If battery voltage does not exist, go to next step.
Check for open in Yellow wire between gauge assembly and BACK-UP LIGHTS/METER LIGHTS fuse (10-amp) in underdash fuse/relay block. See appropriate WIRING DIAGRAMS . If circuit is okay, check for an open in underdash fuse/relay block.
Turn ignition off. Remove gauge assembly and check ABS indicator bulb. Replace bulb if faulty, and retest system. If bulb is okay, go to next step.
Reconnect gauge assembly 22-pin connector. Connect a jumper wire from ground to gauge assembly 16-pin connector terminal No. 9 (Blue/White wire). See Fig 2 . Turn ignition on. If ABS indicator light does not come on, replace printed circuit on gauge assembly. If ABS indicator light comes on, go to next step.
Turn ignition off and disconnect ABS control unit 26-pin and 22-pin connectors. Turn ignition on. Connect a jumper wire from ground to ABS control unit 26-pin connector terminal No. 24, or ABS control unit 22-pin connector terminal No. 20 (Blue/White wires). See Fig 3 or Fig 4 . If ABS indicator light comes on, go to next step. If ABS indicator light does not come on, repair open in Blue/White wire between ABS control unit and gauge assembly.
Turn ignition off. Reconnect ABS control unit connectors. Connect a jumper wire from ground to ABS control unit 26-pin connector terminal No. 26, or ABS control unit 22-pin connector terminal No. 22 (Black wires). See Fig 3 or Fig 4 . Turn ignition on. If ABS indicator light does not come on, check for poor connection at ABS control unit. If connections are okay, replace ABS control unit. If ABS indicator light comes on, repair open in ground circuit to 26-pin connector terminal No. 26, or ABS control unit 22-pin connector terminal No. 22. See Fig 3 or Fig 4 . See WIRING DIAGRAMS .

Fig 1: Identifying Gauge Assembly 22-Pin Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Identifying Gauge Assembly 16-Pin Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

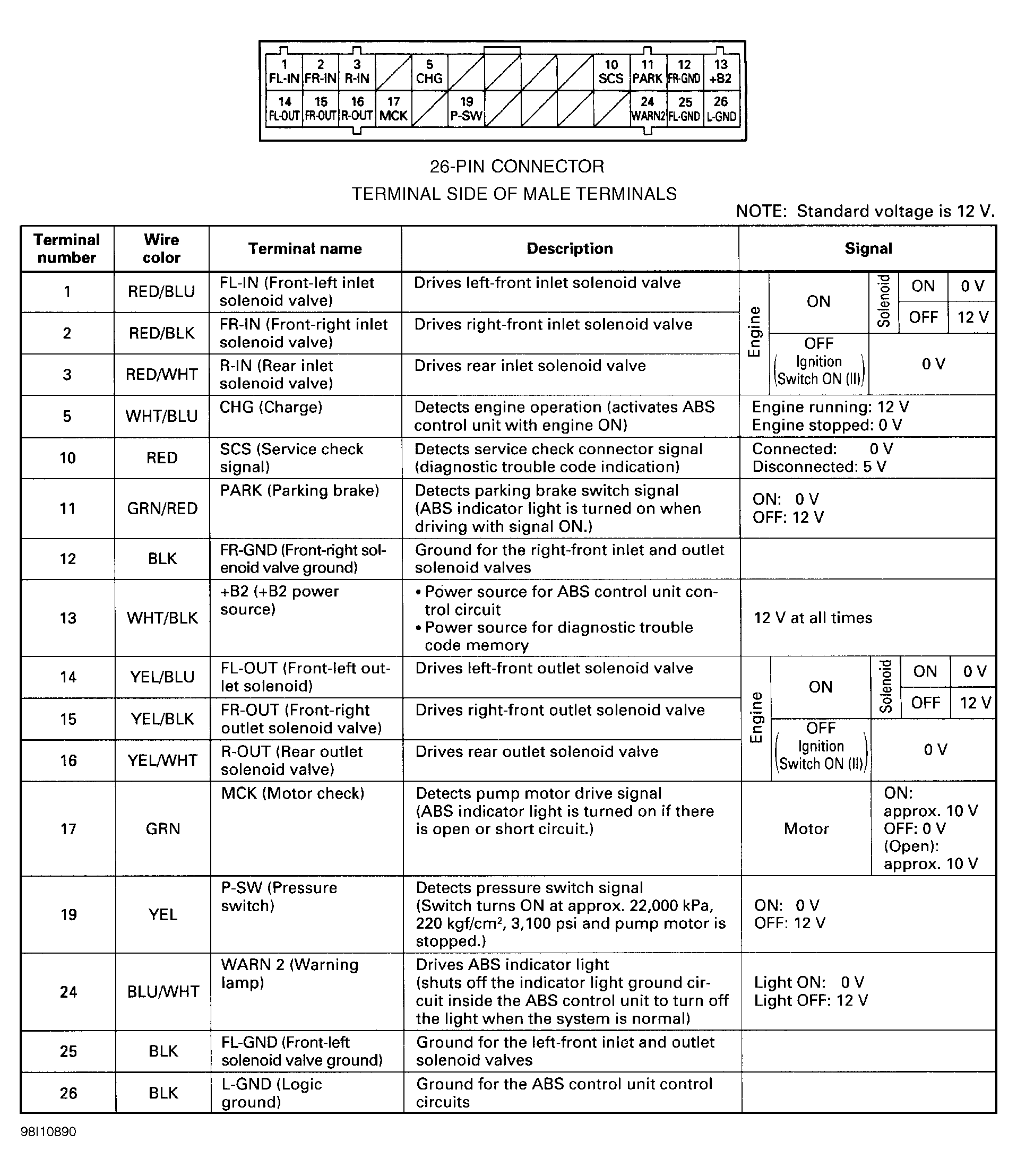

Fig 3: Identifying ABS Control Unit 26-Pin Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

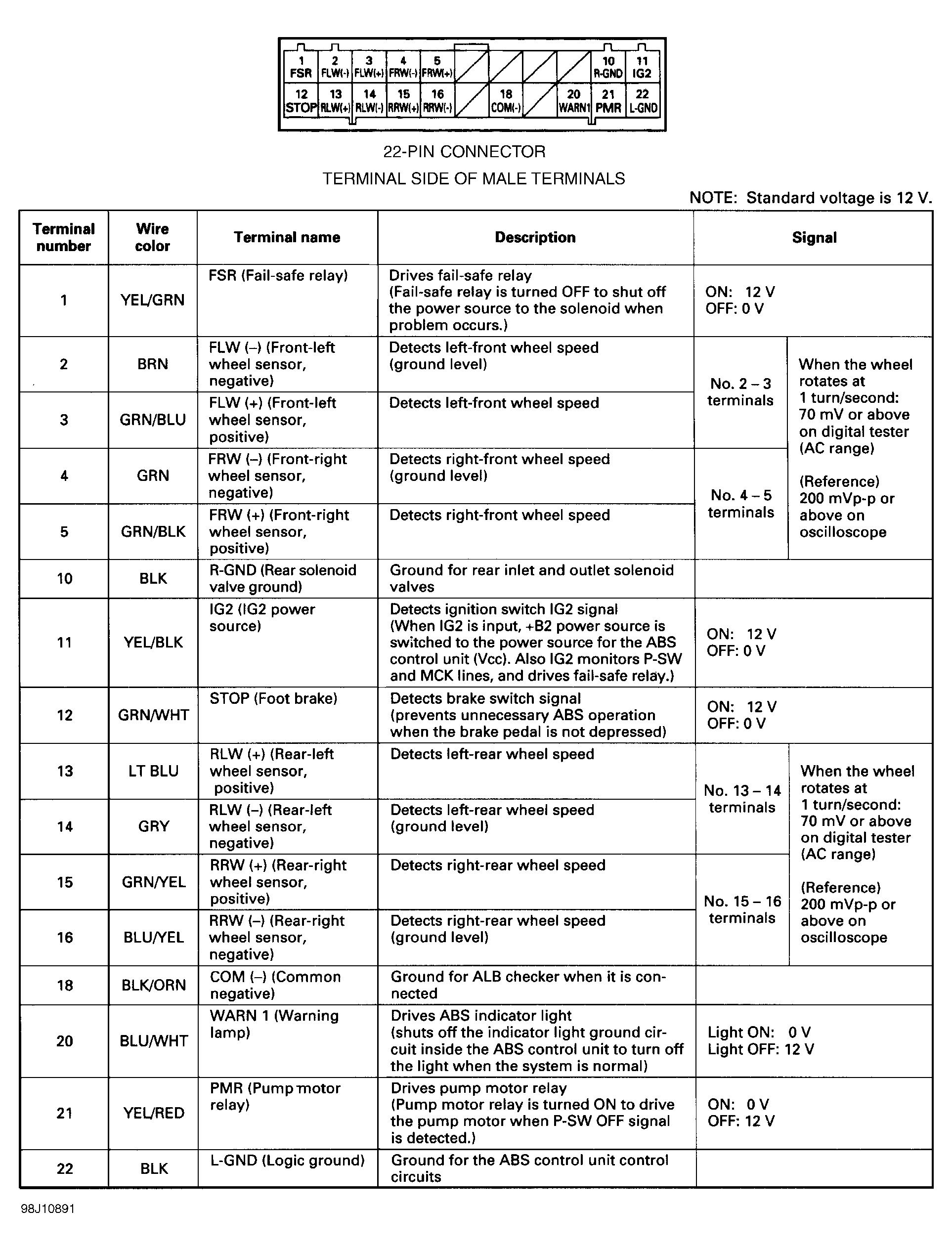

Fig 4: Identifying ABS Control Unit 22-Pin Connector Terminals
