Abs Pump Motor: Installation

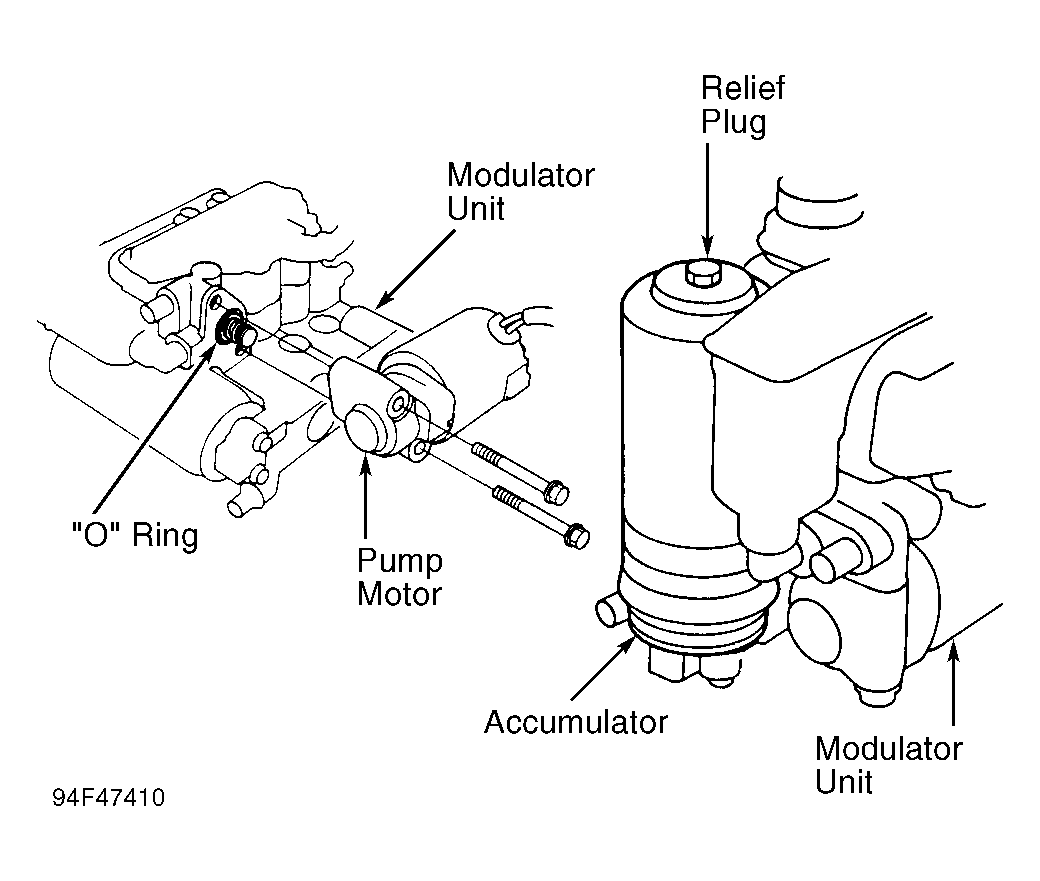

Install ABS pump motor onto ABS modulator unit. See Figure . Install ABS modulator unit into vehicle. See ABS MODULATOR UNIT. Bleed air from system. See ACCUMULATOR, MODULATOR and ABS PUMP (POWER UNIT) BLEEDING under BLEEDING BRAKE SYSTEM  . Start engine and allow to idle a few minutes. Ensure ABS indicator light goes out and there are no brake fluid leaks. Stop engine and ensure brake fluid level in reservoir is filled to MAX level.
