Relieving Accumulator/Line Pressure

  1. Remove service cap from maintenance bleeder on ABS modulator unit. Attach wrench to maintenance bleeder. Place one end of a rubber tube over maintenance bleeder. Place other end of rubber tube in a suitable container. See Fig 1 .
  2. While holding rubber tube, slowly open bleeder 1/8 to 1/4 turn to collect fluid. Tighten bleeder to specification. See TORQUE SPECIFICATIONS  .

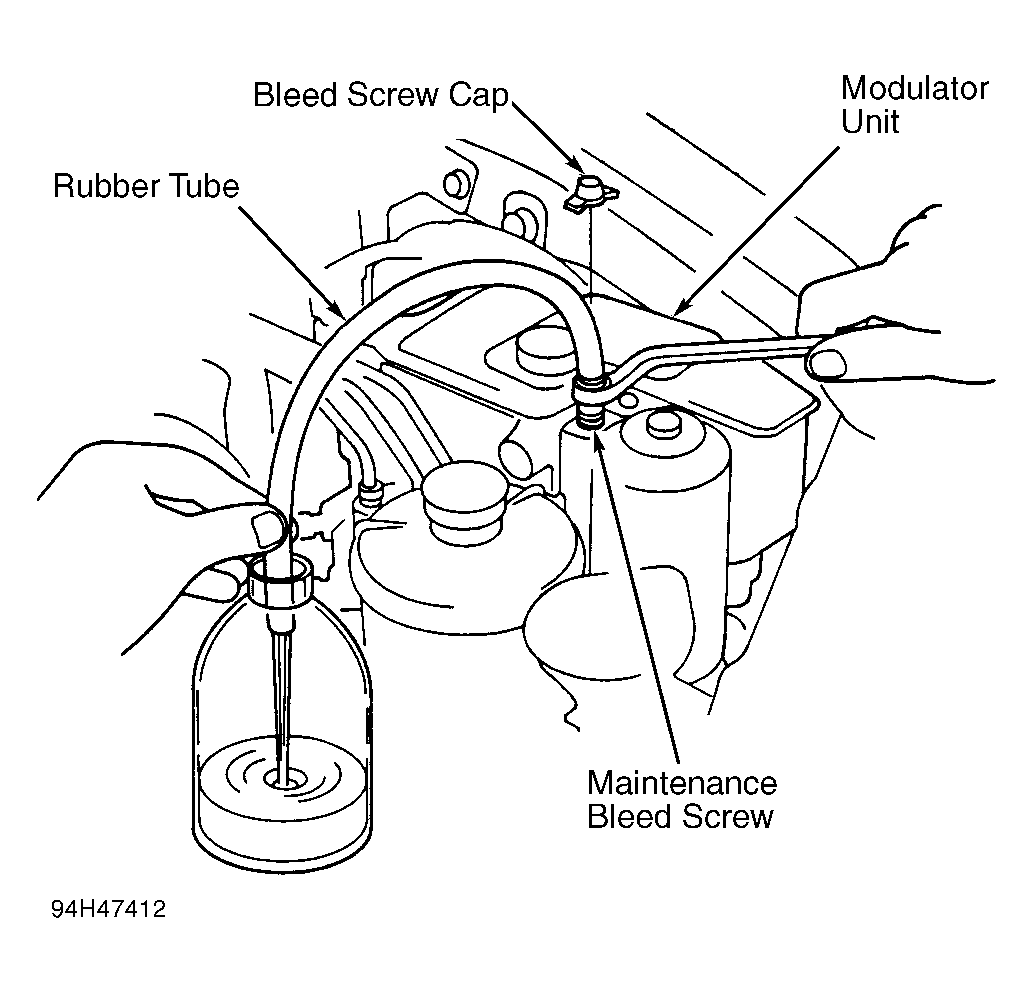

Fig 1: Relieving Accumulator/Line Pressure
G94H47412Courtesy of AMERICAN HONDA MOTOR CO., INC.
