A/T Gear Position Indicator

NOTE: If necessary, refer to wiring schematic when checking component wiring. See WIRING DIAGRAMS  .
  1. Remove instrument panel gauge assembly from instrument panel. See INSTRUMENT CLUSTER in ACURA - INSTRUMENT PANELS article. Disconnect harness connectors from rear of instrument panel gauge assembly. See Fig 1 .
  2. Using a DVOM, check for voltage and continuity at specified harness connectors and terminals. If necessary, check ground connection G404. Ground G404 is located under center of dash on left side of center console. See Fig 2 .

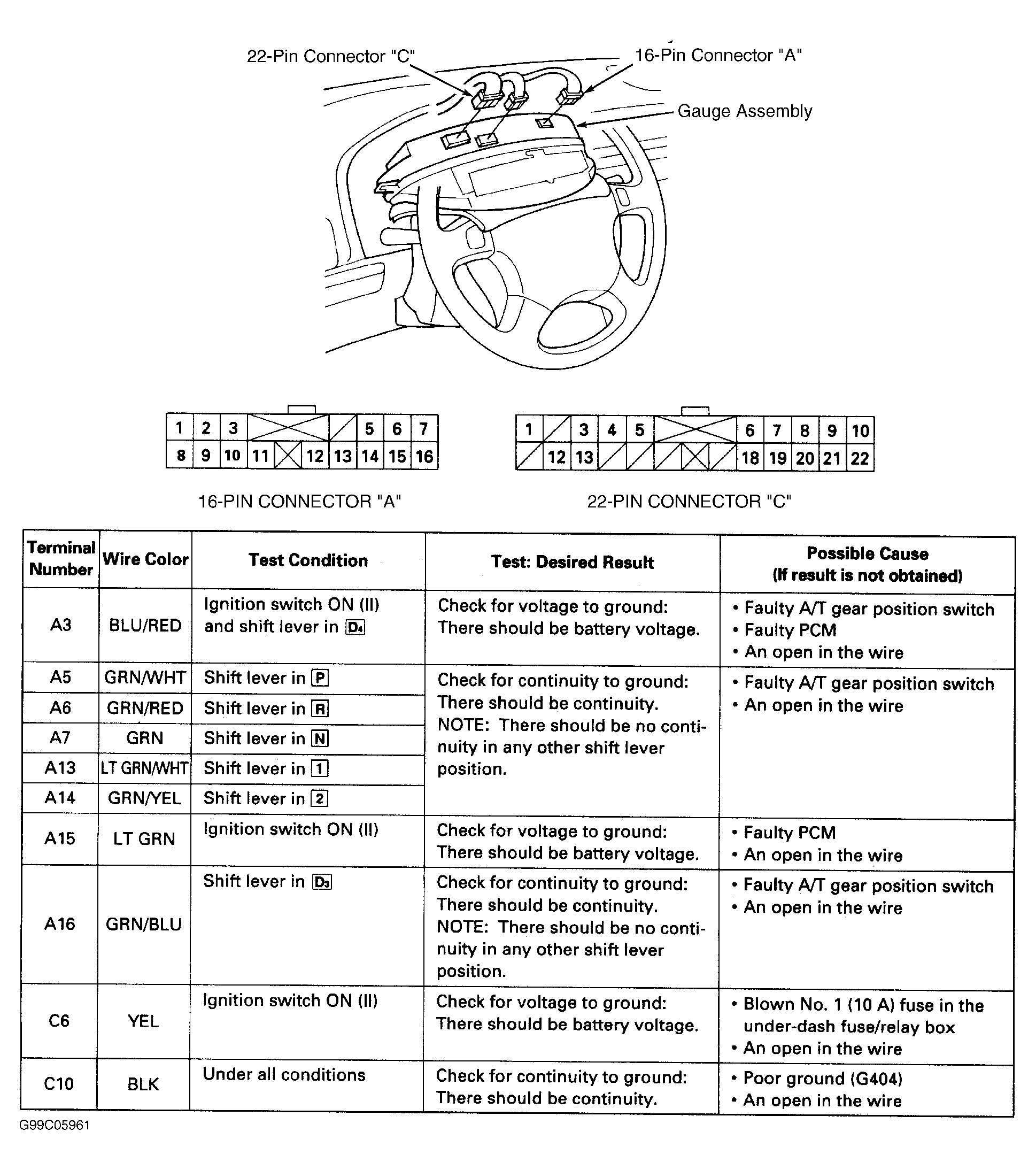

Fig 1: Identifying Instrument Panel Gauge Assembly Harness Connectors & A/T Gear Position Indicator Testing Chart
G99C05961Courtesy of AMERICAN HONDA MOTOR CO., INC.

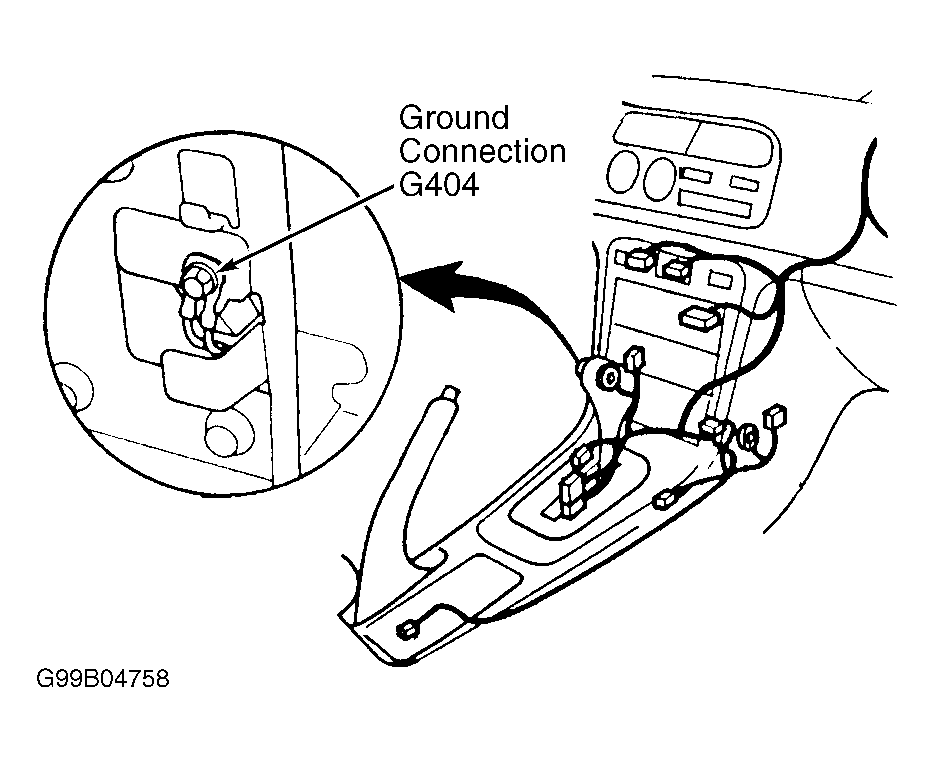

Fig 2: Locating Ground Connections G404
G99B04758Courtesy of AMERICAN HONDA MOTOR CO., INC.
