Diagnosis - A6VA
>>
Component Locations
Component Locations
For component locations, see
Fig 1
.

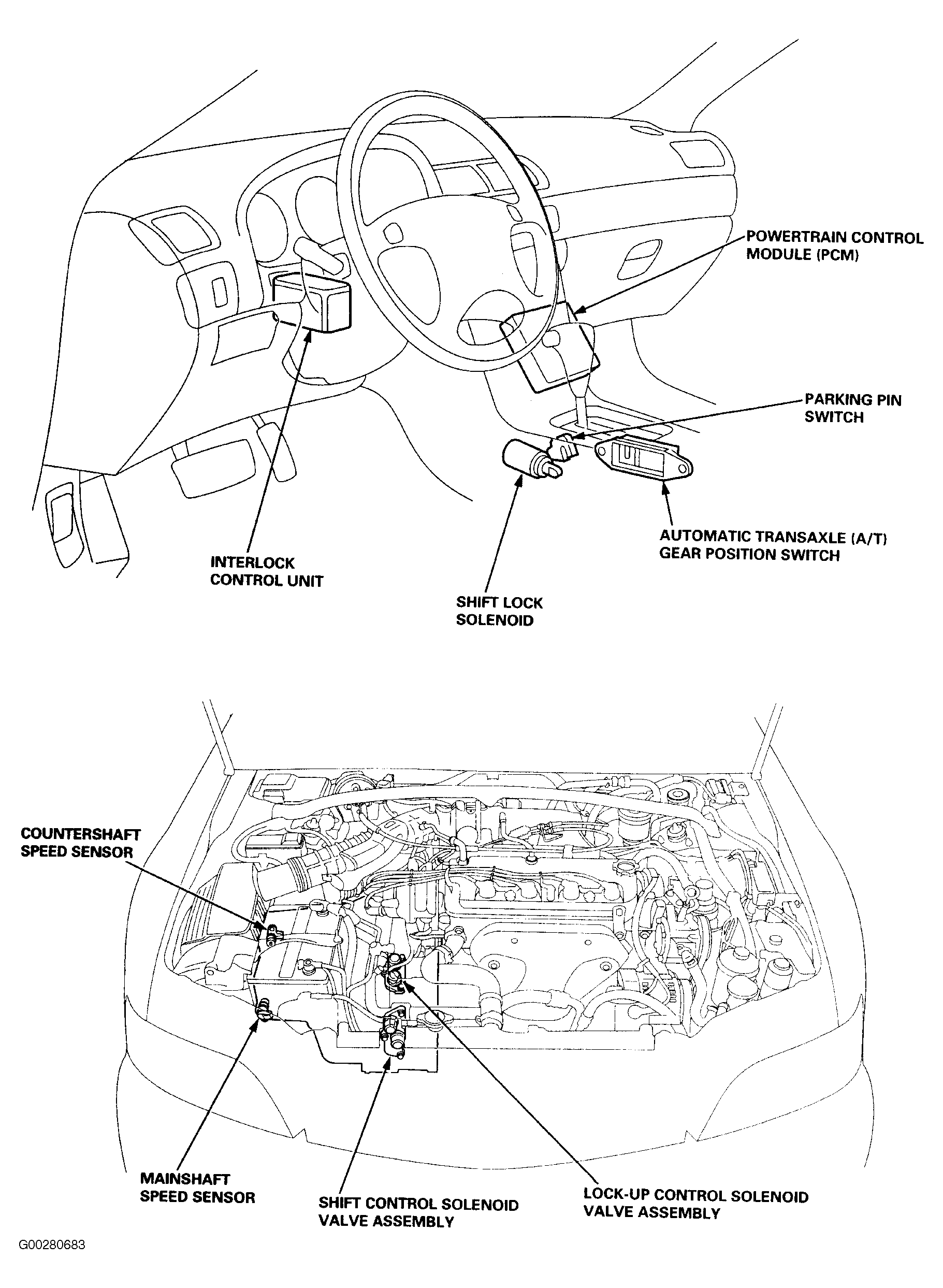

Fig 1: Identifying A6VA Component Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.
