Transaxle Specifications

For additional A6VA transaxle specifications, see Fig 1 -Fig 3 .

TRANSAXLE SPECIFICATIONS

Application

Specification

Clutch Clearance

1st & 2nd Clutches

.026-.033" (.65-.85 mm)

1st-Hold Clutch

.031-.039" (.80-1.00 mm)

3rd & 4th Clutches

.016-.024" (.40-.60 mm)

Differential Bearing Preload ⁽¹⁾

New Bearings

24-35 INCH lbs. (2.8-4.0 N.m)

Used Bearings

22-32 INCH lbs. (2.5-3.7 N.m)

Oil Pump Clearances

Side Clearance

Oil Pump Drive Gear

.0083-.0104" (.210-.265 mm)

Oil Pump Driven Gear

.0014-.0025" (.035-.063 mm)

Thrust Clearance

Standard

.001-.002" (.03-.05 mm)

Wear Limit

.003" (.07 mm)

Secondary Shaft 2nd Gear Clearance

.003-.006" (.07-.15 mm)

Side Gear Backlash

.002-.006" (.05-.15 mm)

Parking Brake Stop Distance

2.54-2.58" (64.5-65.6 mm)

⁽¹⁾	Starting torque required to rotate differential assembly.

DIFFERENTIAL BEARING PRELOAD ⁽¹⁾

Application

INCH Lbs (N.m)

New Bearings

24-35 (2.7-3.9)

Used Bearings

22-32 (2.5-3.6)

⁽¹⁾	Starting torque required to rotate differential assembly.

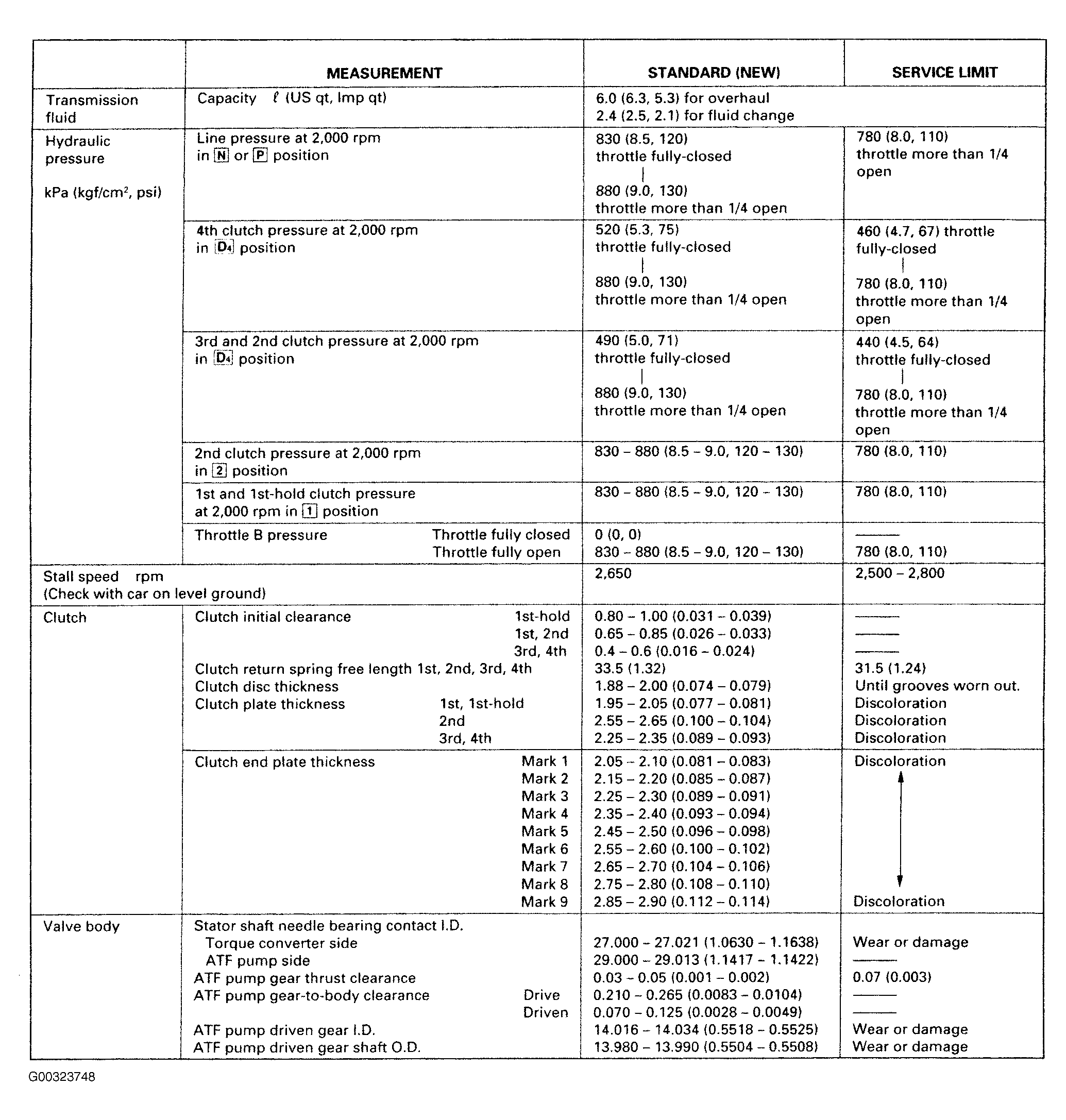

Fig 1: A6VA Transaxle Specifications Chart (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

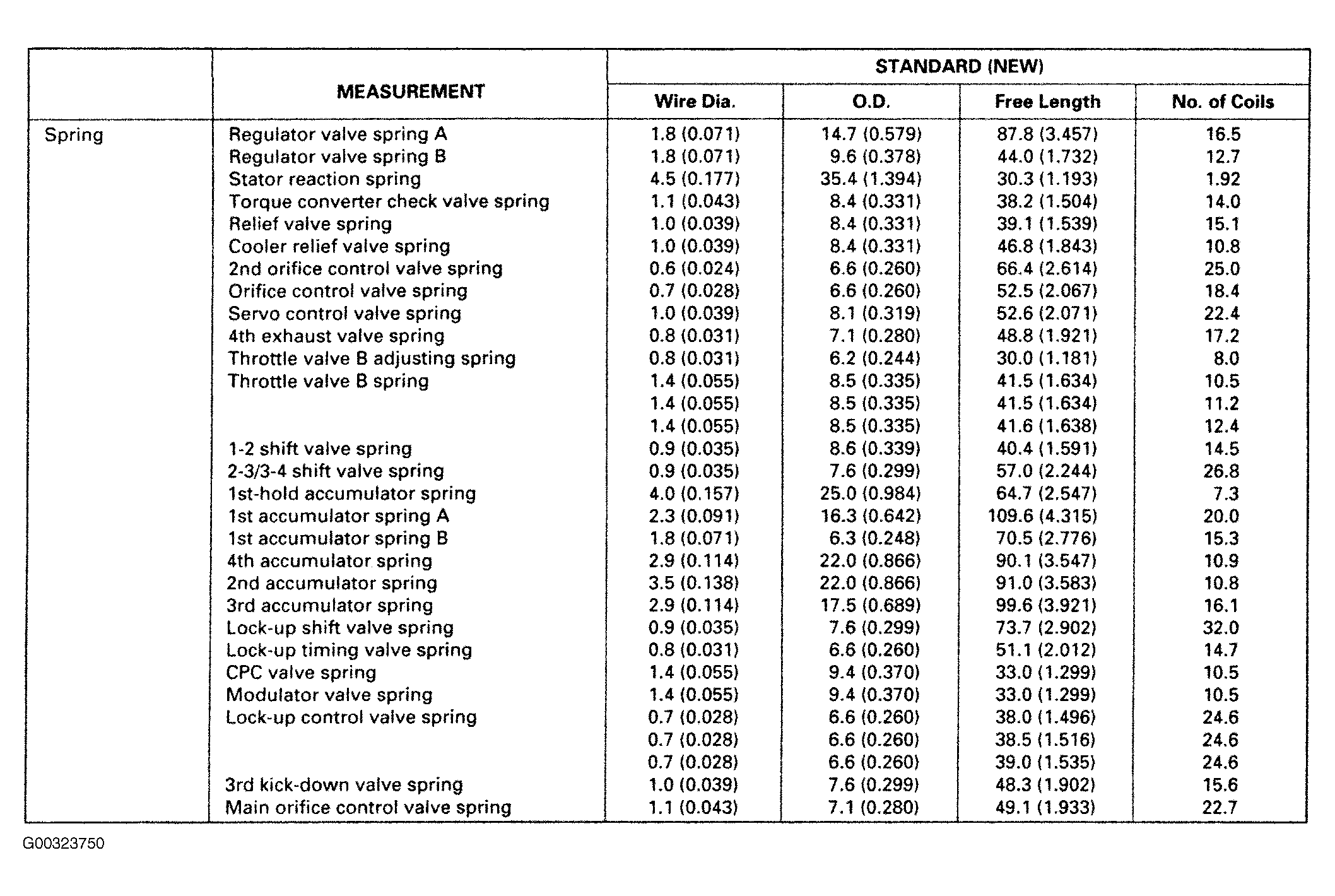

Fig 2: A6VA Transaxle Specifications Chart (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

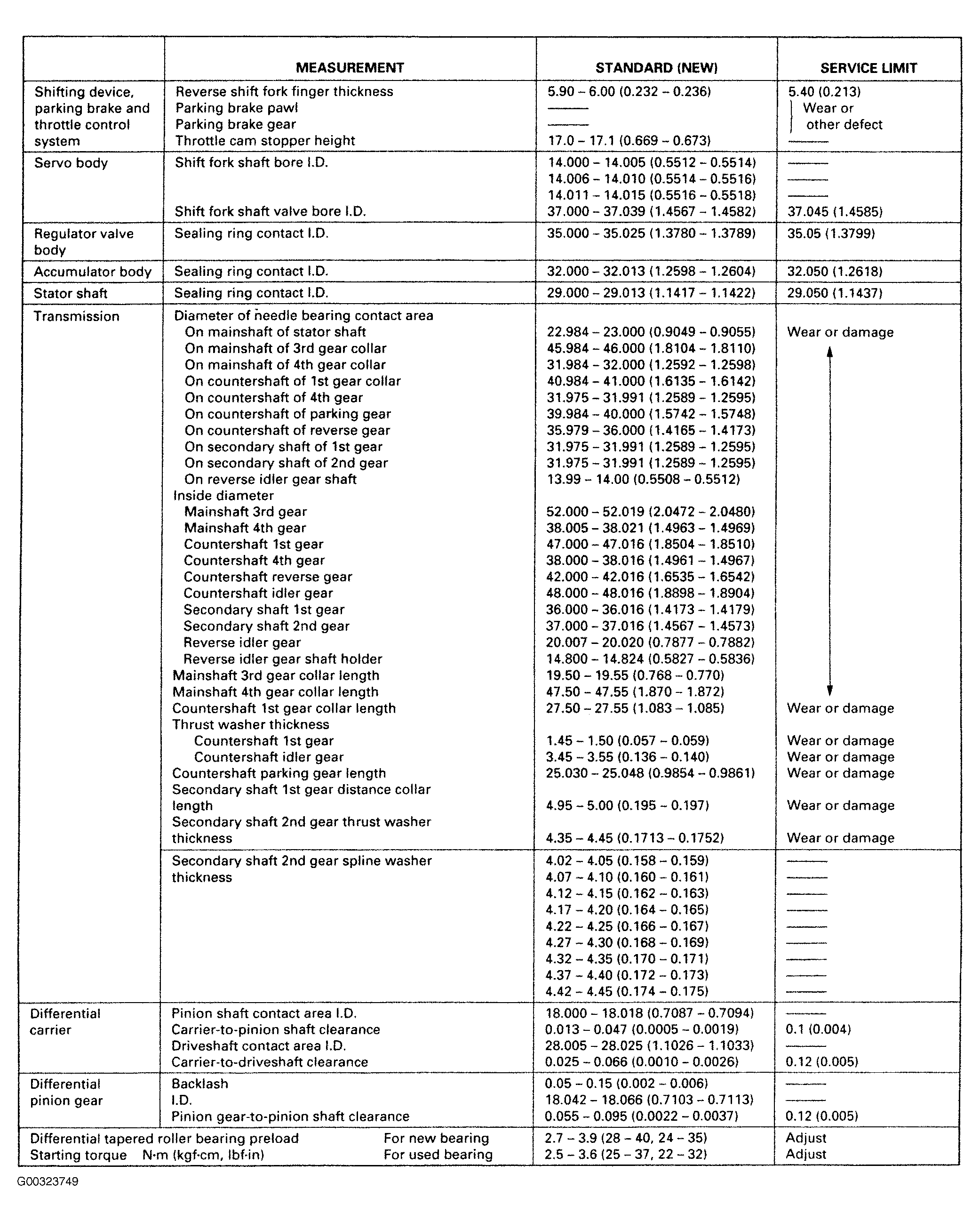

Fig 3: A6VA Transaxle Specifications Chart (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
