Transaxle Disassembly: Notes

NOTE: For exploded views of transaxle to assist with disassembly, see Fig 1 -Fig 6 .

NOTE: Clean all parts thoroughly in solvent or carburetor cleaner, and dry with compressed air. Blow out all passages.

NOTE: When removing the transmission right side cover, replace the following:

Right side cover gasket
Lock washers
Transmission housing gasket
"O" rings
Each shaft locknut and conical spring washer
Sealing washers

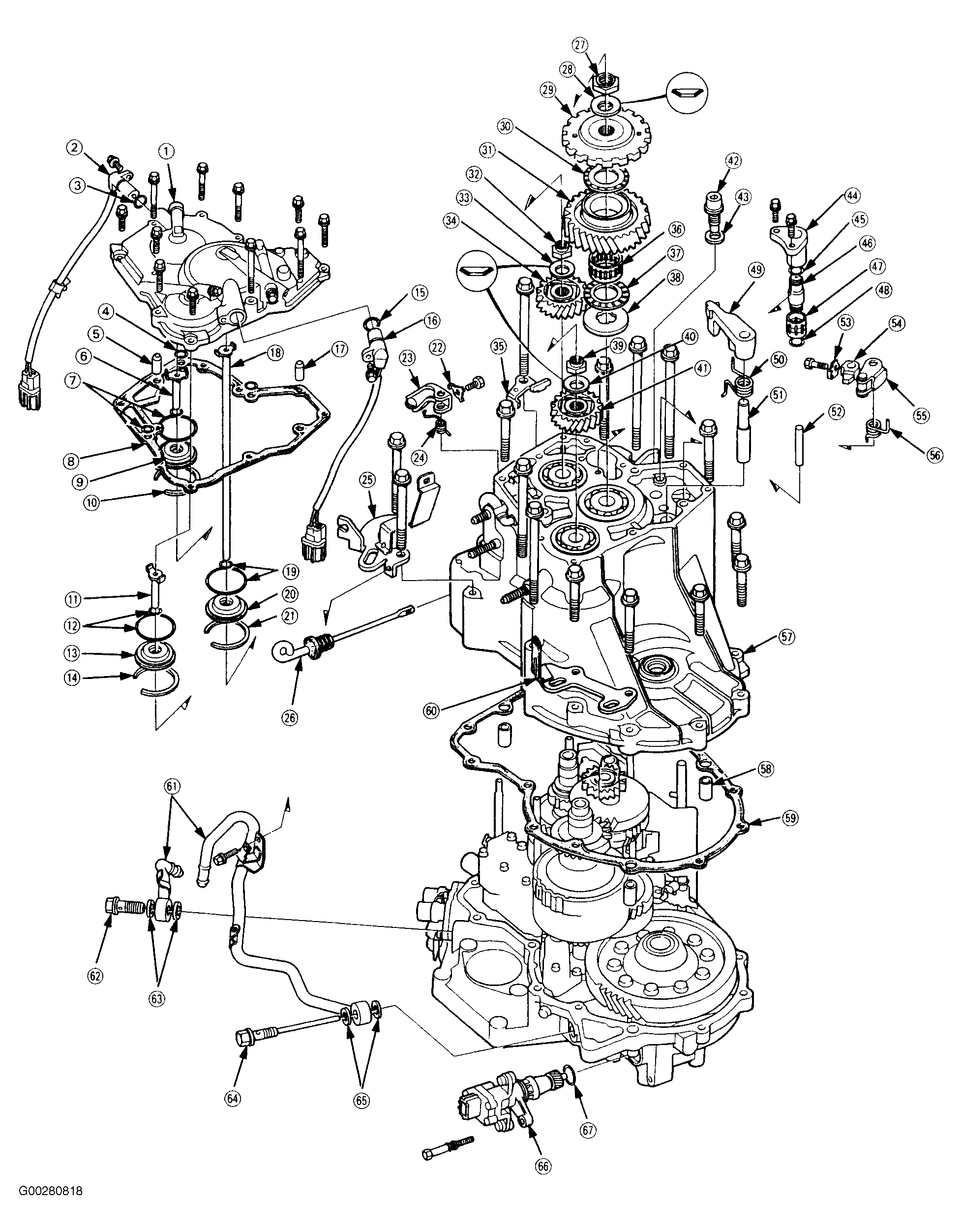

Fig 1: Exploded View Of Right Side Cover & Related Components (1 Of 2)

G00280818

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Exploded View Of Right Side Cover & Related Components (2 Of 2)

G00280819

Courtesy of AMERICAN HONDA MOTOR CO., INC.

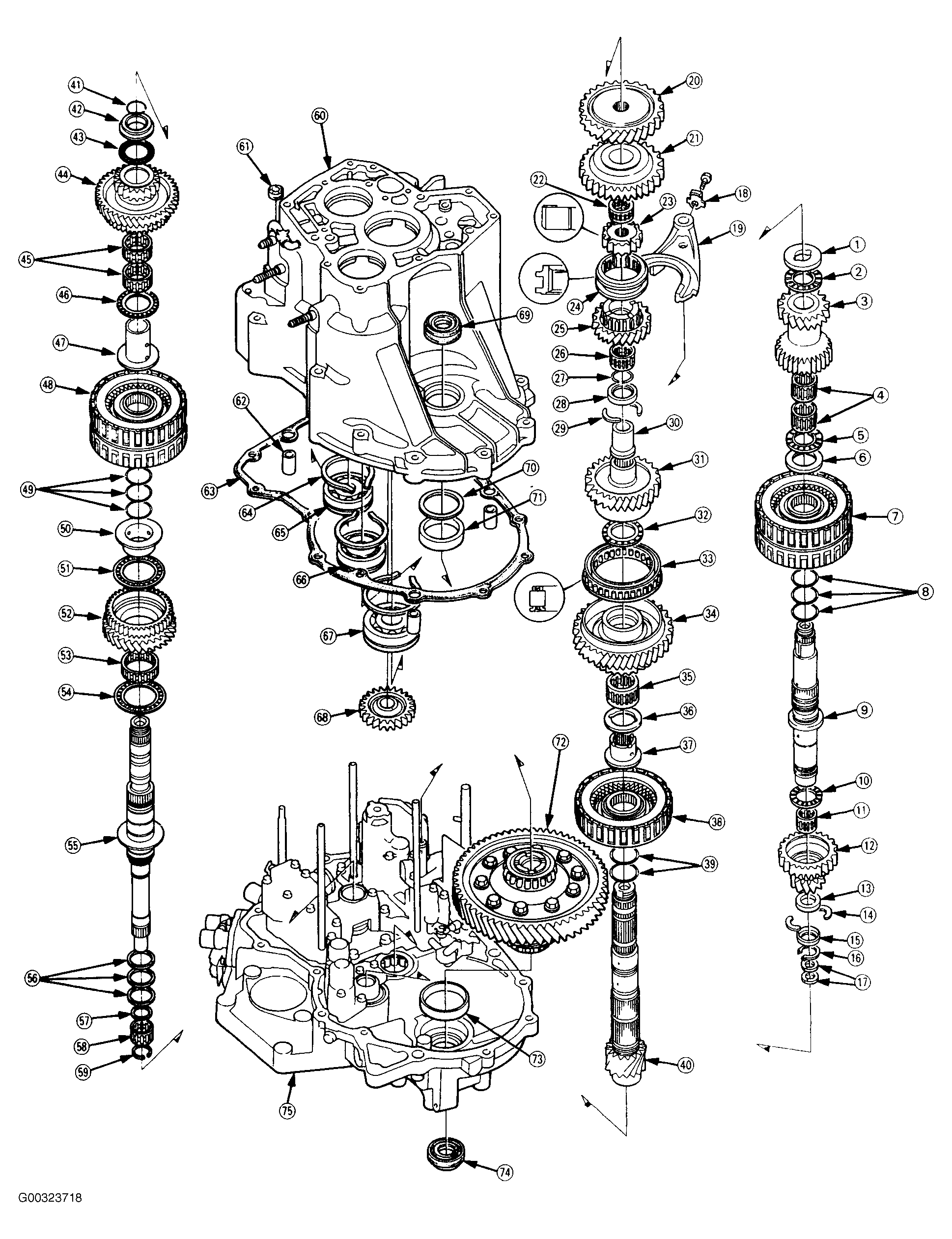

Fig 3: Exploded View Of Transaxle Housing & Internal Components (1 Of 2)

G00323718

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Exploded View Of Transmission Housing & Internal Components (2 Of 2)

G00323719

Courtesy of AMERICAN HONDA MOTOR CO., INC.

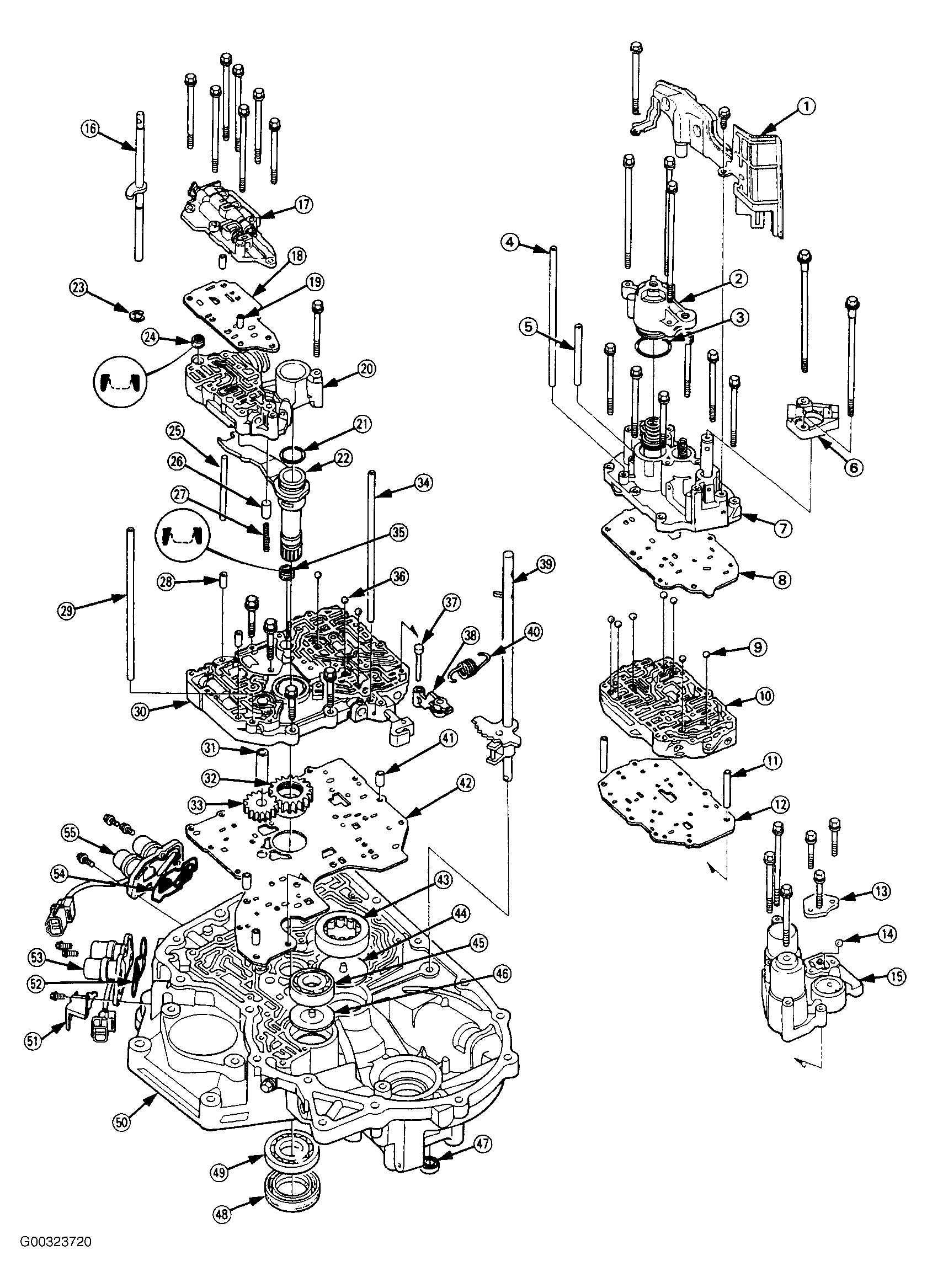

Fig 5: Exploded View Of Torque Converter Housing & Valve Body (1 Of 2)

G00323720

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Exploded View Of Torque Converter Housing & Valve Body (2 Of 2)

G00323721

Courtesy of AMERICAN HONDA MOTOR CO., INC.
