| Cooler Line Joint Bolt |
21 (28) |
| Countershaft Lock Nut |
123 (167) |
| Drain Plug |
36 (49) |
| Joint Bolt |
21 (28) |
| Lock-Up Control Solenoid Valve Assembly Bolt |
18 (12.0) |
| Main Valve Body Bolt |
| 6-mm Bolt |
|
| 8-mm Bolt |
13 (18) |
| Mainshaft Lock Nut |
123 (167) |
| Ring Gear Bolt |
74.5 (101) |
| Secondary Shaft Lock Nut |
123 (167) |
| Throttle Control Cable Bracket Bolt |
33 (44) |

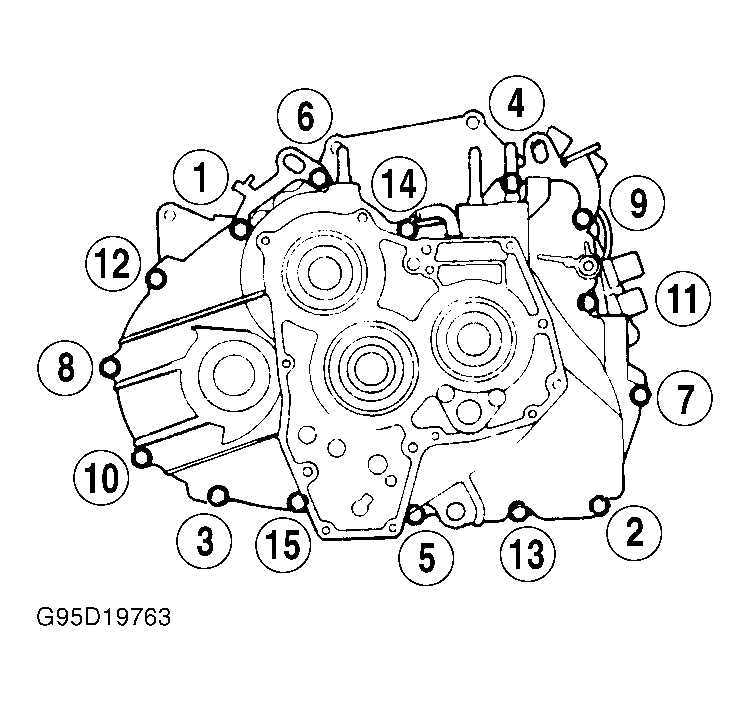

| Transaxle Housing Bolt |
33 (44) |
| INCH Lbs. (N.m) |
| A/T Gear Position Switch |
106 (12.0) |
| Accumulator Body Cover Bolt |
106 (12.0) |
| Accumulator Cover Bolt |
106 (12) |
| Fluid Strainer Bolt |
106 (12.0) |
| Parking Brake Lever Bolt |
124 (14) |
| Parking Brake Stop Bolt |
124 (14) |
| Regulator Valve Body Bolt |
106 (12.0) |
| Reverse Idler Gear Shaft Holder Bolt |
106 (12) |
| Reverse Shift Fork Bolt |
124 (14) |
| Reverse Idler Gear Shaft Holder Bolt |
106 (12) |
| Right Cover Bolt |
106 (12) |
| Servo Body Bolt |
106 (12) |
| Shift Control Solenoid Valve Assembly Bolt |
106 (12) |
| Throttle Control Lever Bolt |
72 (8) |
| Throttle Valve Body Bolt |
106 (12) |
