Under-Hood Abs Fuse/Relay Box

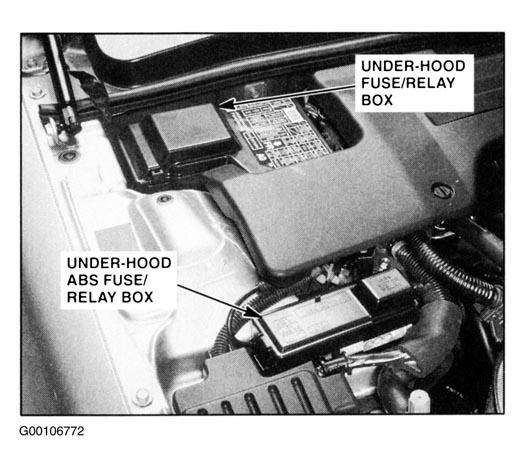

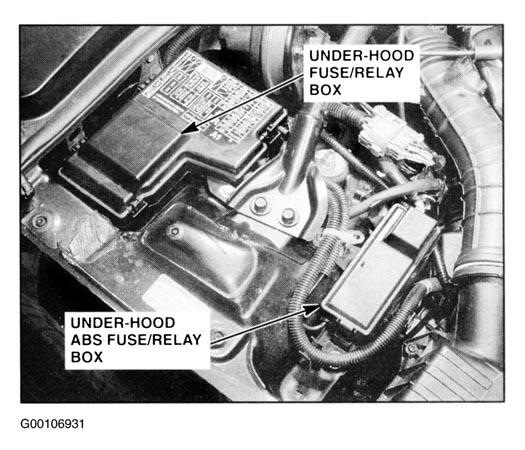

NOTE: Under-hood ABS fuse/relay box is located in right side of engine compartment. See Figure or Figure .

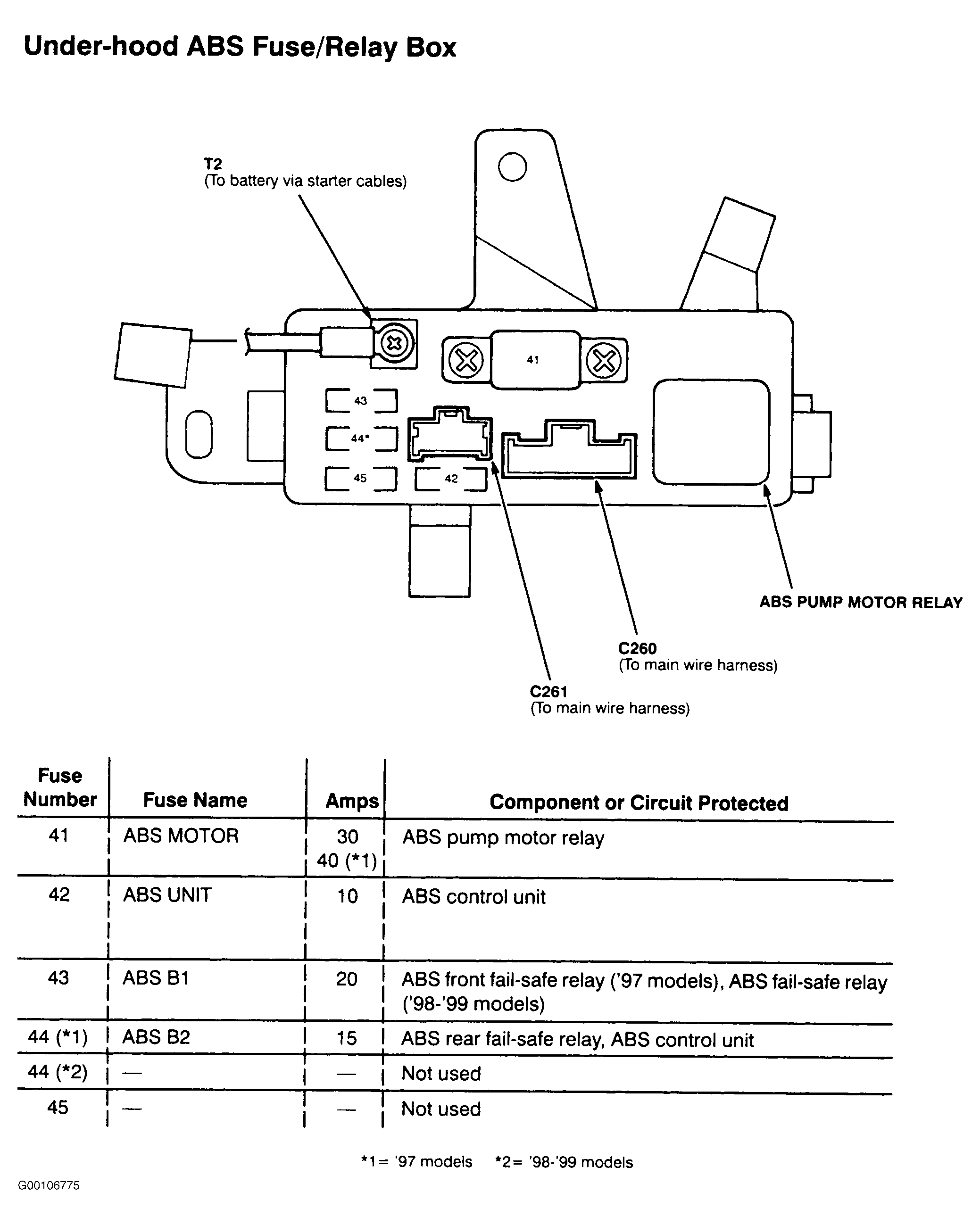

Fig 1: Identifying Under-Hood ABS Fuse/Relay Box Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
