Wiper/Washer Switch Test

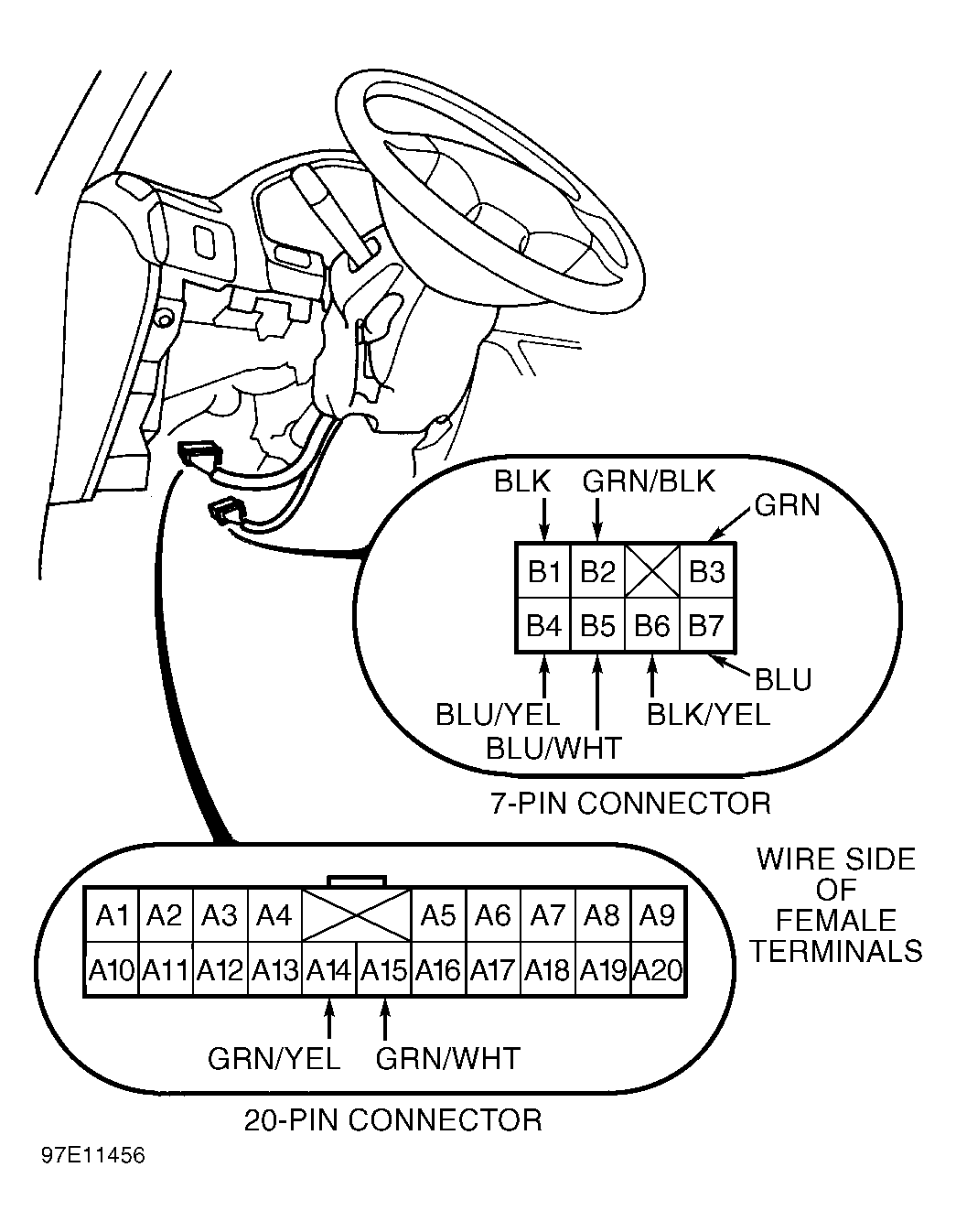

Turn ignition off. Remove lower instrument panel cover and knee bolster. Disconnect 7-pin and 20-pin harness connectors from main wire harness. Using an ohmmeter, check for continuity between wiper/washer connector terminals with switch in specified positions. See Fig 1 . See WIPER/WASHER SWITCH CONTINUITY table. Replace wiper/washer switch if it does not test as specified.
WIPER/WASHER SWITCH CONTINUITY
| Switch Position | Between Terminals No. | ||
|---|---|---|---|
| OFF | B5 & B7 | ||
| INT | B2 & B3; B5 & B7 | ||
| LO | B1 & B7 | ||
| HI | B1 & B4 | ||
| Mist ON | B1 & B4 | ||
| Washer ON | B2 & B6 | ||
| Intermittent ON | (1) A14 & A15 | ||
|
|||
