Integrated Control Unit
>>
Wiring Diagrams
Wiring Diagrams

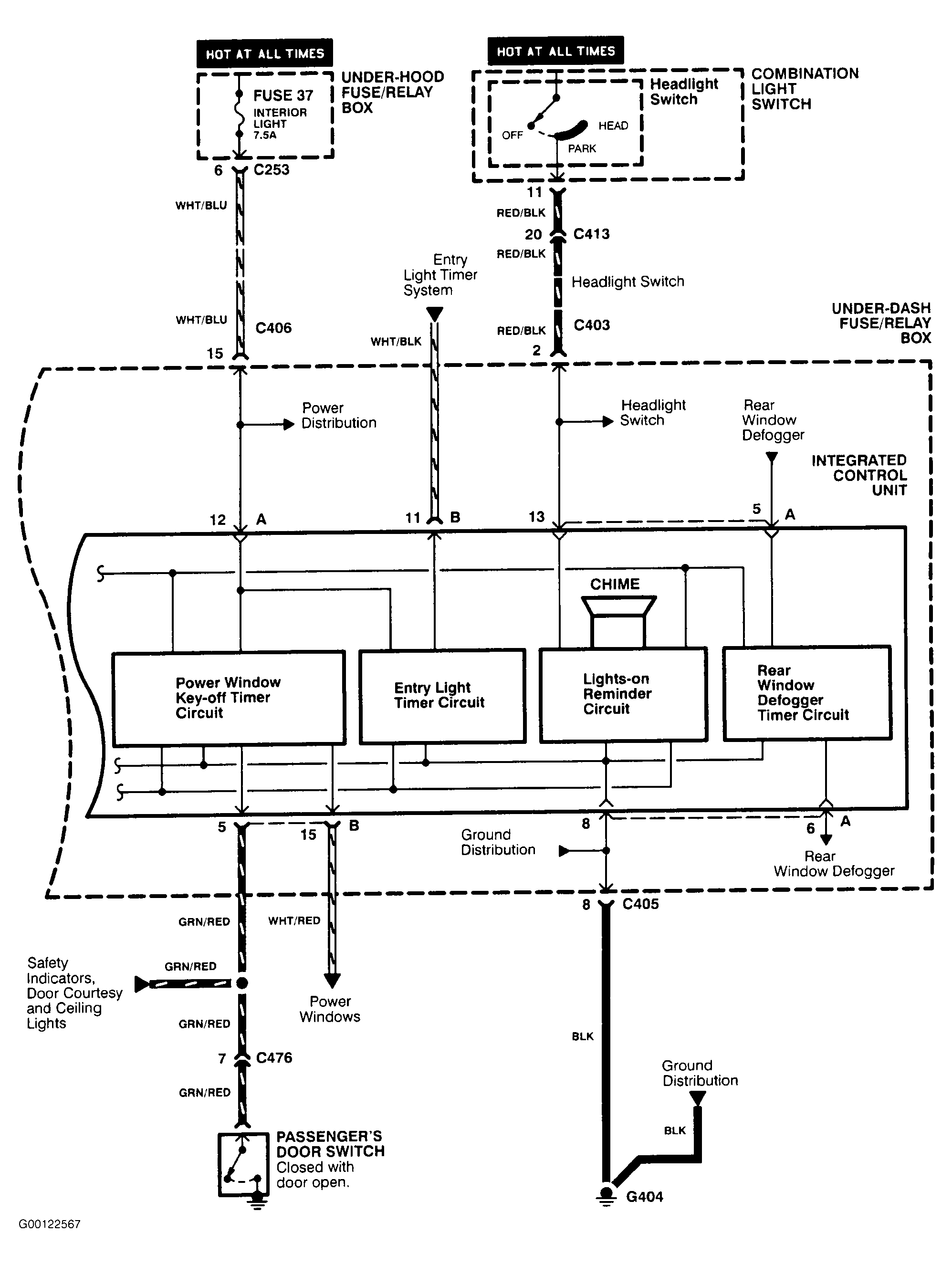

Fig 1: Integrated Control Unit Wiring Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

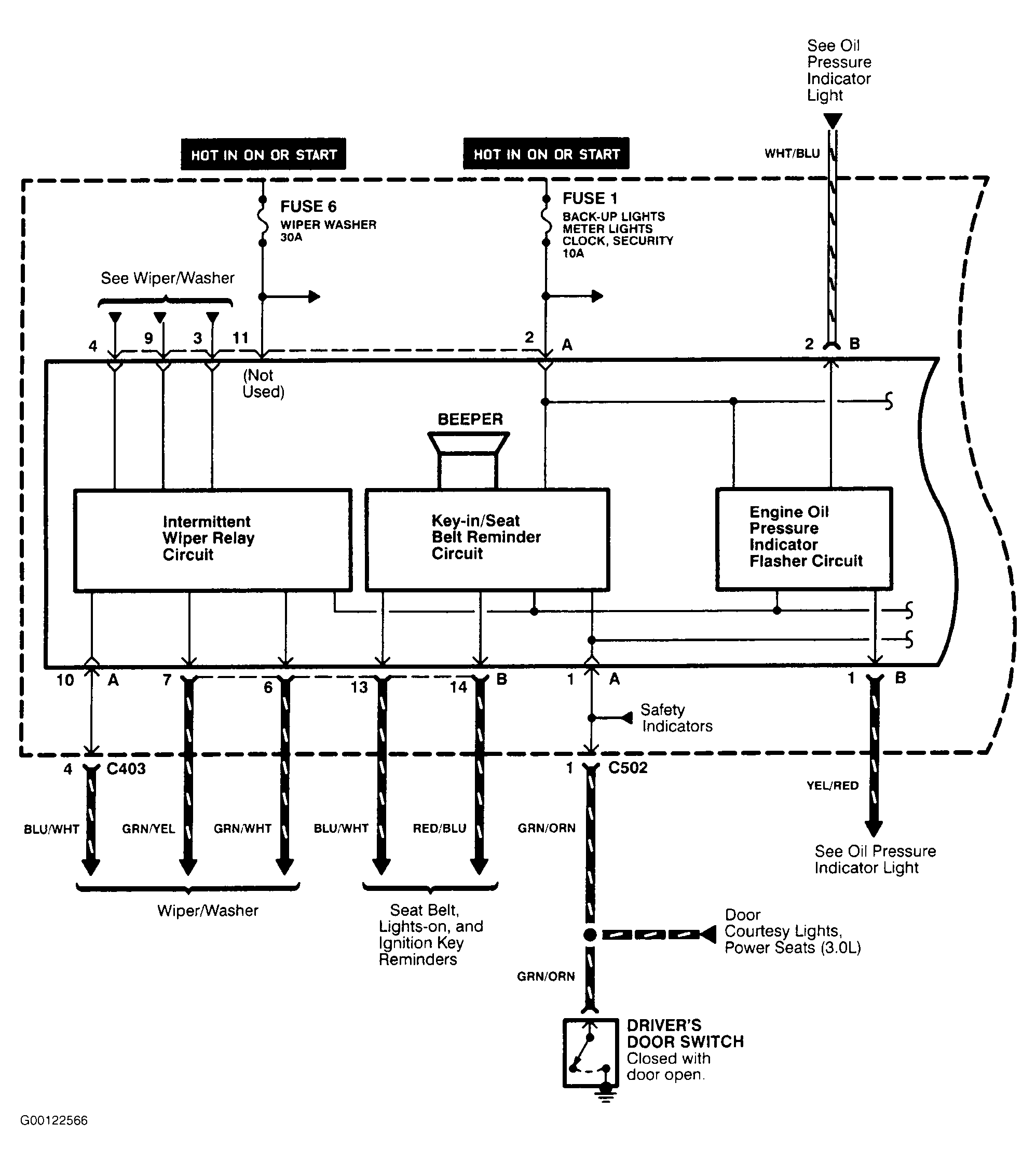

Fig 2: Integrated Control Unit Wiring Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
