Lights-On Reminder System

For connector identification, see Figure. For input test, see Fig 1.

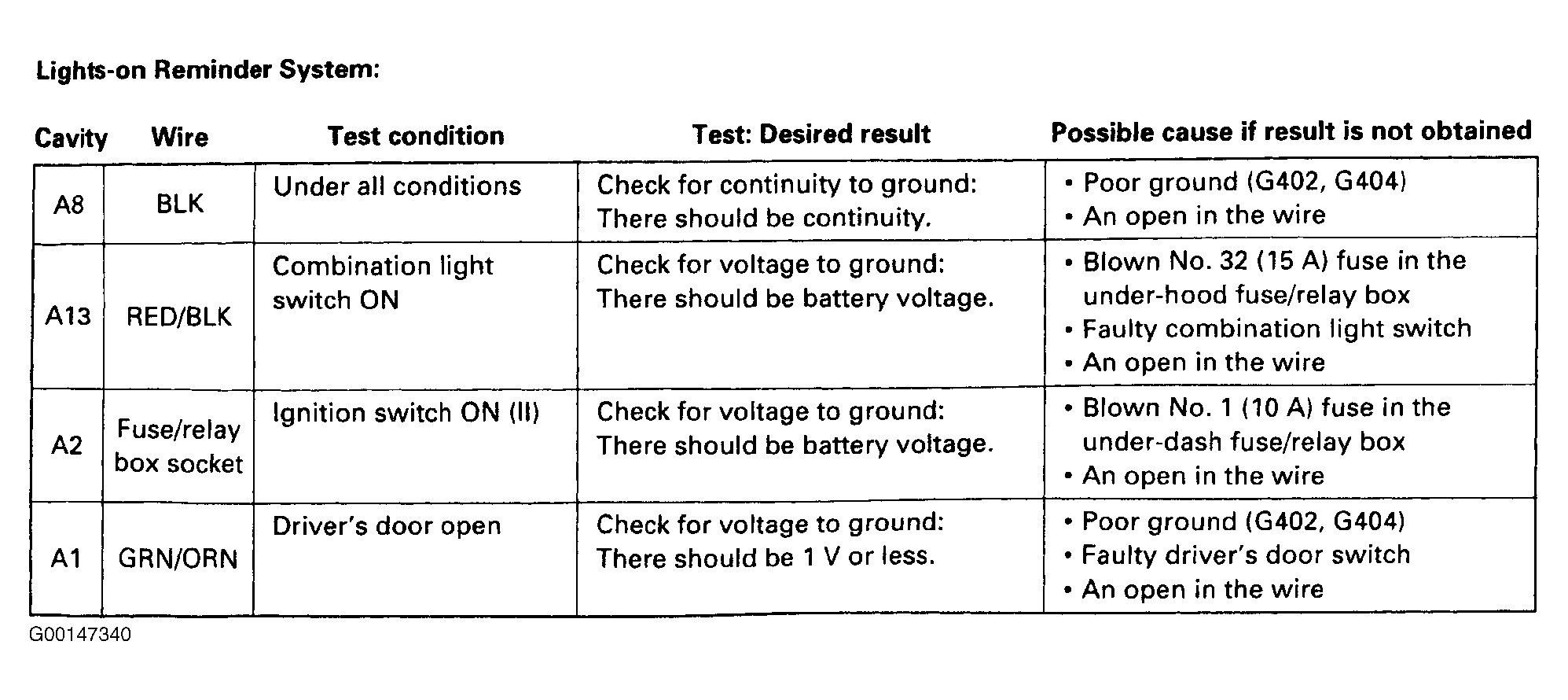

Fig 1: Lights-On Reminder System Input Test
G00147340Courtesy of AMERICAN HONDA MOTOR CO., INC.
