1997-98 Models
WARNING:
Do not smoke while working on fuel system. Keep open flame away from your work area.
- Relieve the fuel pressure (see FUEL PRESSURE ).
- Remove the seat cushion (see REAR SEAT REMOVAL/INSTALLATION ).
- Remove the access panel from the floor.
- Disconnect the 2P (C568) and 3P (C569) connectors.
- Disconnect the hose and quick-connect fittings (see FUEL TUBE/QUICK-CONNECT FITTINGS , FUEL TUBE/QUICK-CONNECT FITTINGS ).
- Jack up the vehicle, and support it with jackstands.

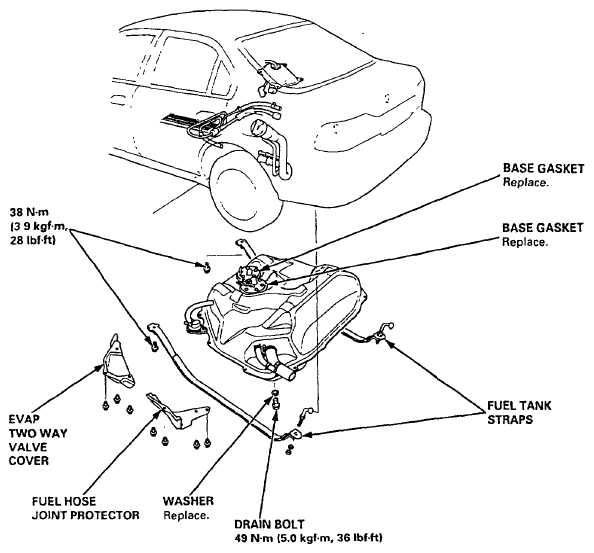

- Remove the EVAP two way valve cover and the fuel hose joint protector.
- Remove the drain bolt, and drain the fuel into an approved container.
- Disconnect the hoses (see FUEL TUBE/QUICK-CONNECT FITTINGS
).CAUTION:
- When disconnecting the hoses, slide back the clamps, then twist hoses as you pull, to avoid damaging them.
- Clean the flared joint of high pressure hoses thoroughly before reconnecting them.
- Place a jack, or other support, under the tank.
- Remove the strap nuts, and let the straps fall free.
- Remove the fuel tank.NOTE: The tank may stick on the undercoat applied to its mount. To remove, carefully pry it off the mount.
- Install the drain bolt with a new washer, then coat the drain bolt with Noxrust 124B, Allow the Noxrust dry for 20 minutes.
- Install the remaining parts in the reverse order of removal.
