Fuel Pump: Replacement

WARNING: Do not smoke while working on fuel system. Keep open flames away from your work area.
  1. Remove the seat cushion (see REAR SEAT REMOVAL/INSTALLATION ).
  2. Remove the access panel from the floor.
  3. Disconnect the 2P connector from the fuel pump.
  4. Remove the fuel pump mounting nuts.
  5. Remove the fuel pump from the fuel tank.
  6. Install parts in the reverse order of removal.

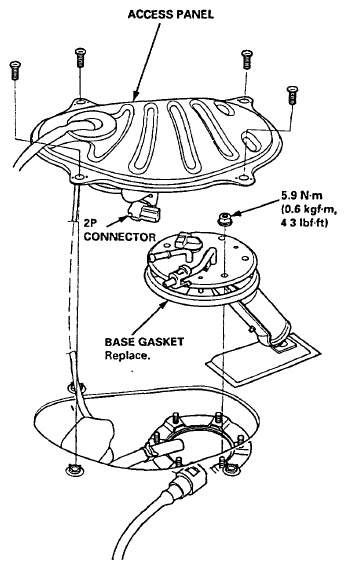

    Fig 1: Identifying Access Panel, Fuel Pump 2P Connector And Base Gasket
    G06288009Courtesy of AMERICAN HONDA MOTOR CO., INC.
