Fuel Pressure Regulator: Replacement

WARNING: Do not smoke while working on fuel system. Keep open flame away from your work area.

Place a shop towel under the fuel pressure regulator, then relieve fuel pressure (see FUEL PRESSURE ).
Disconnect the vacuum hose and fuel return hose.
Remove the two 6 mm retainer bolts.

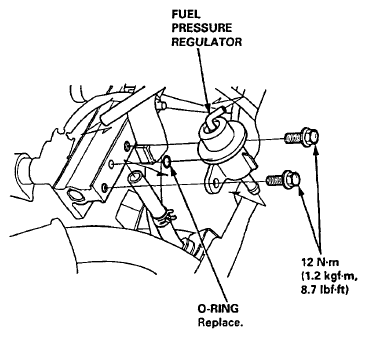

Fig 1: Fuel Pressure Regulator And O-Ring With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE:
- Replace the O-ring.
- When assembling the fuel pressure regulator, apply clean engine oil to the O-ring and assemble it into its proper position, taking care not to damage the O-ring.
