1999-2000 Models

NOTE: Check fuel system lines, hoses, fuel filter, and other components for damage, leaks and deterioration, and replace if necessary.

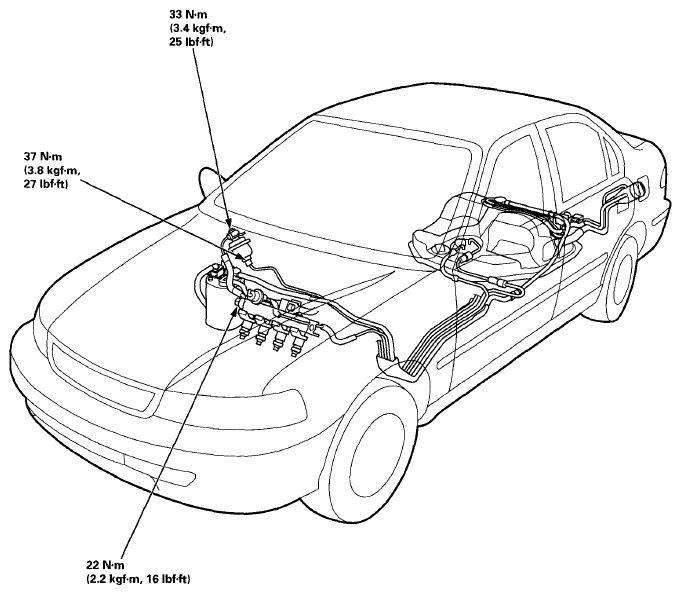

Fig 1: Fuel Lines With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Check all hose clamps and retighten if necessary.

: Do not disconnect the hose from the pipe.

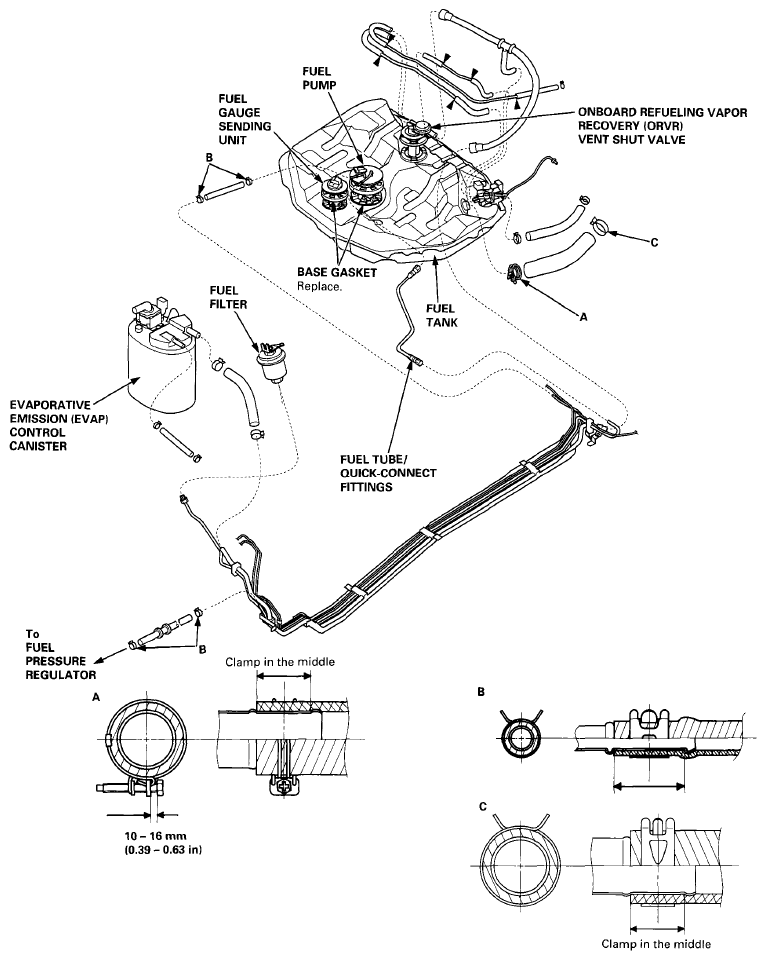

Fig 2: Identifying Fuel Lines

Courtesy of AMERICAN HONDA MOTOR CO., INC.
