Starter Replacement

  1. Disconnect the battery negative cable.
  2. Disconnect the starter cable from the B terminal on the solenoid, then disconnect the BLK/WHT wire from the S terminal.

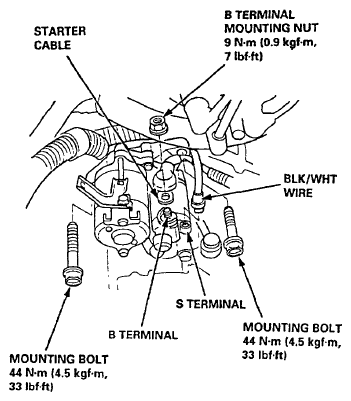

    Fig 1: Starter Cable, B Terminal Mounting Nut And BLK/WHT Wire With Torque Specifications
    G06290956Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the two bolts holding the starter, then remove the starter.
  4. Install in the reverse order of removal.
    NOTE: When installing the starter cable, make sure that the crimped side of the ring terminal is facing out.
    Fig 2: Identifying Crimped Side Of Ring Terminal And Nut
    G06290957Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Connect the battery positive cable and negative cable to the battery.
