Preliminary Inspection

NSX/NSX-T four wheel alignment requires the use of equipment designed specifically for four wheel independent suspensions and capable of immediate feedback.

NOTE: For proper inspection/adjustment of the wheel alignment, check and adjust the following before checking the alignment.

Check that the suspension is not modified.
Check the tire size and tire pressure See TIRE PRESSURE & SIZE .
Check the runout of the wheels and tires.
Check the suspension ball joints. (Hold a wheel with your hands, move it up and down Right and left, to check for wobbling.)

Check the height of each suspension. See RIDING HEIGHT SPECIFICATIONS .

TIRE PRESSURE & SIZE

Tire	Size	Tire Pressure PSI (KPA)
Front	215/45 ZR16	33 (230)
Rear	245/40 ZR17	40 (275)

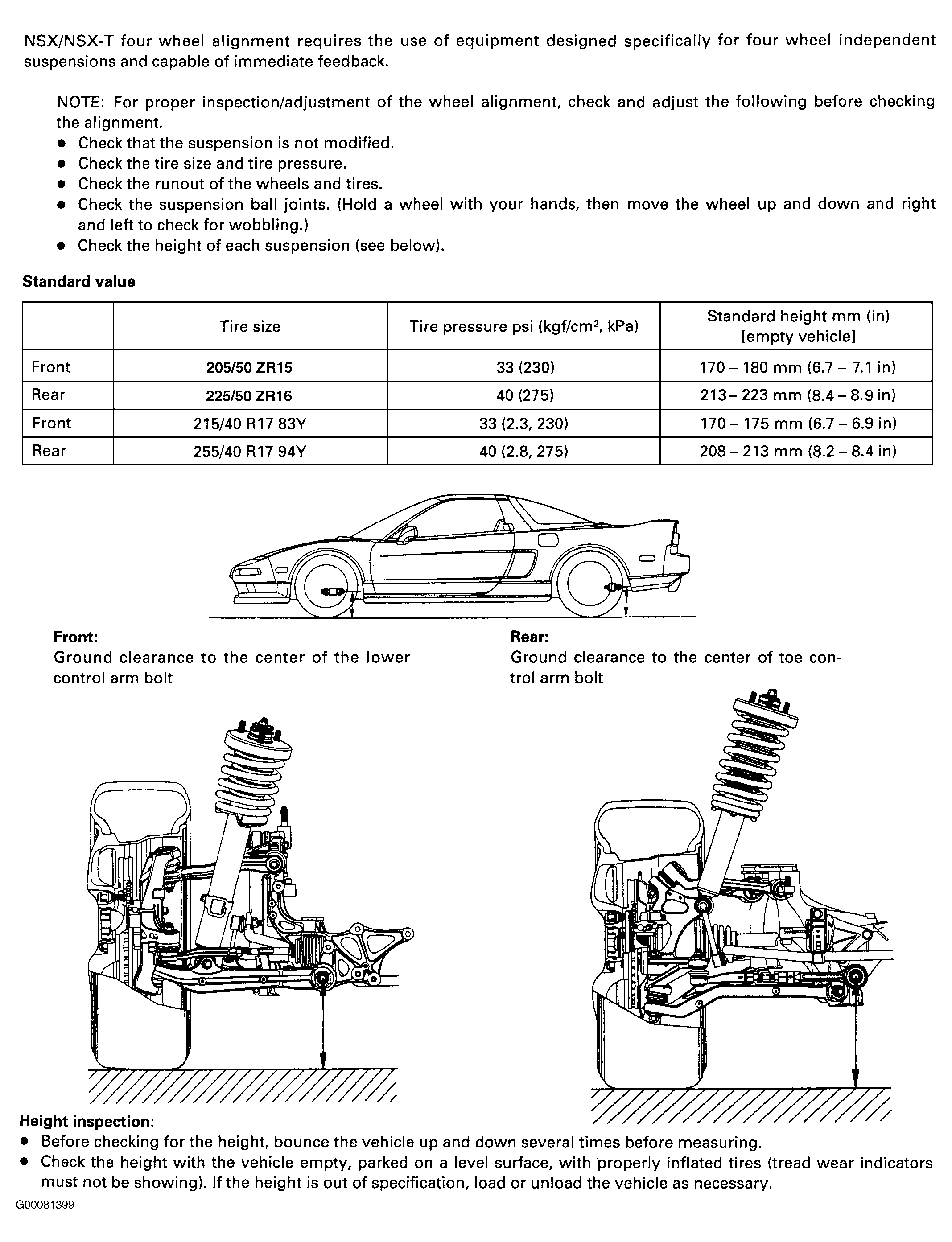

Fig 1: Identifying Ride Height Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
