Inspecting Idle Speed

  1. Start the engine and let it warm up until the cooling fan comes on. Ensure all accessories are off.
  2. Connect a tachometer to the test tachometer connector. Connect power for tachometer to jump start terminal located in the engine compartment fuse/relay box. See Fig 1 .

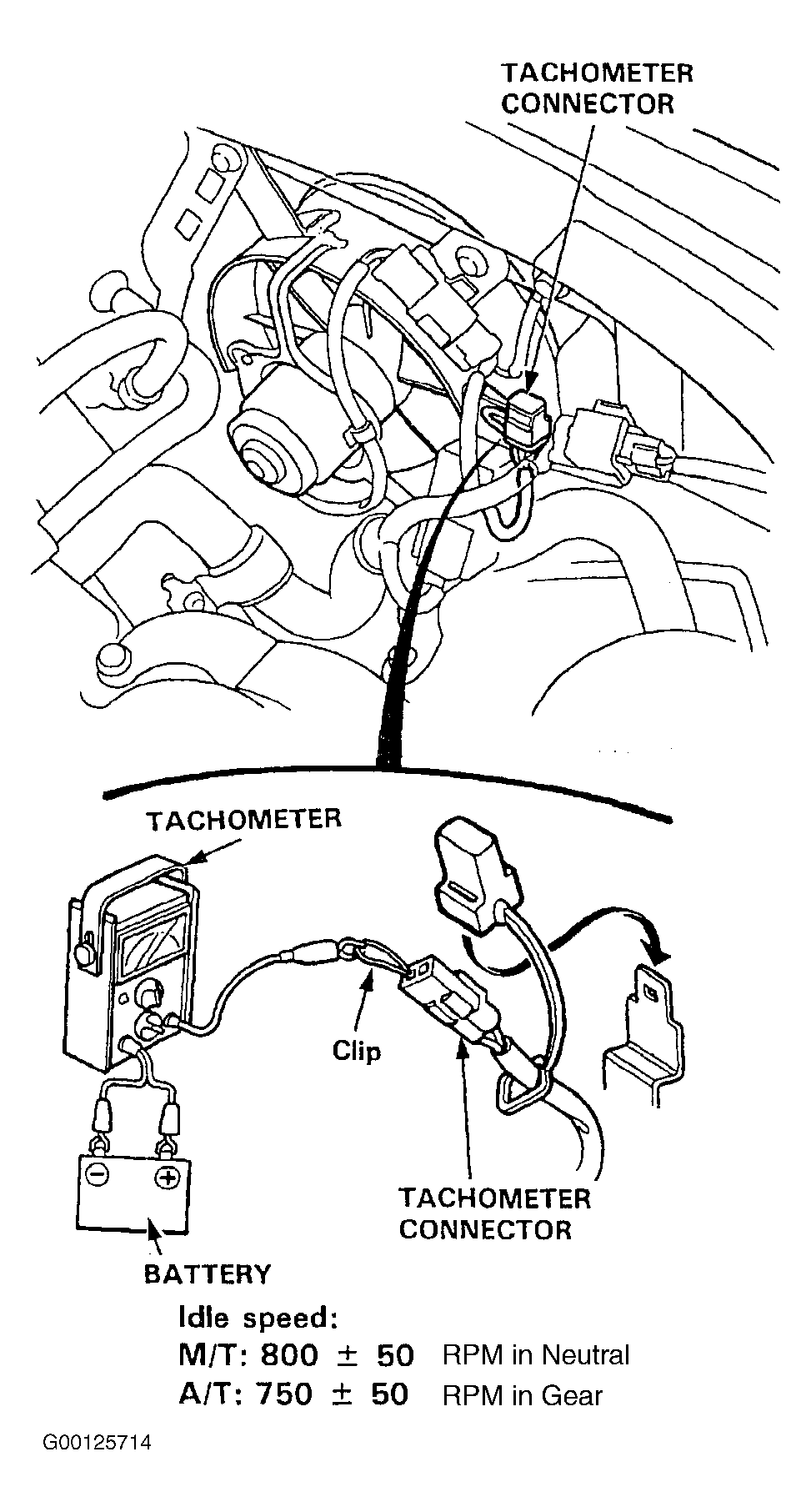

    Fig 1: Connecting Test Tachometer
    G00125714Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. For engine idle speed, see ENGINE IDLE SPEED  .
  4. For adjustment procedures, see 1991-2001 ON-VEHICLE ADJUSTMENTS -- NSX & NSX-T article.
ENGINE IDLE SPEED

Application RPM
Manual Transmission 800 +/- 50
Automatic Transmission 780 +/- 50
Fast Idle 1100 To 1900
