Modulator Unit

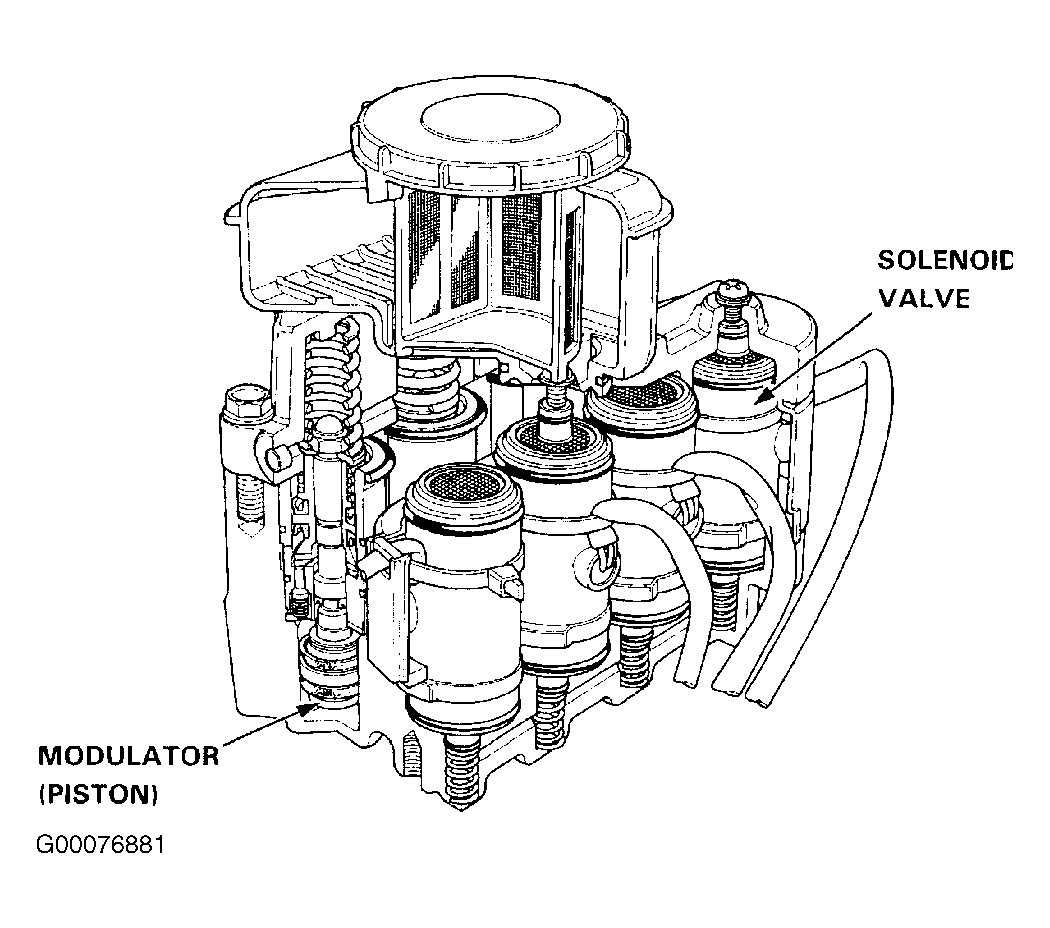

Modulators and solenoid valves for each wheel are integrated in the modulator unit. Modulators for front and rear brakes are of independent construction. Solenoid valve features quick response (5 ms or less). Inlet and outlet valves are integrated in the solenoid valve unit. See Figure .
