Component Locations

NOTE: For component locations, refer to illustrations. See Fig 1 -Fig 3 .
COMPONENT LOCATIONS

Component Location
ABS Control Unit Behind Glove Compartment
ABS Fail-Safe Relays In Underhood Relay Box B
ABS Motor Relay In Underhood Fuse/Relay
ALB Or ABS Fuse Underhood Fuse/Relay Box
Inspection Connector Under Glove Box
Service Check Connector Under Glove Compartment
Solenoid Unit Left Front Of Luggage Compartment
Speed Sensor At Respective Wheel
Underhood Fuse/Relay Box Right Front Of Luggage Compartment
Fig 1: Locating Anti-Lock Brake System Components
G00076888Courtesy of AMERICAN HONDA MOTOR CO., INC.

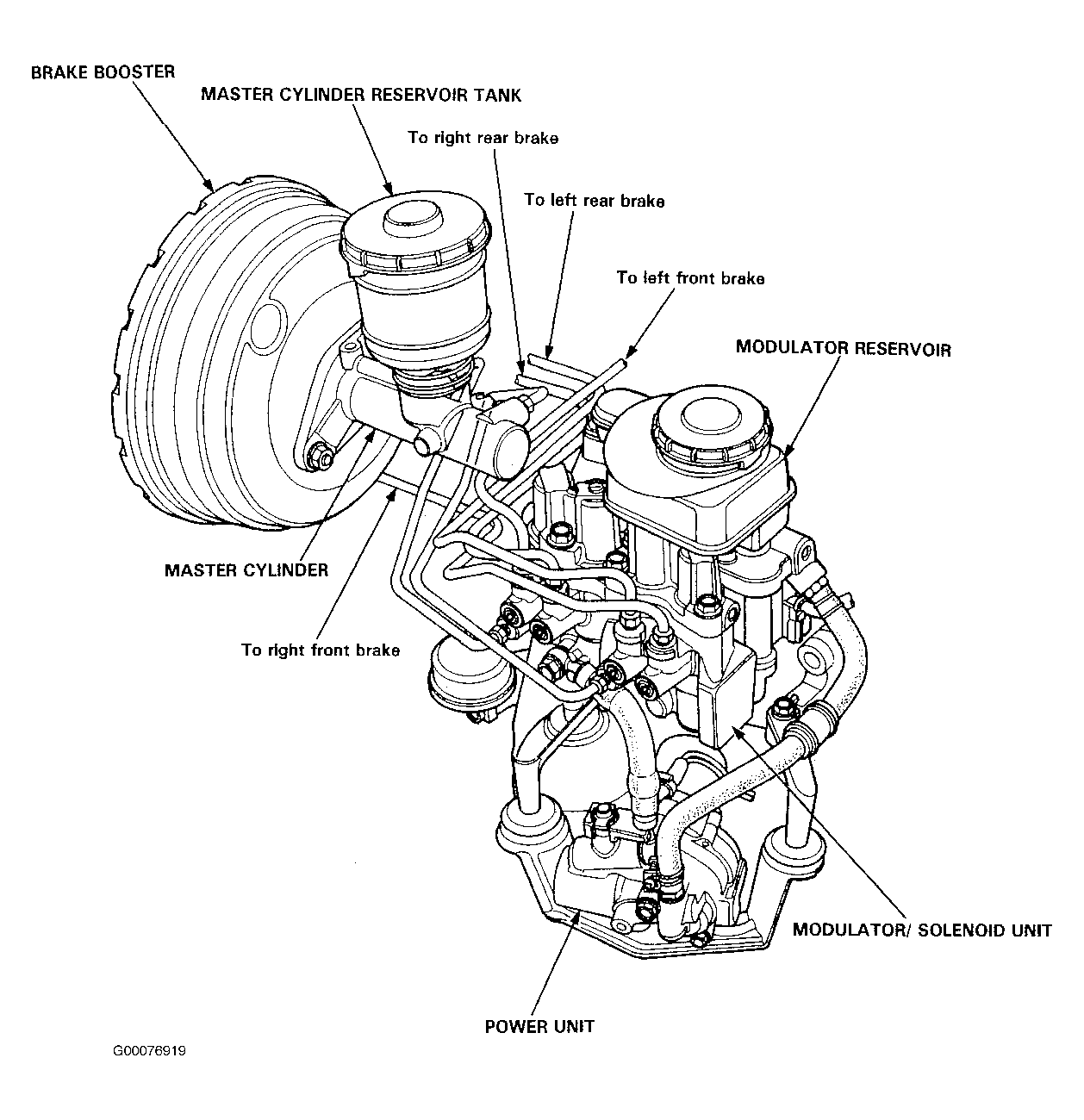

Fig 2: Identifying Main ABS Hydraulic Components
G00076919Courtesy of AMERICAN HONDA MOTOR CO., INC.

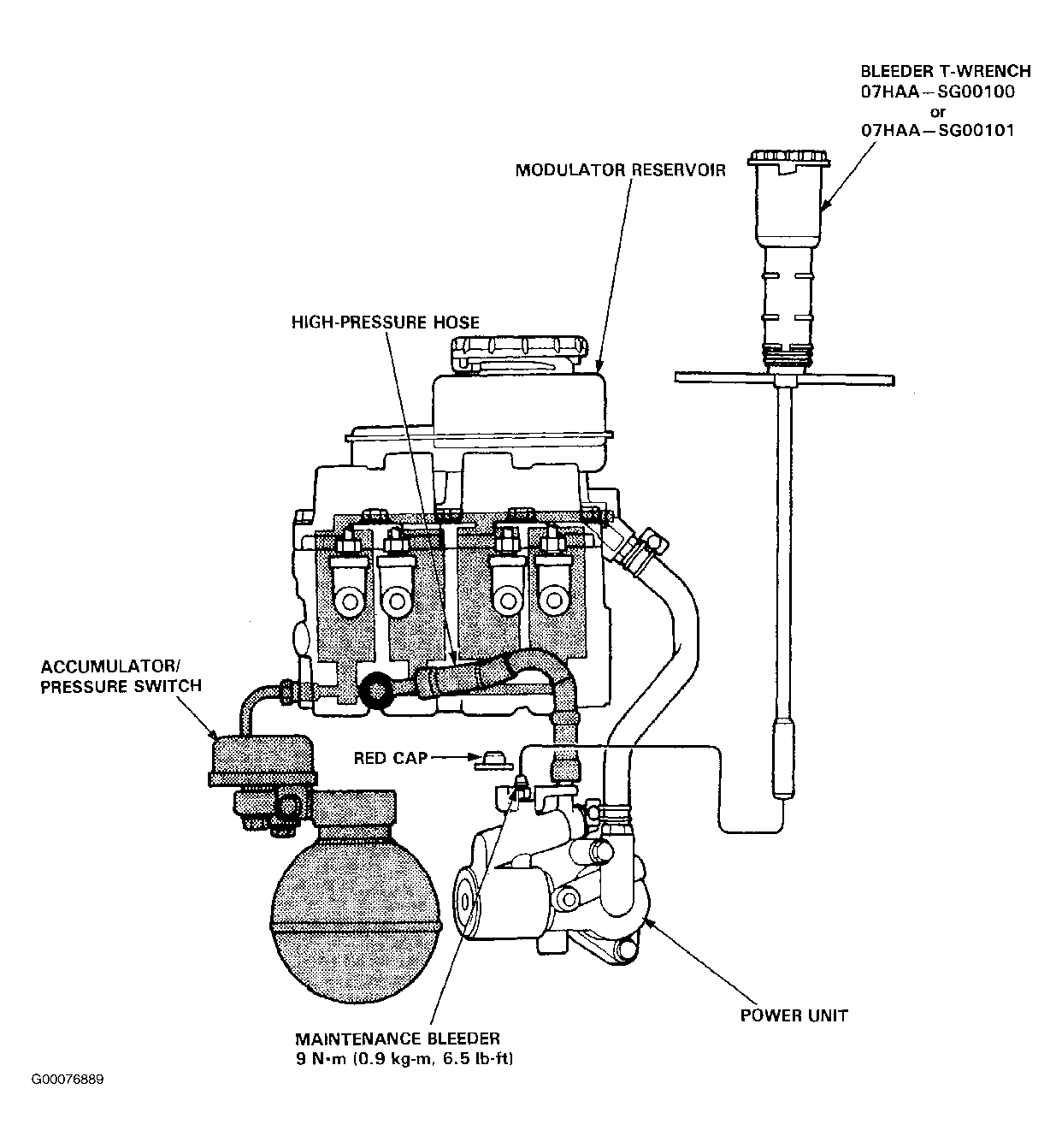

Fig 3: Locating Maintenance Bleeder Screw
G00076889Courtesy of AMERICAN HONDA MOTOR CO., INC.
