Integrated Control Unit

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2005 Acura NSX, 2004 Acura NSX, 2003 Acura NSX-T, 2003 Acura NSX, and 2002 Acura NSX-T. However, it is still accessible from the selected car via links, so may be relevant.

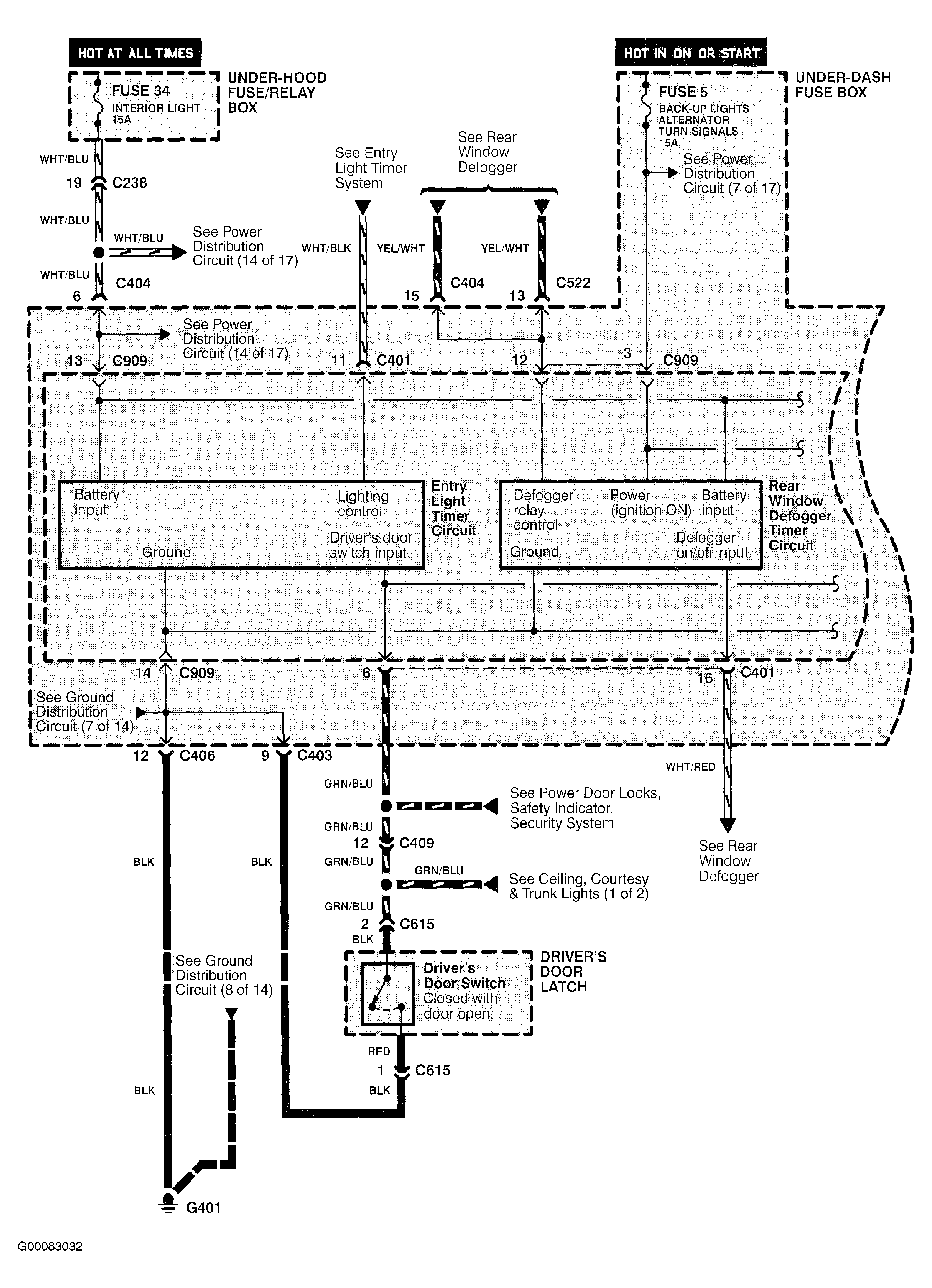

Fig 1: Integrated Control Unit Circuit Wiring Diagram (1 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

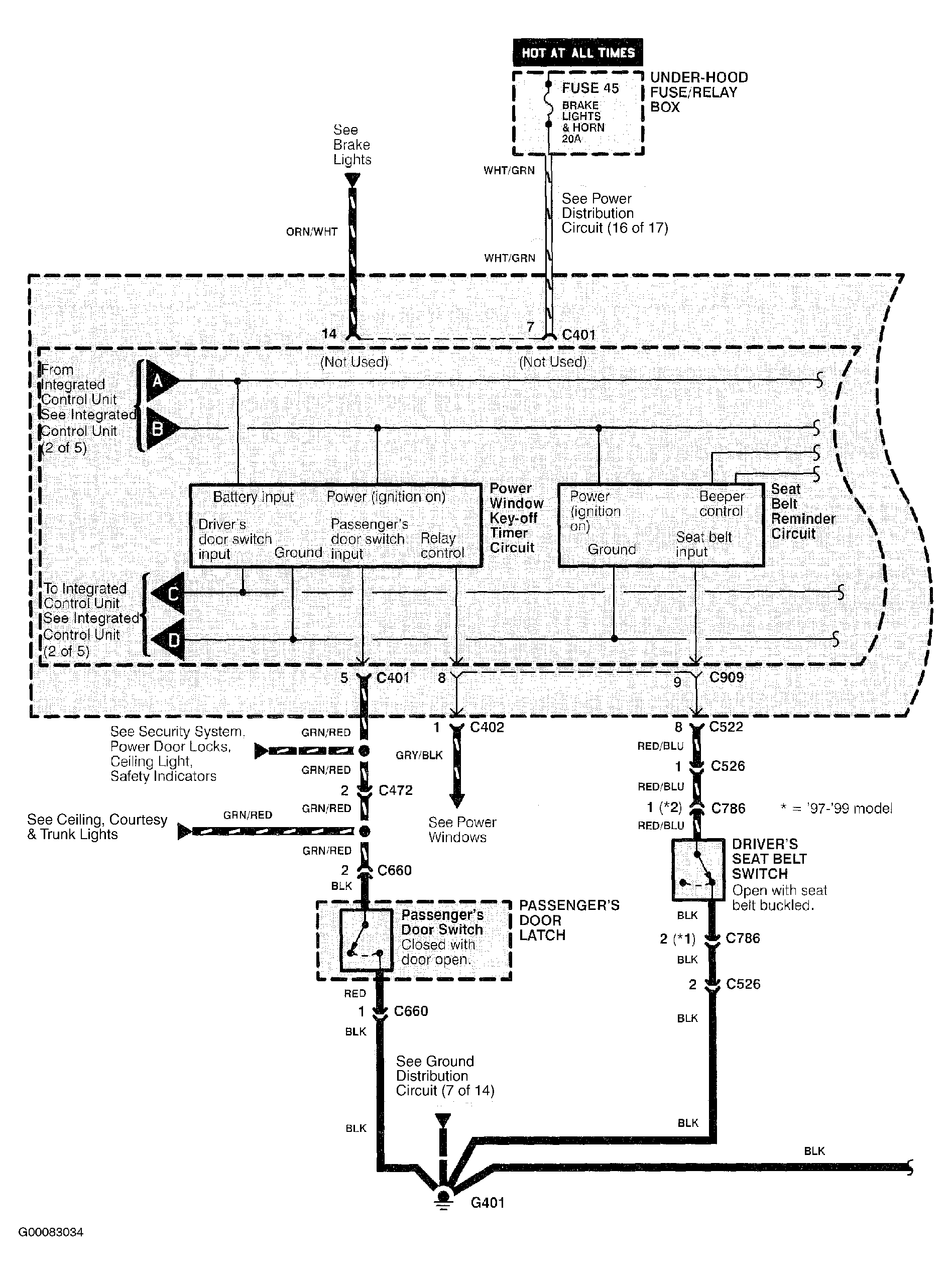

Fig 2: Integrated Control Unit Circuit Wiring Diagram (2 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

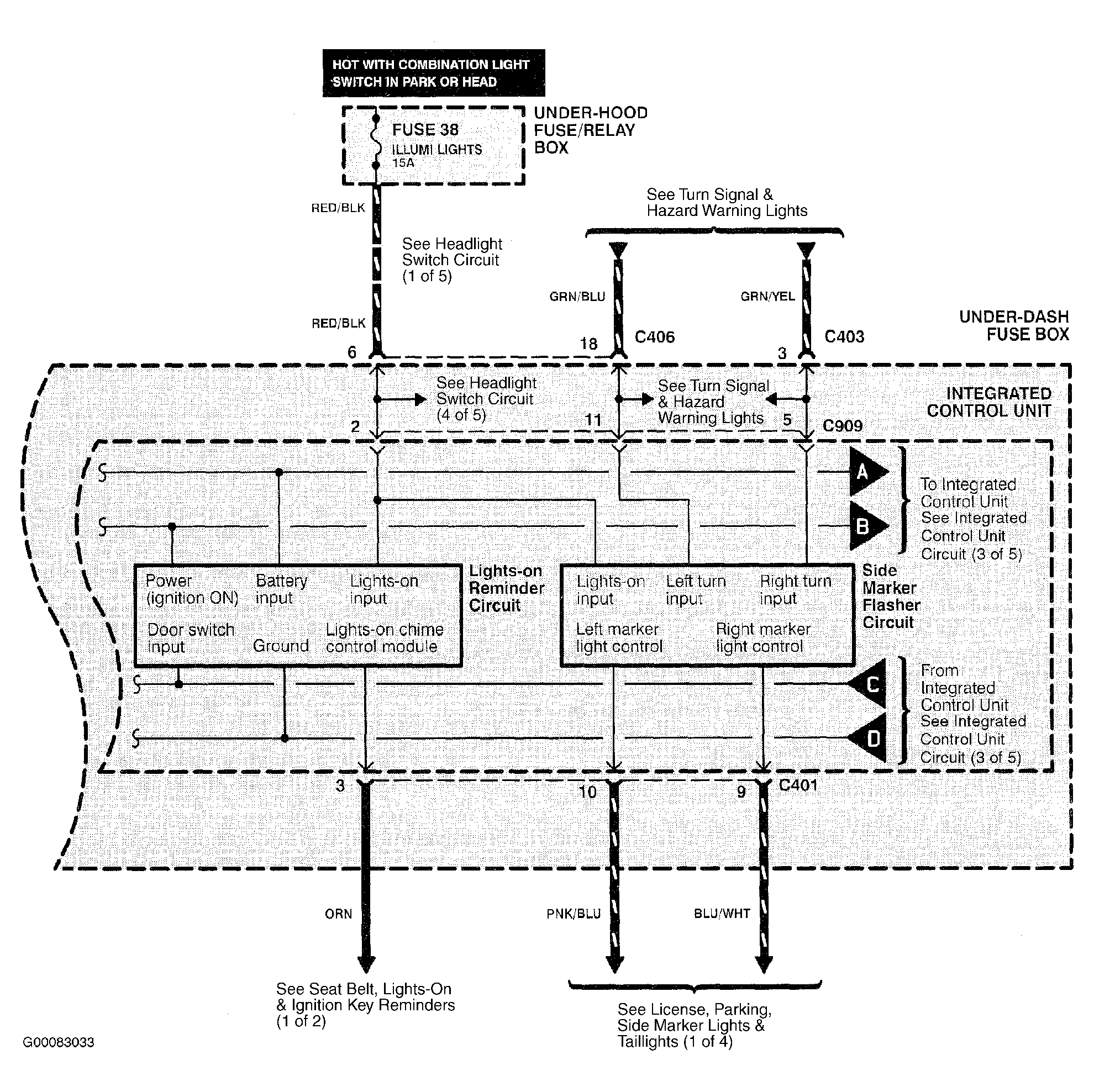

Fig 3: Integrated Control Unit Circuit Wiring Diagram (3 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

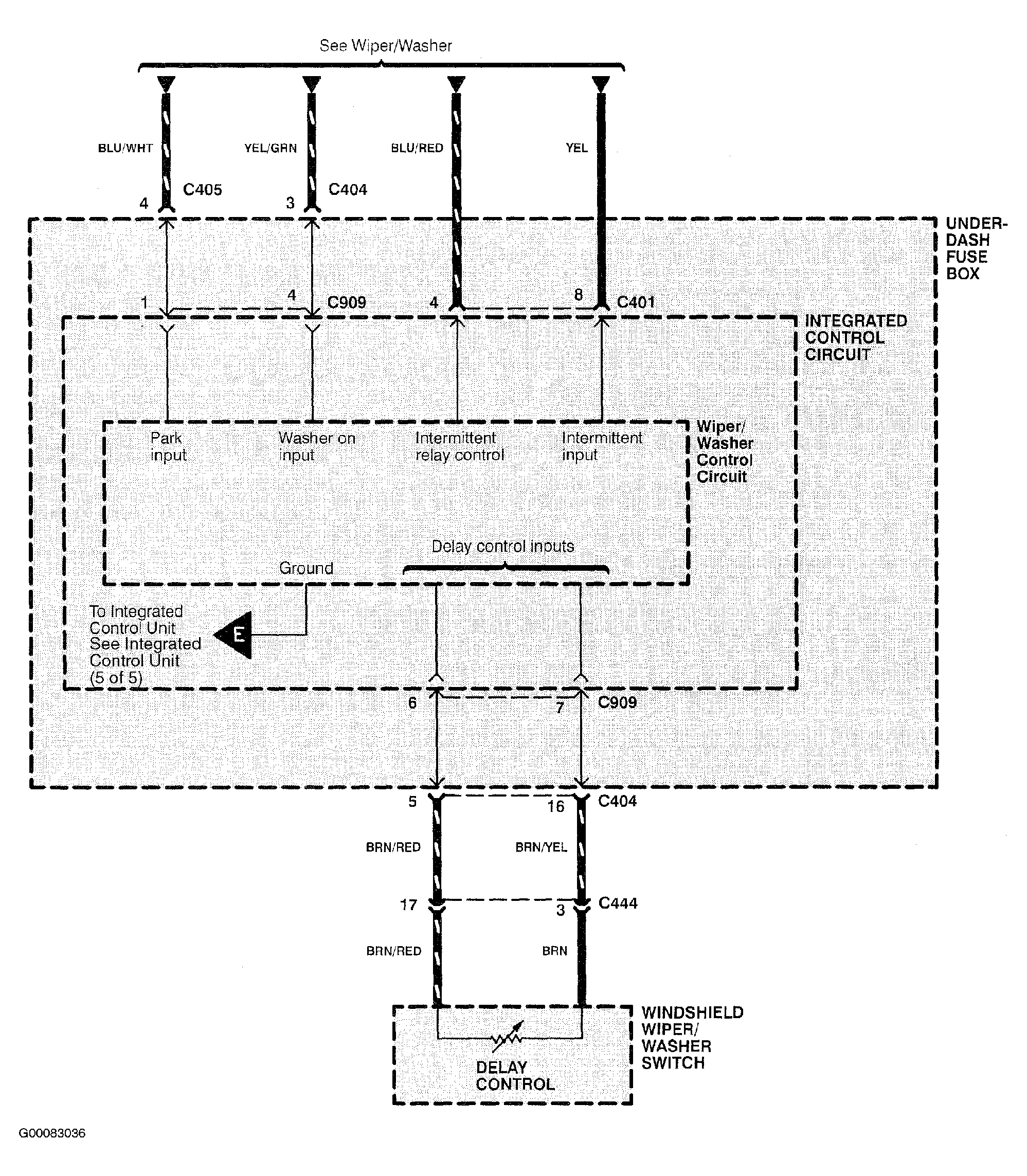

Fig 4: Integrated Control Unit Circuit Wiring Diagram (4 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

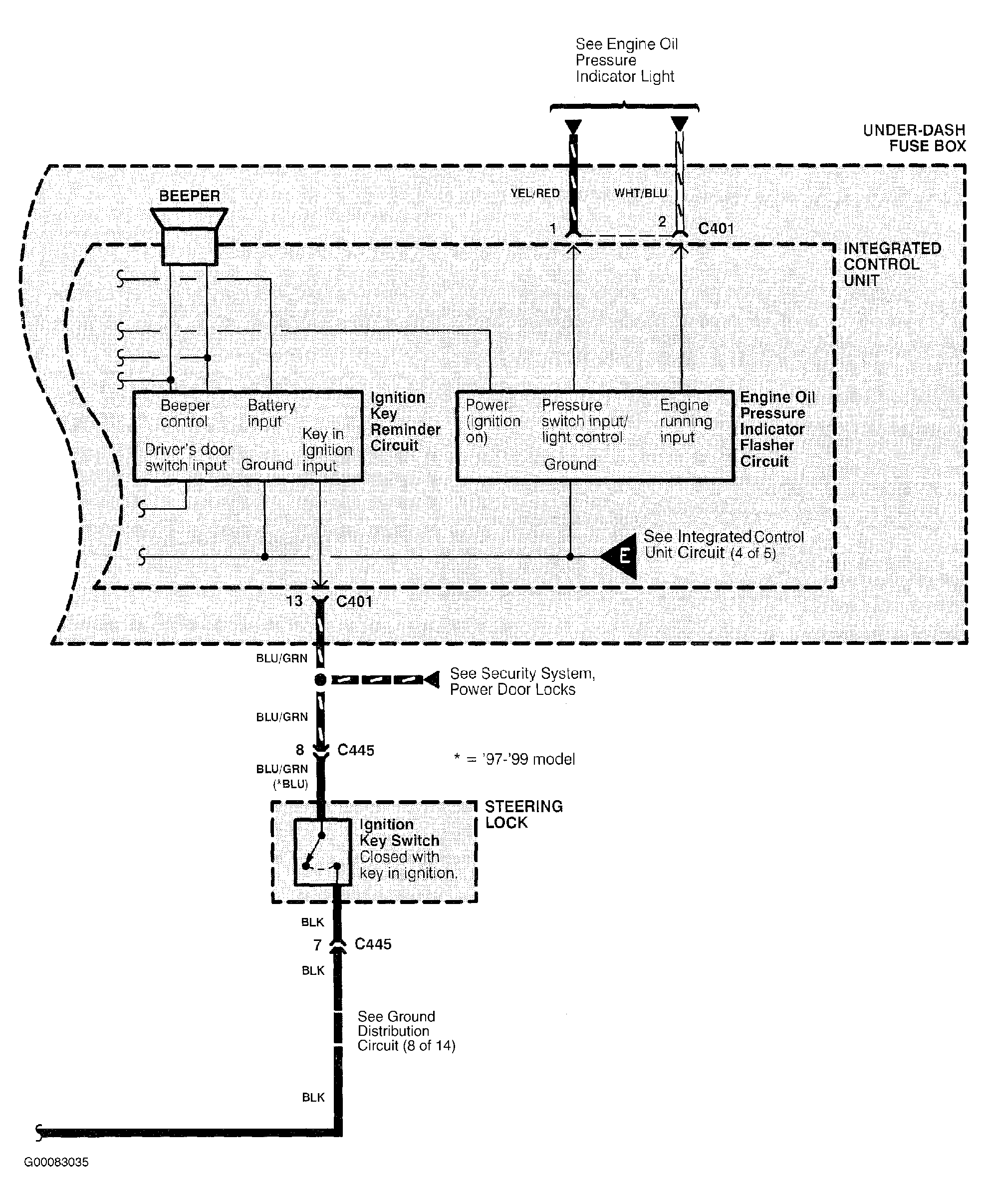

Fig 5: Integrated Control Unit Circuit Wiring Diagram (5 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
