Traction Control System (TCS)
Traction Control System (TCS)

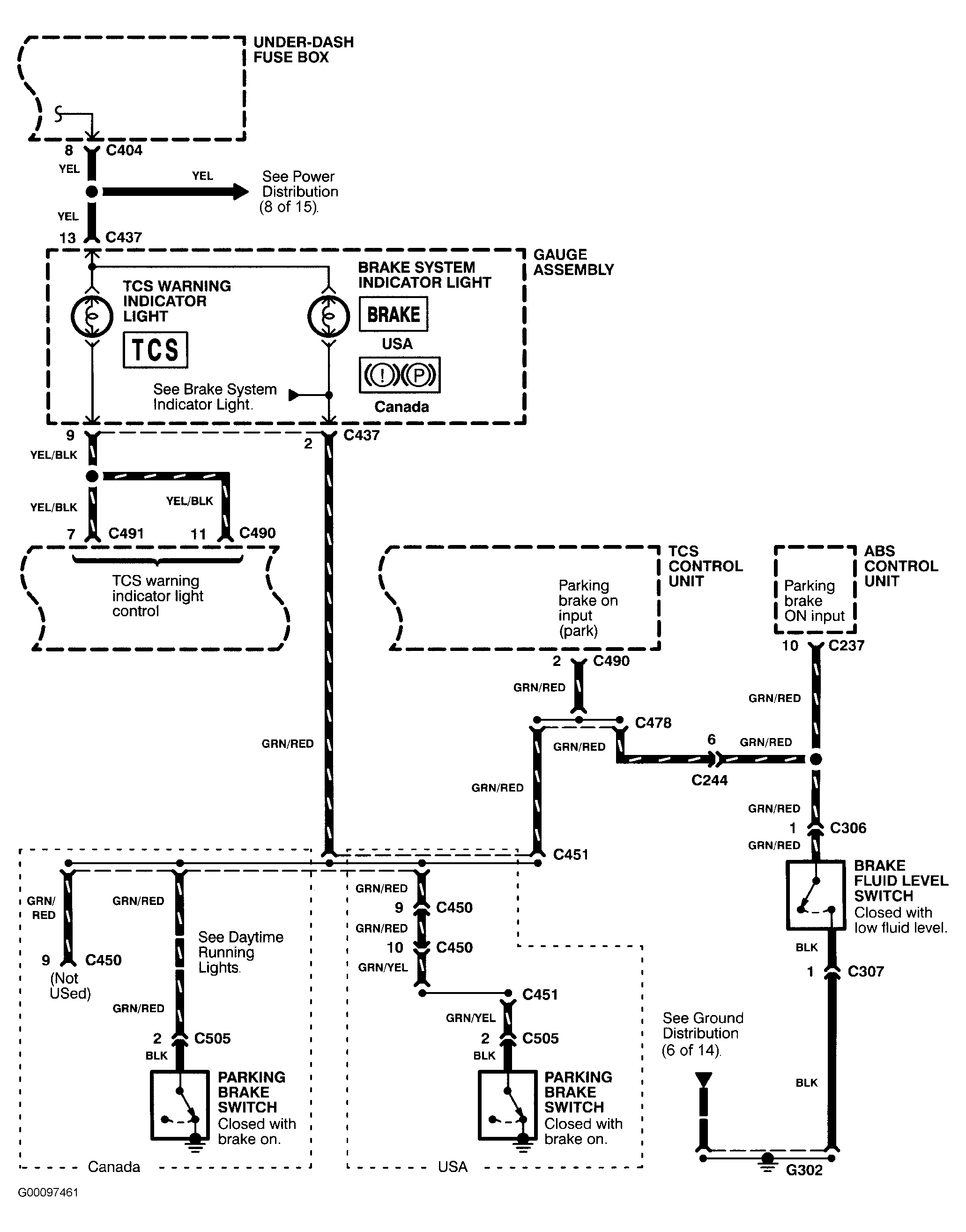

Fig 1: Traction Control System (TCS) (1 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

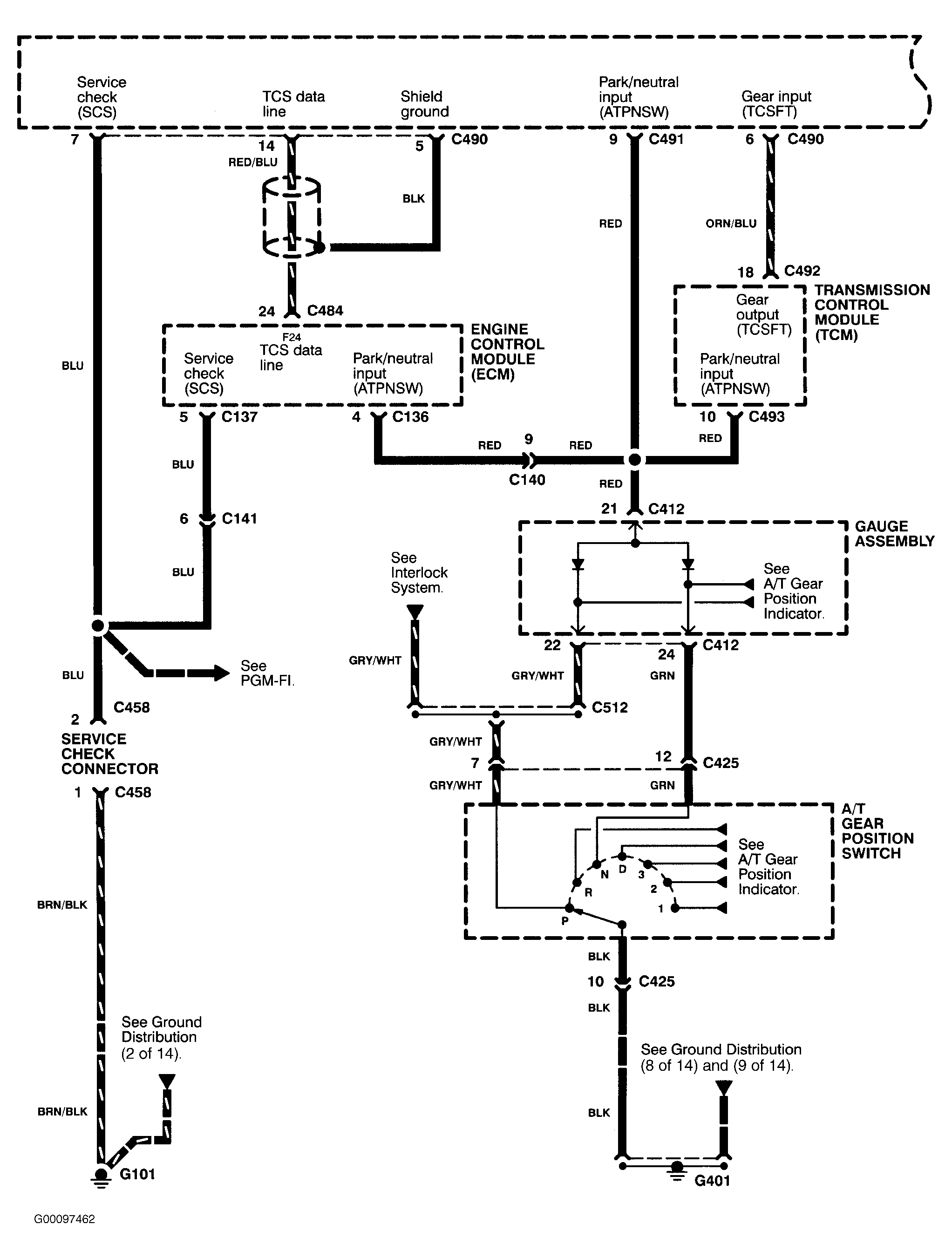

Fig 2: Traction Control System (TCS) (2 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

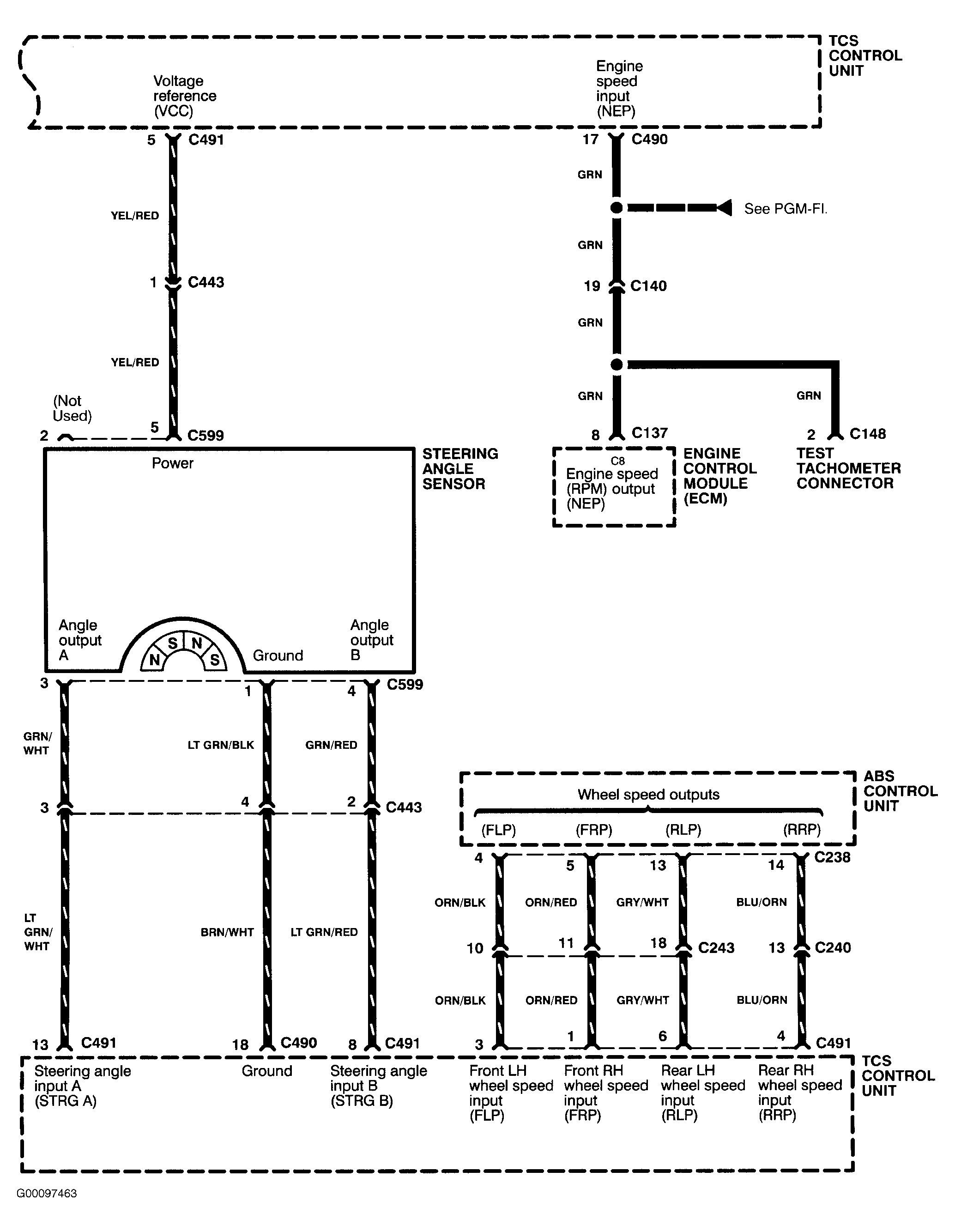

Fig 3: Traction Control System (TCS) (3 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 4: Traction Control System (TCS) (4 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
